What is Tata Winger School 13 Seater gradeability ?

Gradeability of any truck defines its ability to climb upward slopes. The gradeability of Tata Winger School 13 Seater is .

What is the engine capacity of Tata Winger School 13 Seater van ?

Tata Winger School 13 Seater comes with 4 cylinder 2.2L DICOR engine and the engine displacement is 2179 cc

Tata Winger DICOR : School 13 Seater BS6 specifications

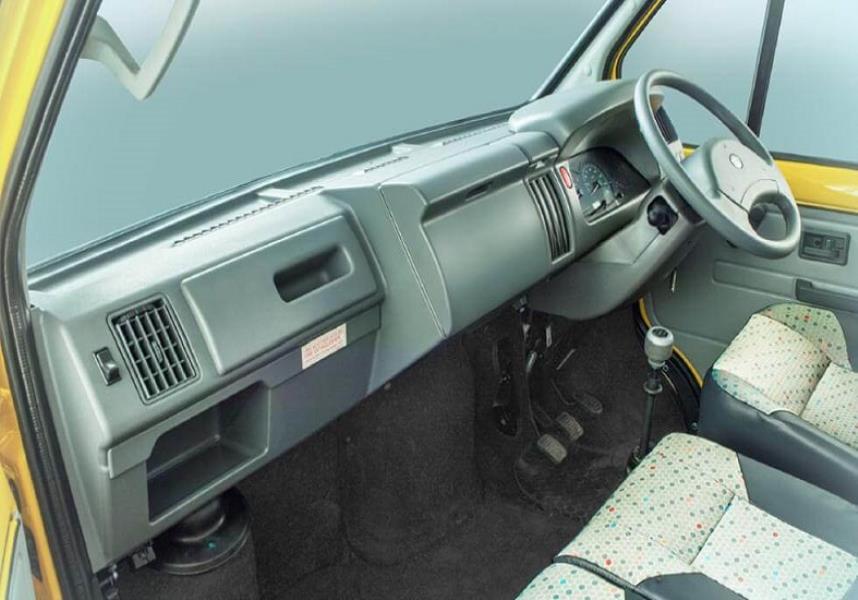

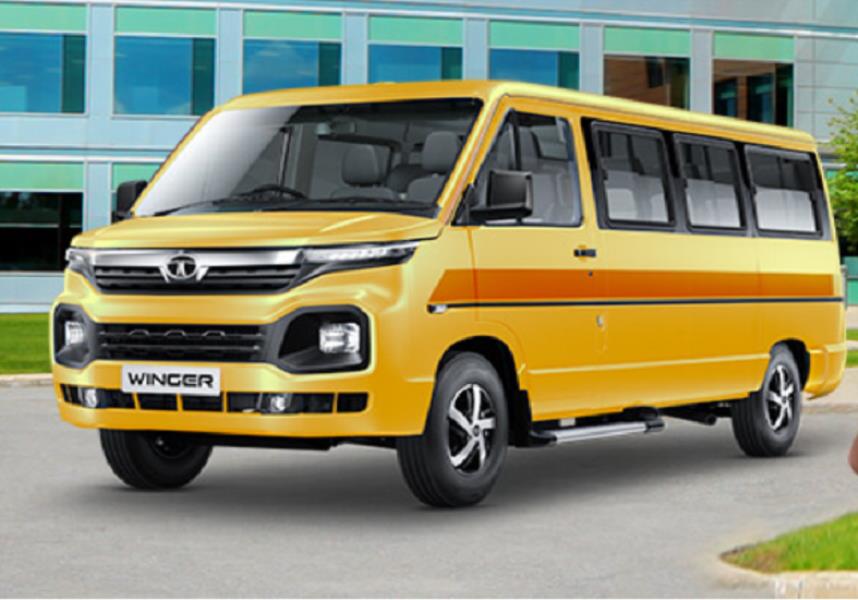

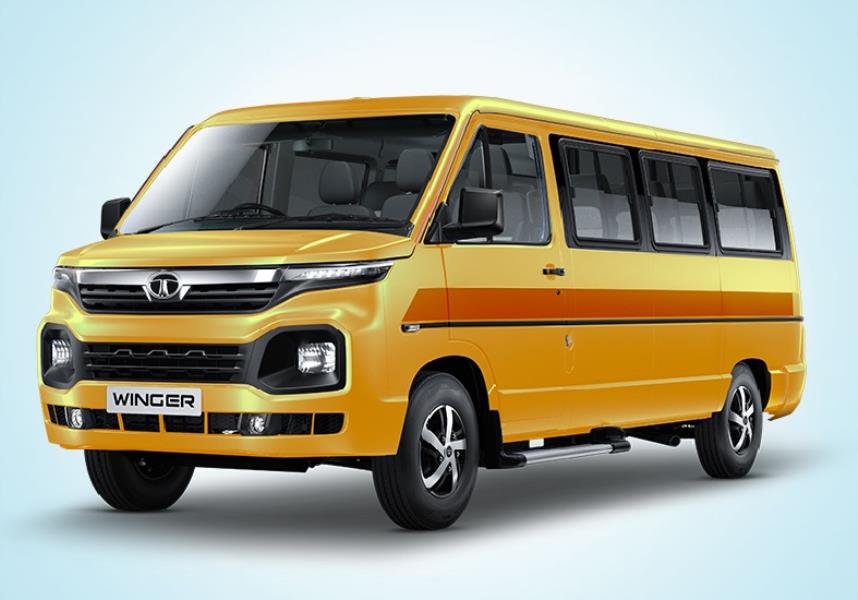

Tata Winger DICOR : School 13 Seater Van Images

Rate This Vehicle

From ₹ 15.54 Lakh* Onwards
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on Tata Winger DICOR : School 13 Seater Van for this month

Tata Winger School 13 Seater - 4 Wheeler Highlights

Power

GVW

3000 Kg

Fuel

Diesel

Engine

2179 cc

Cylinders

Key Specifications of Tata Winger DICOR : School 13 Seater Van

Engine
Configuration

Tata Winger DICOR : School 13 Seater Van Engine
Engine
2.2L DICOR
Tata Winger DICOR : School 13 Seater Van Engine Displacement
Engine Displacement
2179 cc
Tata Winger DICOR : School 13 Seater Van Engine Cylinders
Engine Cylinders
4
Tata Winger DICOR : School 13 Seater Van Power
Power
99 HP@4300 rpm
Tata Winger DICOR : School 13 Seater Van Torque
Torque
200 Nm@1250-3500 rpm
Tata Winger DICOR : School 13 Seater Van Clutch
Clutch
215 mm dia dry friction
Tata Winger DICOR : School 13 Seater Van Transmission
Transmission
5 speed (5F+1R)
Tata Winger DICOR : School 13 Seater Van Gearbox
Gearbox
Transaxle with Synchromesh gears
Tata Winger DICOR : School 13 Seater Van Emission Norms Compliance
Emission Norms Compliance
BS6
Tata Winger DICOR : School 13 Seater Van Fuel Type
Fuel Type
Diesel
Tata Winger DICOR : School 13 Seater Van Fuel Tank Capacity
Fuel Tank Capacity
60 Litres

Tata Winger DICOR : School 13 Seater Van GVW
GVW
3000 Kg
Tata Winger DICOR : School 13 Seater Van Seating Capacity
Seating Capacity
13+D
Tata Winger DICOR : School 13 Seater Van Axle Configuration
Axle Configuration
4x2
Front wheel drive
Tata Winger DICOR : School 13 Seater Van Front Axle
Front Axle
Independent with CV Shaft
Tata Winger DICOR : School 13 Seater Van Rear Axle
Rear Axle
Dead axle
Tata Winger DICOR : School 13 Seater Van Front Suspension
Front Suspension
McPherson struts with coil spring
Tata Winger DICOR : School 13 Seater Van Rear Suspension
Rear Suspension
Parabolic Leaf Spring
With telescopic shock absorbers
Tata Winger DICOR : School 13 Seater Van Anti Roll Bar
Anti Roll Bar
Front and rear
Tata Winger DICOR : School 13 Seater Van Tyres

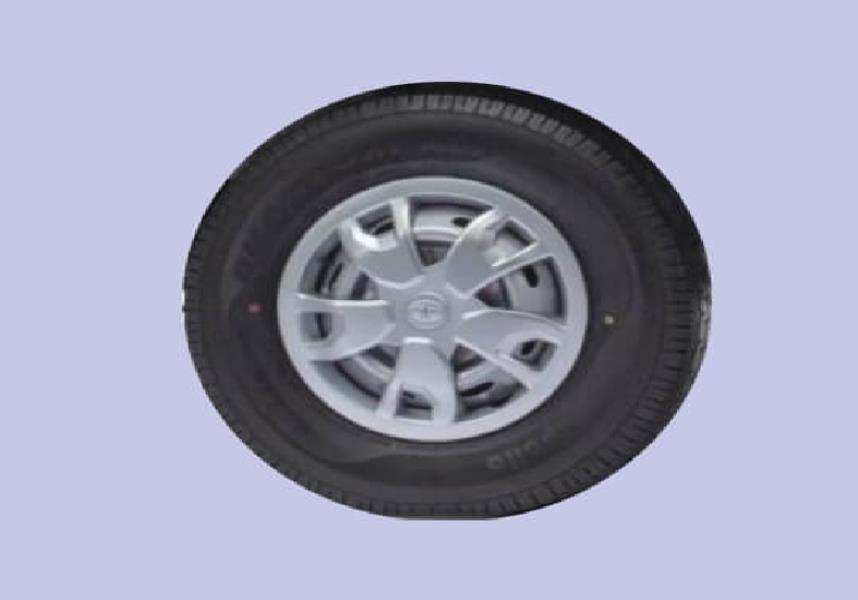

Tyres
195 R15
Tata Winger DICOR : School 13 Seater Van Wheelbase
Wheelbase
2800 mm
Tata Winger DICOR : School 13 Seater Van Turning Circle Diameter
Turning Circle Diameter
12.8 m
Tata Winger DICOR : School 13 Seater Van Ground Clearance
Ground Clearance
180 mm
Tata Winger DICOR : School 13 Seater Van Overall Length
Overall Length
4520 mm
Tata Winger DICOR : School 13 Seater Van Overall Width
Overall Width
1905 mm
Tata Winger DICOR : School 13 Seater Van Overall Height
Overall Height
2100 mm
Tata Winger DICOR : School 13 Seater Van Front Track
Front Track
1560 mm
Tata Winger DICOR : School 13 Seater Van Rear Track
Rear Track
1526 mm
Tata Winger DICOR : School 13 Seater Van Front Overhang
Front Overhang
940 mm
Tata Winger DICOR : School 13 Seater Van Rear Overhang
Rear Overhang
780 mm

Tata Winger DICOR : School 13 Seater Van Specification Highlights

When it comes to Tata Winger School 13 Seater specifications, we can break it into engine performance related parameters and the design related aspectsTata Winger School 13 Seater comes with a 2.2L DICOR diesel engine with 2179 cc displacement Matched with a 5 speed (5F+1R) transmission, superior Tata Winger School 13 Seater mileage and a fuel tank capacity of 60 litres, one can travel miles without refueling This Tata small commercial vehicle comes fitted with tyres of the size 195 r15 offering a superior 180 mm ground clearance.
