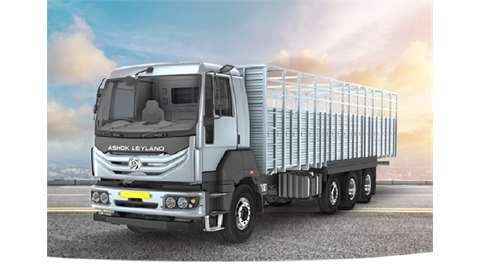

Ashok Leyland 3520 LA BS6 truck specifications

Name: Ashok Leyland 3520 LA
Brand: Ashok Leyland
SKU: TBN-20-0ABD98

Rate This Vehicle

From ₹ 40.88-42.91 Lakh*
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on Ashok Leyland 3520 LA Truck for this month

Download Ashok Leyland 3520 LA Truck Brochure

Check out the Ashok Leyland 3520 LA Truck PDF brochure at TrucksBuses.com with all features and specifications.

Ashok Leyland 3520 LA - 12 Tyre Truck Highlights

Power

200

GVW

35000 Kg

Fuel

Diesel

Engine

5660 cc

Cylinders

Key Specifications of Ashok Leyland 3520 LA Truck

Engine
Configuration

Ashok Leyland 3520 LA Truck Engine
Engine
H series CRS
iGen-6 technology
Ashok Leyland 3520 LA Truck Fuel Injection System
Fuel Injection System
Common Rail
Ashok Leyland 3520 LA Truck Engine Displacement
Engine Displacement
5660 cc
Ashok Leyland 3520 LA Truck Engine Cylinders
Engine Cylinders
6
Ashok Leyland 3520 LA Truck Power
Power
200 HP@2400 rpm
Ashok Leyland 3520 LA Truck Torque
Torque
700 Nm@1200-2000 rpm
Ashok Leyland 3520 LA Truck Clutch
Clutch
380 mm dia
Organic
With clutch booster
Ashok Leyland 3520 LA Truck Transmission
Transmission
6 speed (6F+1R)
8 speed (Optional)
With cable shift
Ashok Leyland 3520 LA Truck Gearbox
Gearbox
ZF 6S 850
Ashok Leyland 3520 LA Truck Gradeability
Gradeability
14.05%
Ashok Leyland 3520 LA Truck Max Speed
Max Speed
80 Kmph
Ashok Leyland 3520 LA Truck Emission Norms Compliance
Emission Norms Compliance
BS6
Ashok Leyland 3520 LA Truck Fuel Type
Fuel Type
Diesel
Ashok Leyland 3520 LA Truck Fuel Tank Capacity
Fuel Tank Capacity
Diesel: 220 / 300 / 375 Litres
Ad Blue: 48 Litres
Polymer tank
Ashok Leyland 3520 LA Truck Electricals Battery
Electricals Battery
24V, 120 Ah / 150 Ah (AC)

Ashok Leyland 3520 LA Truck GVW
GVW
35000 Kg
Ashok Leyland 3520 LA Truck Vehicle Configuration
Vehicle Configuration
Cowl with Chassis
Cabin and chassis
Cabin with load body
Ashok Leyland 3520 LA Truck Load Body Options
Load Body Options
Fixed Side Deck
High Side Deck
Ashok Leyland 3520 LA Truck Loading Span
Loading Span
24 ft
26 ft
28 ft
30 ft
32 ft
Ashok Leyland 3520 LA Truck Cabin Type
Cabin Type
Sleeper cabin
Ashok Leyland 3520 LA Truck Chassis Frame
Chassis Frame
HSS material, bolted construction
Ashok Leyland 3520 LA Truck Axle Configuration
Axle Configuration
8x2
Ashok Leyland 3520 LA Truck Front Axle
Front Axle
Forged I Beam, Reverse Elliot Type
Unitized wheel bearings (Optional)
Ashok Leyland 3520 LA Truck Rear Axle
Rear Axle
Fully floating, Single speed
RAR 5.57 / 5.83
Unitized wheel bearings (Optional)
Ashok Leyland 3520 LA Truck Front Suspension
Front Suspension
Semi elliptical leaf springs
Parabolic leaf spring (Optional)
Ashok Leyland 3520 LA Truck Rear Suspension
Rear Suspension
Semi elliptical leaf springs
Parabolic helper spring
Slipper suspension (Optional)
Ashok Leyland 3520 LA Truck Anti Roll Bar
Anti Roll Bar
Optional in front
Ashok Leyland 3520 LA Truck Tyres
Tyres
295/90R20 (Tube)
12+1 tyres
Ashok Leyland 3520 LA Truck Wheelbase
Wheelbase
5750 mm
6300 mm
6600 mm
Ashok Leyland 3520 LA Truck Turning Circle Diameter
Turning Circle Diameter
19.6 m (24 ft)
20.7 m (26 ft)
22.7 m (28 ft)
23.7 m (30 / 32 ft)
Ashok Leyland 3520 LA Truck Ground Clearance
Ground Clearance
253 mm
Ashok Leyland 3520 LA Truck Overall Length
Overall Length
9710 mm (24 ft body)
10360 mm (26 ft)
10960 mm (28 ft)
11560 mm (30 ft)
11960 mm (32 ft)
Ashok Leyland 3520 LA Truck Overall Width
Overall Width
2570 mm
Ashok Leyland 3520 LA Truck Overall Height
Overall Height
3145 mm (M Cabin)
3165 mm (U Cabin)
3110 mm (N Cabin)
Ashok Leyland 3520 LA Truck Front Overhang
Front Overhang
1550 mm
Ashok Leyland 3520 LA Truck Front Track
Front Track
2084 mm
Ashok Leyland 3520 LA Truck Rear Track
Rear Track
1876 mm
Ashok Leyland 3520 LA Truck Chassis Depth
Chassis Depth
275 mm
Ashok Leyland 3520 LA Truck Chassis Flange width
Chassis Flange width
75 mm
Ashok Leyland 3520 LA Truck Chassis Thickness
Chassis Thickness
7 / 8 / 8+6 mm

Ashok Leyland 3520 LA Truck Specification Highlights

Check all the Ashok Leyland 3520 LA specifications on TrucksBuses in the table above The main driveline of this Ashok Leyland truck includes a 5660 cc 6 cylinder engine that produces a maximum power of 200 HP and a torque of 700 Nm It gets mated to 6 speed (6F+1R), 8 speed (Optional), With cable shift, ZF 6S 850 gearbox A gross weight of 35000 kg and multiple configurations allows the owner to carry multiple kinds of goods as per requirement There are multiple features in this Ashok Leyland truck for enhancing driver comfort Other Ashok Leyland 3520 LA truck specifications like chassis, tyre, axle, turning circle dia, engine cc, gradeability are available here in the tables above.
