Ashok Leyland Ecomet 1212 Smart truck specifications

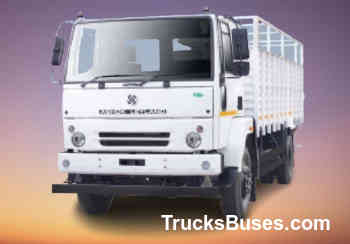

Ashok Leyland Ecomet 1212 Smart Truck Images

Rate This Vehicle

From ₹ 12.6 Lakh* Onwards
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on Ashok Leyland Ecomet 1212 Smart Truck for this month

Download Ashok Leyland Ecomet 1212 Smart Truck Brochure

Check out the Ashok Leyland Ecomet 1212 Smart Truck PDF brochure at TrucksBuses.com with all features and specifications.

Ashok Leyland Ecomet 1212 Smart - 6 Wheeler Truck Highlights

Power

130

GVW

13800 Kg

Fuel

Diesel

Engine

3839 cc

Cylinders

Key Specifications of Ashok Leyland Ecomet 1212 Smart Truck

Engine
Configuration

Ashok Leyland Ecomet 1212 Smart Truck Engine
Engine
H Series 4 cylinder CRS
EGR Technology
Ashok Leyland Ecomet 1212 Smart Truck Fuel Injection System
Fuel Injection System
Common rail
Ashok Leyland Ecomet 1212 Smart Truck Engine Displacement
Engine Displacement
3839 cc
Ashok Leyland Ecomet 1212 Smart Truck Engine Cylinders
Engine Cylinders
4
Ashok Leyland Ecomet 1212 Smart Truck Power
Power
130 HP@2400 rpm
Ashok Leyland Ecomet 1212 Smart Truck Torque
Torque
450 Nm@1250-2000 rpm
Ashok Leyland Ecomet 1212 Smart Truck Clutch
Clutch
330 mm dia
Hydraulic actualtion
Ashok Leyland Ecomet 1212 Smart Truck Transmission
Transmission
6 speed manual (6F+1R)
Ashok Leyland Ecomet 1212 Smart Truck Gearbox
Gearbox
Synchromesh
Ashok Leyland Ecomet 1212 Smart Truck Emission Norms Compliance
Emission Norms Compliance
BSIV
Ashok Leyland Ecomet 1212 Smart Truck Fuel Type
Fuel Type
Diesel
Ashok Leyland Ecomet 1212 Smart Truck Fuel Tank Capacity
Fuel Tank Capacity
200 Litres
115 Litres (2850 wb)
Ashok Leyland Ecomet 1212 Smart Truck Electricals Battery
Electricals Battery
12V, 100 Ah

Ashok Leyland Ecomet 1212 Smart Truck GVW
GVW
13800 Kg
Ashok Leyland Ecomet 1212 Smart Truck Vehicle Configuration
Vehicle Configuration
Cabin and chassis
Cabin with load body options
Ashok Leyland Ecomet 1212 Smart Truck Loading Span
Loading Span
11.4 ft
14 ft
17 ft
19 ft
Ashok Leyland Ecomet 1212 Smart Truck Cabin Type
Cabin Type
Day cab
Ashok Leyland Ecomet 1212 Smart Truck Cabin Tilt mechanism
Cabin Tilt mechanism
Manually tiltable
Ashok Leyland Ecomet 1212 Smart Truck Chassis Frame
Chassis Frame
All steel ladder type
With bolted construction
Ashok Leyland Ecomet 1212 Smart Truck Axle Configuration
Axle Configuration
4x2
Ashok Leyland Ecomet 1212 Smart Truck Front Axle
Front Axle
I section, Reverse Elliot Type
Ashok Leyland Ecomet 1212 Smart Truck Rear Axle
Rear Axle
Hypoid axle
Ashok Leyland Ecomet 1212 Smart Truck Front Suspension
Front Suspension
Shackle ended leaf spring
Ashok Leyland Ecomet 1212 Smart Truck Rear Suspension
Rear Suspension
Shackle ended leaf spring
Ashok Leyland Ecomet 1212 Smart Truck Tyres
Tyres
8.25R20â€“16 PR
Radial tyres
6+1 tyres
Ashok Leyland Ecomet 1212 Smart Truck Wheelbase
Wheelbase
2850 mm
3250 mm
3970 mm
4200 mm
Ashok Leyland Ecomet 1212 Smart Truck Turning Circle Diameter
Turning Circle Diameter
10.7 m (2850 wb)
14 m (3250 wb)
16.4 m (3970 mm)
17 m (4200 mm)
Ashok Leyland Ecomet 1212 Smart Truck Ground Clearance
Ground Clearance
210 mm
Ashok Leyland Ecomet 1212 Smart Truck Overall Length
Overall Length
5332 mm (2850 wb)
6168 mm (3250 wb)
7088 mm (3970 mm)
7663 mm (4200 mm)
Ashok Leyland Ecomet 1212 Smart Truck Load Body Width
Load Body Width
2260 mm (7.5 ft)
Ashok Leyland Ecomet 1212 Smart Truck Front Overhang
Front Overhang
1338 mm
Ashok Leyland Ecomet 1212 Smart Truck Front Track
Front Track
1946 mm
Ashok Leyland Ecomet 1212 Smart Truck Rear Track
Rear Track
1675 mm

Ashok Leyland Ecomet 1212 Smart Truck Specification Highlights

Check all the Ashok Leyland Ecomet 1212 Smart specifications on TrucksBuses in the table above The main driveline of this Ashok Leyland truck includes a 3839 cc 4 cylinder engine that produces a maximum power of 130 HP and a torque of 450 Nm It gets mated to 6 speed manual (6F+1R), Synchromesh gearbox A gross weight of 13800 kg and multiple configurations allows the owner to carry multiple kinds of goods as per requirement There are multiple features in this Ashok Leyland truck for enhancing driver comfort Other Ashok Leyland Ecomet 1212 Smart truck specifications like chassis, tyre, axle, turning circle dia, engine cc, gradeability are available here in the tables above.
