Ashok Leyland Ecomet 1615 Star CNG truck specifications

Name: Ashok Leyland Ecomet 1615 Star CNG
Brand: Ashok Leyland
SKU: TBN-20-E2857D

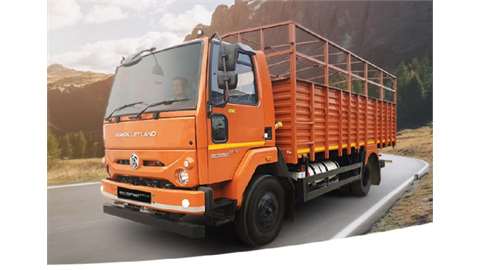

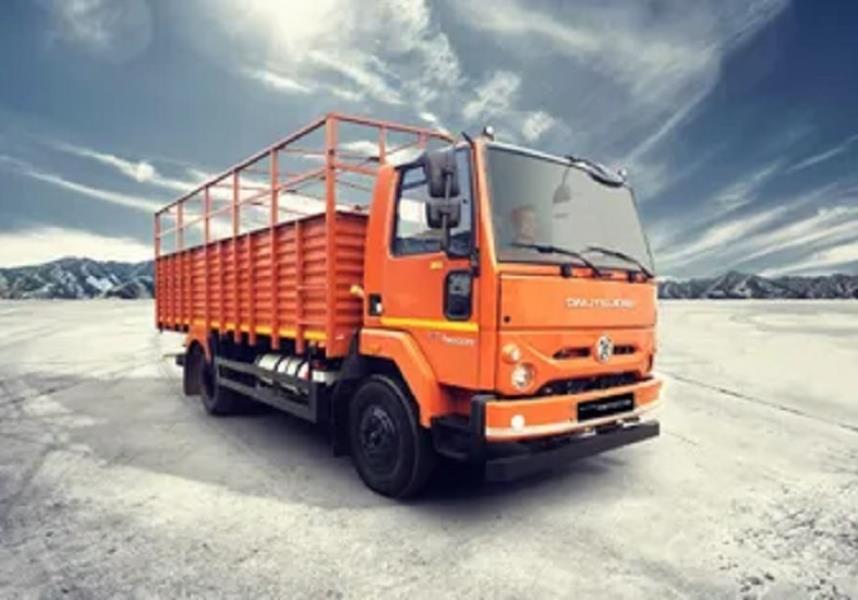

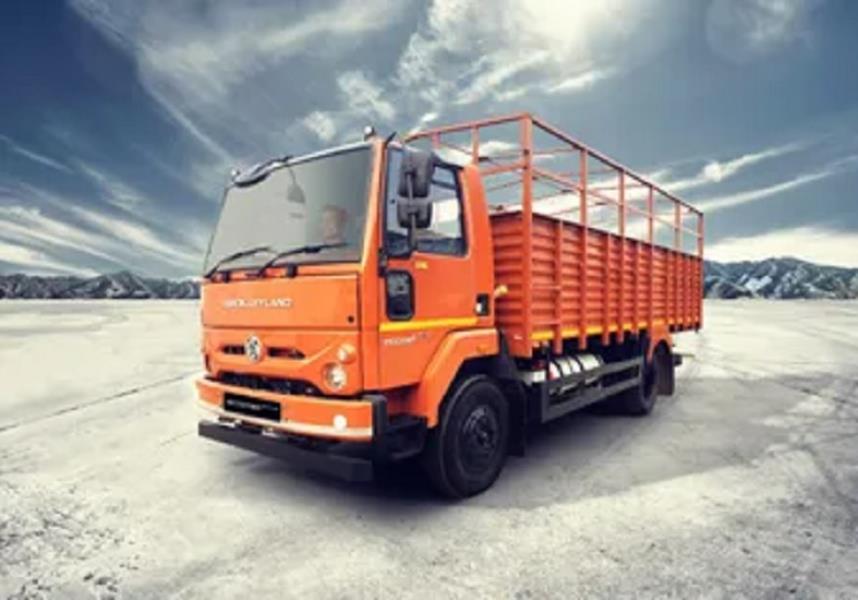

Ashok Leyland Ecomet 1615 Star CNG Truck Images

Rate This Vehicle

From ₹ 27.10-28.40 Lakh*
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on Ashok Leyland Ecomet 1615 Star CNG Truck for this month

Download Ashok Leyland Ecomet 1615 Star CNG Truck Brochure

Check out the Ashok Leyland Ecomet 1615 Star CNG Truck PDF brochure at TrucksBuses.com with all features and specifications.

Ashok Leyland Ecomet 1615 Star CNG - 6 Wheeler Truck Highlights

Power

144

GVW

16100 Kg

Fuel

CNG

Engine

3839 cc

Cylinders

Key Specifications of Ashok Leyland Ecomet 1615 Star CNG Truck

Engine
Configuration

Ashok Leyland Ecomet 1615 Star CNG Truck Engine
Engine
H4 3.8L TCIC
Ashok Leyland Ecomet 1615 Star CNG Truck Fuel Injection System
Fuel Injection System
Common Rail
Ashok Leyland Ecomet 1615 Star CNG Truck Engine Displacement
Engine Displacement
3839 cc
Ashok Leyland Ecomet 1615 Star CNG Truck Engine Cylinders
Engine Cylinders
4
Ashok Leyland Ecomet 1615 Star CNG Truck Power
Power
144 HP@2400 rpm
Ashok Leyland Ecomet 1615 Star CNG Truck Torque
Torque
450 Nm@1200-2200 rpm
Ashok Leyland Ecomet 1615 Star CNG Truck Clutch
Clutch

330 mm dia
With clutch booster
Unilever clutch actuation
Ashok Leyland Ecomet 1615 Star CNG Truck Transmission
Transmission
6 speed (6F+1R)
With cable shift
Ashok Leyland Ecomet 1615 Star CNG Truck Gearbox
Gearbox
ZF6S36 Overdrive
Ashok Leyland Ecomet 1615 Star CNG Truck Max Speed
Max Speed
80 Kmph
Ashok Leyland Ecomet 1615 Star CNG Truck Emission Norms Compliance
Emission Norms Compliance
BS6
Ashok Leyland Ecomet 1615 Star CNG Truck Fuel Type
Fuel Type
CNG
Ashok Leyland Ecomet 1615 Star CNG Truck Fuel Tank Capacity
Fuel Tank Capacity
360 / 480 / 570 Litres
Ashok Leyland Ecomet 1615 Star CNG Truck Electricals Battery
Electricals Battery
12V, 120 Ah
Alternator: 90 Amps

Ashok Leyland Ecomet 1615 Star CNG Truck GVW
GVW
16100 Kg
Ashok Leyland Ecomet 1615 Star CNG Truck Payload
Payload
10.59 Ton
Ashok Leyland Ecomet 1615 Star CNG Truck Vehicle Configuration
Vehicle Configuration
Cabin and chassis
Cabin with load body
Ashok Leyland Ecomet 1615 Star CNG Truck Load Body Options
Load Body Options
Fixed Side Deck
Drop Side Deck
High Side Deck
Ashok Leyland Ecomet 1615 Star CNG Truck Loading Span
Loading Span
17 ft
20 ft
22 ft
24 ft
Ashok Leyland Ecomet 1615 Star CNG Truck Cabin Type
Cabin Type
Day cab
Ashok Leyland Ecomet 1615 Star CNG Truck Cabin Tilt mechanism
Cabin Tilt mechanism
Manually tiltable
Ashok Leyland Ecomet 1615 Star CNG Truck Chassis Frame
Chassis Frame
Bolted ladder type
BSK 46
Ashok Leyland Ecomet 1615 Star CNG Truck Axle Configuration
Axle Configuration
4x2
Ashok Leyland Ecomet 1615 Star CNG Truck Front Axle
Front Axle
Forged I Beam, Reverse Elliot Type
Ashok Leyland Ecomet 1615 Star CNG Truck Rear Axle
Rear Axle
Fully floating single speed
Hypoid axle
Ashok Leyland Ecomet 1615 Star CNG Truck Front Suspension
Front Suspension
Semi elliptical leaf springs
Ashok Leyland Ecomet 1615 Star CNG Truck Rear Suspension
Rear Suspension
Semi elliptical leaf springs
With helper springs
Ashok Leyland Ecomet 1615 Star CNG Truck Tyres
Tyres
9R20 - 16 PR
6+1 tyres
Ashok Leyland Ecomet 1615 Star CNG Truck Wheelbase
Wheelbase
3970 mm
4200 mm
4750 mm
5200 mm
Ashok Leyland Ecomet 1615 Star CNG Truck Turning Circle Diameter
Turning Circle Diameter
14.7 m (17 ft body)
17 m (19/20 ft)
18.5 m (22 ft)
19.1 m (24 ft)
Ashok Leyland Ecomet 1615 Star CNG Truck Ground Clearance
Ground Clearance
232 mm
Ashok Leyland Ecomet 1615 Star CNG Truck Overall Length
Overall Length
7088 mm (17 ft)
7663 mm (19 ft)
8058 mm (20 ft)
8558 mm (22 ft)
9393 mm (24 ft)
Ashok Leyland Ecomet 1615 Star CNG Truck Overall Width
Overall Width
2480 mm (body)
Ashok Leyland Ecomet 1615 Star CNG Truck Overall Height
Overall Height
3230 mm
Ashok Leyland Ecomet 1615 Star CNG Truck Front Track
Front Track
1964 mm
Ashok Leyland Ecomet 1615 Star CNG Truck Rear Track
Rear Track
1816 mm
Ashok Leyland Ecomet 1615 Star CNG Truck Chassis Depth
Chassis Depth
204 mm
Ashok Leyland Ecomet 1615 Star CNG Truck Chassis Flange width
Chassis Flange width
76 mm
Ashok Leyland Ecomet 1615 Star CNG Truck Chassis Thickness
Chassis Thickness
6 mm

Ashok Leyland Ecomet 1615 Star CNG Truck Specification Highlights

Check all the Ashok Leyland Ecomet 1615 Star CNG specifications on TrucksBuses in the table above The main driveline of this Ashok Leyland truck includes a 3839 cc 4 cylinder engine that produces a maximum power of 144 HP and a torque of 450 Nm It gets mated to 6 speed (6F+1R), With cable shift, ZF6S36 Overdrive gearbox A gross weight of 16100 kg and multiple configurations allows the owner to carry multiple kinds of goods as per requirement There are multiple features in this Ashok Leyland truck for enhancing driver comfort Other Ashok Leyland Ecomet 1615 Star CNG truck specifications like chassis, tyre, axle, turning circle dia, engine cc, gradeability are available here in the tables above.
