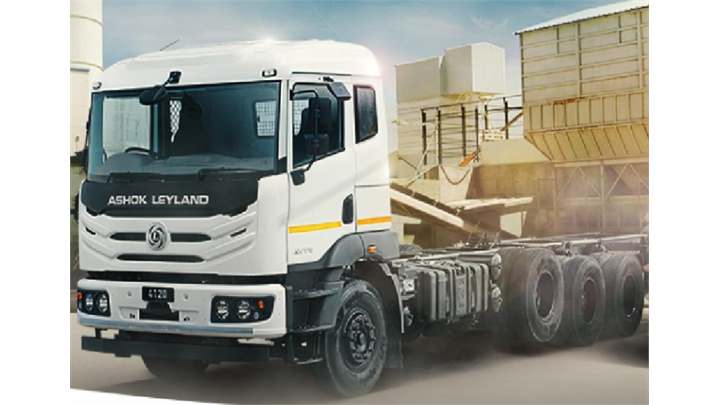

Ashok Leyland U4125 truck specifications

Name: Ashok Leyland U4125
Brand: Ashok Leyland
SKU: TBN-20-295DC9

Rate This Vehicle

From ₹ 37.10-39.10 Lakh*
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on Ashok Leyland U4125 Truck for this month

Ashok Leyland U4125 - 14 Wheeler Truck Highlights

Power

250

GVW

40500 Kg

Fuel

Diesel

Engine

5660 cc

Cylinders

Key Specifications of Ashok Leyland U4125 Truck

Engine
Configuration

Ashok Leyland U4125 Truck Engine
Engine
H series CRS
iGen-6 technology
Ashok Leyland U4125 Truck Fuel Injection System
Fuel Injection System
Common Rail
Ashok Leyland U4125 Truck Engine Displacement
Engine Displacement
5660 cc
Ashok Leyland U4125 Truck Engine Cylinders
Engine Cylinders
6
Ashok Leyland U4125 Truck Power
Power
250 HP
Ashok Leyland U4125 Truck Torque
Torque
900 Nm
Ashok Leyland U4125 Truck Clutch
Clutch
380 mm dia
Organic
With clutch booster
Ashok Leyland U4125 Truck Transmission
Transmission
9 speed (9F+1R)
With cable shift
Ashok Leyland U4125 Truck Gearbox
Gearbox
ZF 9S 1110
Ashok Leyland U4125 Truck Max Speed
Max Speed
80 Kmph
Ashok Leyland U4125 Truck Emission Norms Compliance
Emission Norms Compliance
BS6
Ashok Leyland U4125 Truck Fuel Type
Fuel Type
Diesel
Ashok Leyland U4125 Truck Fuel Tank Capacity
Fuel Tank Capacity
Diesel: 220 / 300 / 375 Litres
Ad Blue: 48 Litres
Polymer tank
Ashok Leyland U4125 Truck Electricals Battery
Electricals Battery
24V, 120 Ah / 150 Ah (AC)

Ashok Leyland U4125 Truck GVW
GVW
40500 Kg
Ashok Leyland U4125 Truck Vehicle Configuration
Vehicle Configuration
Cabin and chassis
Cabin with load body
Ashok Leyland U4125 Truck Load Body Options
Load Body Options
Fixed Side Deck
High Side Deck
Ashok Leyland U4125 Truck Loading Span
Loading Span
24 ft
26 ft
28 ft
30 ft
32 ft
Ashok Leyland U4125 Truck Cabin Type
Cabin Type
Sleeper cabin
Ashok Leyland U4125 Truck Cabin Tilt mechanism
Cabin Tilt mechanism
Hydraulically tiltable
Ashok Leyland U4125 Truck Chassis Frame
Chassis Frame
HSS material, bolted construction
Ashok Leyland U4125 Truck Axle Configuration
Axle Configuration
8x2
Ashok Leyland U4125 Truck Front Axle
Front Axle
Forged I Beam, Reverse Elliot Type
Ashok Leyland U4125 Truck Rear Axle
Rear Axle
Dual tyre lift axle
Ashok Leyland U4125 Truck Front Suspension
Front Suspension
Semi elliptical leaf springs
Parabolic leaf spring (Optional)
Ashok Leyland U4125 Truck Rear Suspension
Rear Suspension
Semi elliptical leaf springs
Slipper suspension (Optional)
Ashok Leyland U4125 Truck Anti Roll Bar
Anti Roll Bar
Optional in front
Ashok Leyland U4125 Truck Tyres
Tyres
295/90R20 (Tube)
12+1 tyres
Ashok Leyland U4125 Truck Wheelbase
Wheelbase
5750 mm
6300 mm
6600 mm
Ashok Leyland U4125 Truck Turning Circle Diameter
Turning Circle Diameter
19.6 m (24 ft)
20.7 m (26 ft)
22.7 m (28 ft)
23.7 m (30 / 32 ft)
Ashok Leyland U4125 Truck Ground Clearance
Ground Clearance
253 mm
Ashok Leyland U4125 Truck Overall Length
Overall Length
9710 mm (24 ft body)
10360 mm (26 ft)
10960 mm (28 ft)
11560 mm (30 ft)
11960 mm (32 ft)
Ashok Leyland U4125 Truck Overall Width
Overall Width
2570 mm
Ashok Leyland U4125 Truck Overall Height
Overall Height
3165 mm
Ashok Leyland U4125 Truck Front Overhang
Front Overhang
1550 mm
Ashok Leyland U4125 Truck Front Track
Front Track
2084 mm
Ashok Leyland U4125 Truck Rear Track
Rear Track
1876 mm

Ashok Leyland U4125 Truck Specification Highlights

The latest specifications of the Ashok Leyland U4125 truck include a common rail fuel injection system and a 380-millimeter diameter organic clutch with a clutch booster. The 12 wheeler Ashok Leyland U4125 truck also has H series CRS and iGen-6 technology engine with 5660 ccc engine displacement and 250 HP of power. The Leyland U4125 truck has a fixed side deck and high side deck, and a sleeper cabin. The front and rear suspension of Ashok Leyland truck has semi-elliptical leaf springs. 12 tyres Ashok Leyland U4125 gross vehicle weight is 40500 kilograms with multiple options of loading span size such as 24 feet, 26 feet, 28 feet, 32 feet and 30 feet. You can also check the other specification here in the table above.
