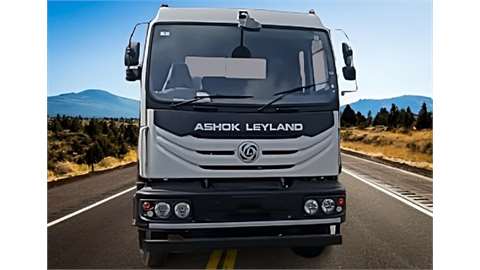

Ashok Leyland U4825 truck specifications

Name: Ashok Leyland U4825
Brand: Ashok Leyland
SKU: TBN-20-D40B0A

Rate This Vehicle

From ₹ 48.30-52.35 Lakh*
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on Ashok Leyland U4825 Truck for this month

Ashok Leyland U4825 - 16 Tyre Truck Highlights

Power

250

GVW

47500 Kg

Fuel

Diesel

Engine

5660 cc (H Series engine)# 5300 cc (A Series engine)

Cylinders

6 cylinder (H series engine)# 4 cylinder (A series engine)

Key Specifications of Ashok Leyland U4825 Truck

Engine
Configuration

Ashok Leyland U4825 Truck Engine
Engine
H / A series CRS
iGen-6 technology
Ashok Leyland U4825 Truck Fuel Injection System
Fuel Injection System
Common Rail
Ashok Leyland U4825 Truck Engine Displacement
Engine Displacement
5660 cc (H Series engine)
5300 cc (A Series engine)
Ashok Leyland U4825 Truck Engine Cylinders
Engine Cylinders
6 cylinder (H series engine)
4 cylinder (A series engine)
Ashok Leyland U4825 Truck Power
Power
250 HP
Ashok Leyland U4825 Truck Torque
Torque
900 Nm
Ashok Leyland U4825 Truck Clutch
Clutch
380 mm dia (with H series engine)
395 mm dia (with A series engine)
With clutch booster
Ashok Leyland U4825 Truck Transmission
Transmission
9 speed (9F+1R)
With cable shift
Ashok Leyland U4825 Truck Gearbox
Gearbox
ZF 9S 1110
Ashok Leyland U4825 Truck Max Speed
Max Speed
80 Kmph
Ashok Leyland U4825 Truck Emission Norms Compliance
Emission Norms Compliance
BS6
Ashok Leyland U4825 Truck Fuel Type
Fuel Type
Diesel
Ashok Leyland U4825 Truck Fuel Tank Capacity
Fuel Tank Capacity
Diesel: 220 / 300 / 375 Litres
Ad Blue: 48 Litres
Polymer tank
Ashok Leyland U4825 Truck Electricals Battery
Electricals Battery
24V, 120 Ah / 150 Ah (AC)

Ashok Leyland U4825 Truck GVW
GVW
47500 Kg
Ashok Leyland U4825 Truck Vehicle Configuration
Vehicle Configuration
Cabin and chassis
Cabin with load body
Ashok Leyland U4825 Truck Load Body Options
Load Body Options
Fixed Side Deck
High Side Deck
Ashok Leyland U4825 Truck Loading Span
Loading Span
28 ft
30 ft
Ashok Leyland U4825 Truck Cabin Type
Cabin Type
Sleeper cabin
Ashok Leyland U4825 Truck Cabin Tilt mechanism
Cabin Tilt mechanism
Hydraulically tiltable
Ashok Leyland U4825 Truck Chassis Frame
Chassis Frame
HSS material, bolted construction
Ashok Leyland U4825 Truck Axle Configuration
Axle Configuration
10x2
Ashok Leyland U4825 Truck Front Axle
Front Axle
Forged I Beam, Reverse Elliot Type
Ashok Leyland U4825 Truck Rear Axle
Rear Axle
Fully floating, Single speed
Ashok Leyland U4825 Truck Front Suspension
Front Suspension
Semi elliptical leaf springs
Parabolic leaf spring (Optional)
Ashok Leyland U4825 Truck Rear Suspension
Rear Suspension
Semi elliptical leaf springs
Slipper suspension (Optional)
Ashok Leyland U4825 Truck Anti Roll Bar
Anti Roll Bar
Optional in front
Ashok Leyland U4825 Truck Tyres
Tyres
295/90R20 (Tube)
16+1 tyres
Ashok Leyland U4825 Truck Wheelbase
Wheelbase
6600 mm
Ashok Leyland U4825 Truck Turning Circle Diameter
Turning Circle Diameter
23.7 m
Ashok Leyland U4825 Truck Ground Clearance
Ground Clearance
253 mm
Ashok Leyland U4825 Truck Overall Length
Overall Length
10900 mm (28 ft)
11500 mm (30 ft)
Ashok Leyland U4825 Truck Overall Width
Overall Width
2570 mm
Ashok Leyland U4825 Truck Overall Height
Overall Height
3110 mm
Ashok Leyland U4825 Truck Front Overhang
Front Overhang
1550 mm
Ashok Leyland U4825 Truck Front Track
Front Track
2084 mm
Ashok Leyland U4825 Truck Rear Track
Rear Track
1876 mm
Ashok Leyland U4825 Truck Chassis Depth
Chassis Depth
275 mm
Ashok Leyland U4825 Truck Chassis Flange width
Chassis Flange width
75 mm
Ashok Leyland U4825 Truck Chassis Thickness
Chassis Thickness
8+6 mm

Ashok Leyland U4825 Truck Specification Highlights

The brand new 16 wheeler Ashok Leyland U4825 specifications are important to understand it better. This Ashok Leyland U4825 truck has 6 cylinders with 5660 cc engine displacement of H series engine. The fuel tank is 375 liters and made by polymer tank material. The brand new Ashok Leyland U4825 truck gross vehicle weight is 47500 kilograms. It follows BS6 emission norms and has 26% gradability. The 16 chakka Leyland U4825 truck has a power steering with 9 speed cable shift transmission. The chassis comes with a cabin and it has a deck body option. The loading span of Ashok Leyland truck comes with 28 feet and 30 feet options.
