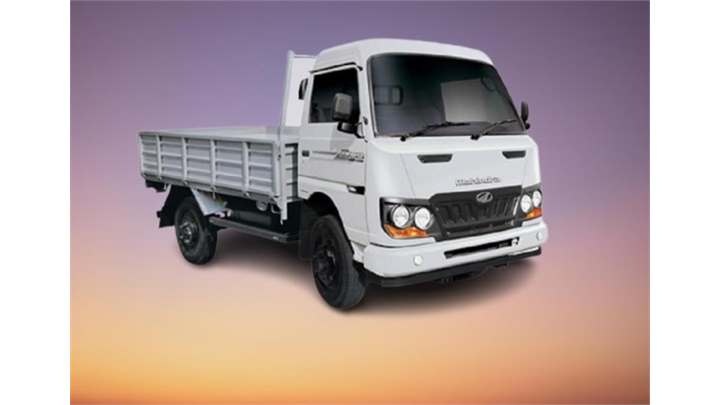

Mahindra DI 3200 Jayo CNG Truck Specifications

*Ex - showroom Price of Mahindra DI 3200 Jayo CNG Truck is 10.20-10.90 Lakh*

From ₹ 10.20-10.90 Lakh*
*Ex-showroom Price


Don't miss out on the best discount offers on Mahindra DI 3200 Jayo CNG Truck for this month

Mahindra DI 3200 Jayo CNG - 4 Tyre Truck Highlights

Power

Mahindra DI 3200 Jayo CNG Truck Power

68
GVW

Mahindra DI 3200 Jayo CNG Truck GVW

4850 Kg
Fuel

Mahindra DI 3200 Jayo CNG Truck Fuel

CNG
Engine

Mahindra DI 3200 Jayo CNG Truck Engine

2500 cc
Cylinders

Mahindra DI 3200 Jayo CNG Truck Cylinders

4

Key Specifications of Mahindra DI 3200 Jayo CNG Truck

  • Engine
    MSI 2.5L CNG
  • Engine Displacement
    2500 cc
  • Engine Cylinders
    4
  • Power
    68 HP@3200 rpm
  • Torque
    182 Nm@1200-2000 rpm
  • Clutch
    240 mm dia
  • Transmission
    5 speed manual (5F+1R)
  • Gearbox
    BD 30
  • Gradeability
    28%
  • Max Speed
    80 Kmph
  • Emission Norms Compliance
    BSIV
  • Fuel Type
    CNG
  • Fuel Tank Capacity
    180 Litres
  • Electricals Battery
    12 V
  • GVW
    4850 Kg
  • Kerb Weight
    2300 Kg
  • Vehicle Configuration
    Cabin and chassis
    Cabin with load body options
  • Loading Span
    9.7 ft
  • Cabin Type
    Day cab
  • Cabin Tilt mechanism
    NA
  • Axle Configuration
    4x2
  • Front Suspension
    Semi elliptical leaf springs
  • Rear Suspension
    Semi elliptical leaf springs
  • Tyres
    7.00x16-14 PR
    4+1 tyres
  • Wheelbase
    2654 mm
  • Turning Circle Diameter
    11.5 m
  • Ground Clearance
    190 mm
  • Chassis Thickness
    5 mm

Mahindra DI 3200 Jayo CNG Truck Specification Highlights

To understand more about the Mahindra DI 3200 Jayo CNG truck then it is important to discuss the engine power and design of the body. This 4-wheeler truck model is available with a cabin, load body, and chassis. It has a ladder-type chassis frame. Semi-elliptical is used in both front and rear suspension in the form of a leaf spring. The wheels of the Mahindra DI 3200 Jayo CNG truck are fitted with tyres of 7. 00x16-14 PR with a ground clearance of 190 mm. Mahindra 4 Wheeler is a truck having 4 cylinders and a 2500 cc MSI 2.5L CNG engine which delivers 68 HP power and 182 Nm maximum torque. It is coupled with a 5-speed, BD 30 gearbox system. It is run on CNG fuel and has a 180-liter fuel tank capacity. The Mahindra DI 3200 Jayo CNG brand truck is compliant with the BS IV emission control standards. The maximum speed that the truck is permitted to travel is 80 kilometers per hour. This results in a wheelbase of 2654 mm which enables this Mahindra truck to provide a load body length that is desirable for various applications.

Frequently Asked Questions on Mahindra DI 3200 Jayo CNG Truck

The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Mahindra DI 3200 Jayo CNG is expected to be around Rs Not Available for a 5 year period

Mahindra DI 3200 Jayo CNG truck comes with a standard warranty of 3 Years / 3 Lakh Km on driveline# 1 Years / 1 Lakh Km on vehicle

GVW of any truck is the sum total of empty kerb weight and the payload it can carry. Mahindra DI 3200 Jayo CNG GVW is 4850 Kg

Mahindra DI 3200 Jayo CNG comes with 4 cylinder MSI 2.5L CNG engine and the engine displacement is 2500 cc

In terms of performance, Mahindra DI 3200 Jayo CNG produces a maximum power of 68 HP@3200 rpm and a maximum torque of 182 Nm@1200-2000 rpm

Mahindra DI 3200 Jayo CNG comes with a 5 speed manual (5F+1R) transmission along with a 240 mm dia clutch

Mahindra DI 3200 Jayo CNG comes with CNG fuel option and its fuel tank capacity is 180 Litres

Gradeability of any truck defines its ability to climb upward slopes. The gradeability of Mahindra DI 3200 Jayo CNG is 28%.

The tyre size of Mahindra DI 3200 Jayo CNG is 7.00x16-14 PR# 4+1 tyres

Mahindra DI 3200 Jayo CNG comes with Hydraulic brakes
