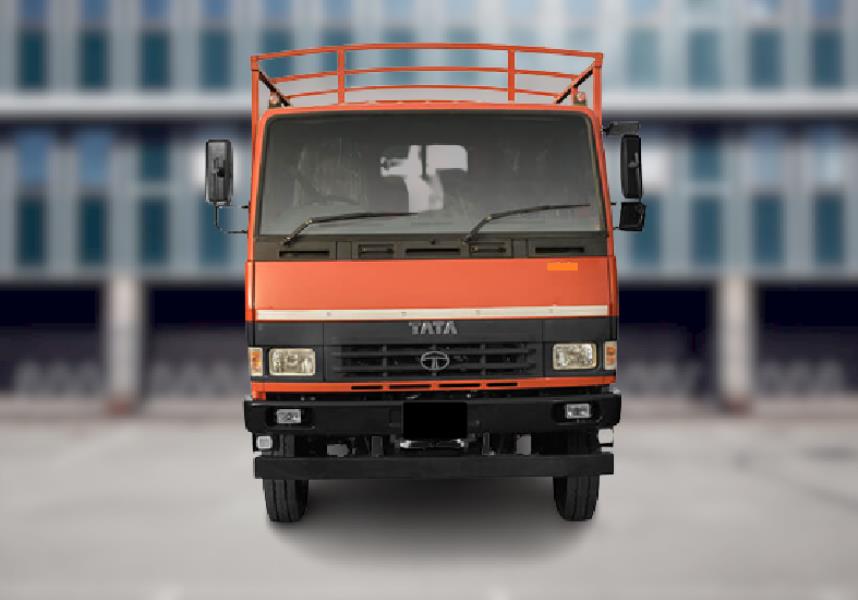

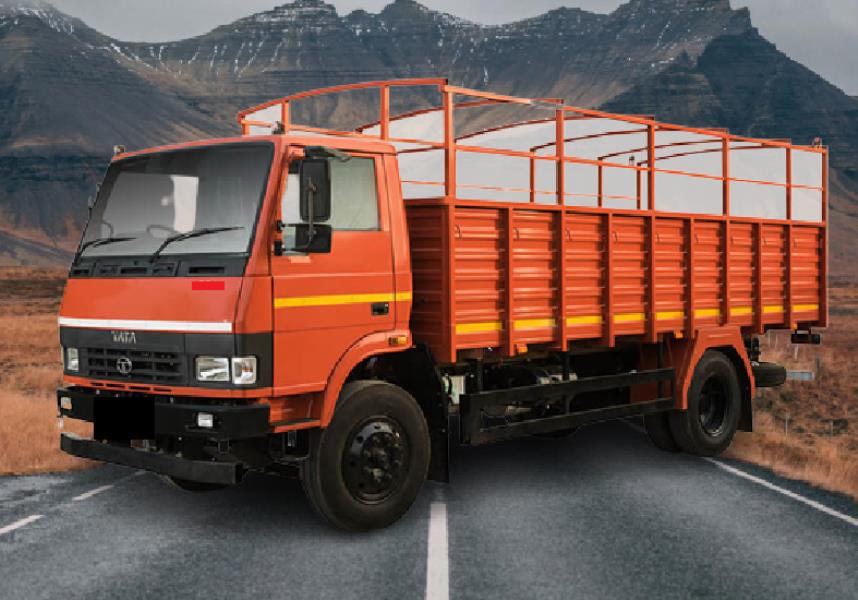

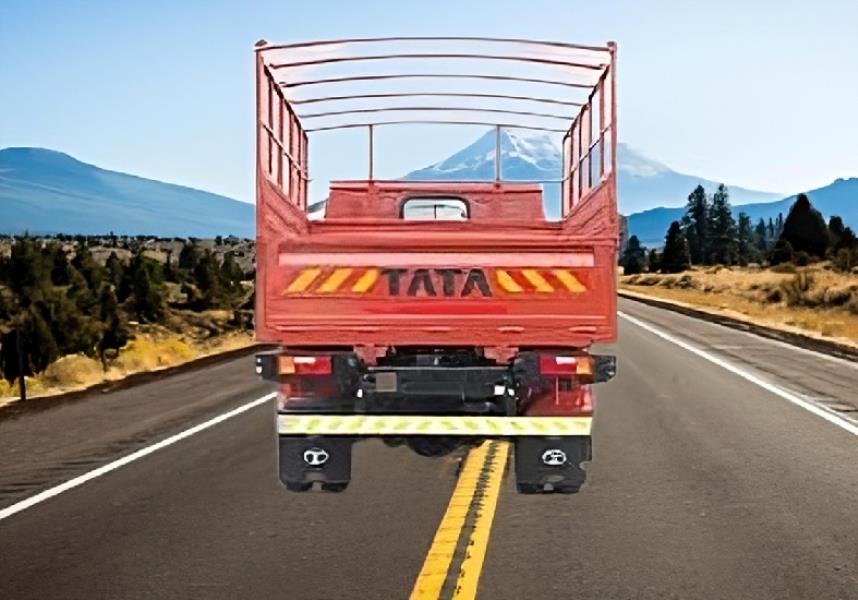

Tata 1216 LPT Truck Specifications

*Ex - showroom Price of Tata 1216 LPT Truck is 23.10-25.43 Lakh*

From ₹ 23.10-25.43 Lakh*
*Ex-showroom Price


Don't miss out on the best discount offers on Tata 1216 LPT Truck for this month

Tata 1216 LPT - 6 Wheeler Truck Highlights

Power

Tata 1216 LPT Truck Power

160
GVW

Tata 1216 LPT Truck GVW

11990 Kg
Fuel

Tata 1216 LPT Truck Fuel

Diesel
Engine

Tata 1216 LPT Truck Engine

3300 cc
Cylinders

Tata 1216 LPT Truck Cylinders

4

Key Specifications of Tata 1216 LPT Truck

  • Engine
    3.3L NG
    With E-viscous fan
    With electronic turbo charger
  • Fuel Injection System
    Common Rail
  • Engine Displacement
    3300 cc
  • Engine Cylinders
    4
  • Power
    160 HP
  • Torque
    450 Nm
  • Transmission
    6 speed (6F+1R)
  • Gearbox
    Synchromesh
    With cable shift
  • Max Speed
    80 Kmph
  • Emission Norms Compliance
    BS6 OBD2
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    Diesel: 160 Litres
    Ad Blue: 25 Litres
  • Electricals Battery
    12V, 100 Ah
    Alternator: 120 Amps
  • GVW
    11990 Kg
  • Payload
    7.5 tons
  • Vehicle Configuration
    Cabin chassis with PTO
    Cabin with load body
  • Load Body Options
    Fixed Side Deck
    High Side Deck
  • Loading Span
    17 ft
    19 ft
    20 ft
    22 ft
    24 ft
  • Cabin Type
    Day cab
  • Chassis Frame
    Ladder type with cross members
  • Axle Configuration
    4x2
  • Front Axle
    Forged I Beam, Reverse Elliot Type
  • Rear Axle
    Fully Floating
  • Front Suspension
    Parabolic leaf springs
    With telescopic shock absorbers
  • Rear Suspension
    Semi elliptical leaf springs
  • Anti Roll Bar
    Yes
  • Tyres
    8.25R20- 16 PR
    245/70R17.5 Tubeless (Optional)
    6+1 tyres
  • Wheelbase
    3600 mm
    4200 mm
    4800 mm
  • Turning Circle Diameter
    14.8 m (3600 wb)
    16.6 m (4200 wb)
    19.2 m (4800 wb)
  • Ground Clearance
    225 mm
  • Overall Length
    7035 mm (3600 wb HSD)
    7995 mm (4200 wb)
    8731 mm (4800 wb)
  • Overall Width
    2315 mm
  • Overall Height
    3100 mm
  • Load Body Width
    2175 mm
  • Chassis Thickness
    7 mm

Tata 1216 LPT Truck Specification Highlights

Here, you come to know about the engine performance and body configuration of this cargo truck. This 6-wheeler cargo truck is empowered by a 4-cylinder electronic turbocharger of 3300 cc displacement engine. It produces a power of 160 horsepower and a maximum torque of 450 Nm. The power transmission of the Tata 1216 LPT cargo truck is managed by a 6-speed gearbox system. The maximum speed of this cargo truck is 80 kilometers per hour. It is available in an axle configuration of 4x2. The front and rear suspensions are coupled with parabolic leaf springs with telescopic shock absorbers and semi-elliptical leaf springs respectively. The wheelbase sizes are 3600 mm, 4200 mm, and 4800 mm and the tyre size is 8.25R20- 16 PR offering a ground clearance of 225 mm. It has a day-cab-type cabin. It follows the BS6 OBD2 emission norms. It runs on diesel fuel with superior mileage. More configurations are mentioned above in the table.

Frequently Asked Questions on Tata 1216 LPT Truck

Tata 1216 LPT price starts from Rs 23.10-25.43 Lakh* . The 2024 price of Tata 1216 LPT can vary slightly from state to state and city to city.

GVW of any truck is the sum total of empty kerb weight and the payload it can carry. Tata 1216 LPT GVW is 11990 Kg

Payload defines the loading capacity of any truck. The payload of Tata 1216 LPT is 7.5 tons

Tata 1216 LPT comes with 4 cylinder 3.3L NG# With E-viscous fan# With electronic turbo charger engine and the engine displacement is 3300 cc

In terms of performance, Tata 1216 LPT produces a maximum power of 160 HP and a maximum torque of 450 Nm

Tata 1216 LPT comes with a 6 speed (6F+1R) transmission along with a clutch

Tata 1216 LPT comes with Diesel fuel option and its fuel tank capacity is Diesel: 160 Litres# Ad Blue: 25 Litres

Tata 1216 LPT is available in multiple body options of 7035 mm (3600 wb HSD)# 7995 mm (4200 wb)# 8731 mm (4800 wb)

The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Tata 1216 LPT is expected to be around Rs Not Available for a 5 year period

The tyre size of Tata 1216 LPT is 8.25R20- 16 PR# 245/70R17.5 Tubeless (Optional)# 6+1 tyres

Tata 1216 LPT comes with Air brakes# With auto slack adjuster

Tata 1216 LPT truck comes with a standard warranty of 3 Years / 3 Lakh Km on driveline
