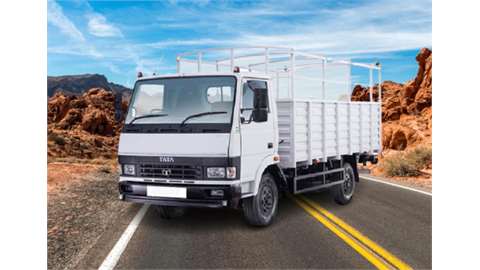

Tata 709g XD LPT Truck Specifications

*Ex - showroom Price of Tata 709g XD LPT Truck is 17.32-18.42 Lakh*

From ₹ 17.32-18.42 Lakh*
*Ex-showroom Price


Don't miss out on the best discount offers on Tata 709g XD LPT Truck for this month

Tata 709g XD LPT - 4 Wheeler Truck Highlights

Power

Tata 709g XD LPT Truck Power

85
GVW

Tata 709g XD LPT Truck GVW

7490 Kg
Fuel

Tata 709g XD LPT Truck Fuel

CNG
Engine

Tata 709g XD LPT Truck Engine

3783 cc
Cylinders

Tata 709g XD LPT Truck Cylinders

4

Key Specifications of Tata 709g XD LPT Truck

  • Engine
    3.8L SGI
    Naturally Aspirated
  • Fuel Injection System
    SGI
  • Engine Displacement
    3783 cc
  • Engine Cylinders
    4
  • Power
    85 HP@2800 rpm
  • Torque
    285 Nm@1200-1600 rpm
  • Clutch
    280 mm dia
  • Transmission
    5 speed (5F+1R)
  • Gearbox
    GBS 27
  • Gradeability
    25.00%
  • Max Speed
    80 Kmph
  • Emission Norms Compliance
    BS6
  • Fuel Type
    CNG
  • Fuel Tank Capacity
    300 Litres
  • Electricals Battery
    12V, 75 Ah
    Alternator: 65 Amps
  • GVW
    7490 Kg
  • Payload
    3.7 ton
  • Vehicle Configuration
    Cabin chassis
    Cabin with load body
  • Load Body Options
    Fixed Side Deck
    High Side Deck
  • Loading Span
    16 ft
  • Cabin Type
    Day cab
  • Cabin Tilt mechanism
    Manually tiltable
  • Chassis Frame
    Ladder type with cross members
  • Axle Configuration
    4x2
  • Front Axle
    Forged I Beam, Reverse Elliot Type
  • Rear Axle
    Banjo type
  • Front Suspension
    Semi elliptical leaf springs
    With telescopic shock absorbers
  • Rear Suspension
    Semi elliptical leaf springs
  • Tyres
    8.25R16 -16 PR
    4+1 tyres
  • Wheelbase
    3800 mm
  • Turning Circle Diameter
    13.5 m
  • Ground Clearance
    216 mm
  • Overall Length
    6893 mm
  • Overall Width
    2255 mm
  • Overall Height
    2940 mm
  • Load Body Width
    2117 mm / 6.94 ft
  • Chassis Depth
    200 mm
  • Chassis Thickness
    5 mm

Tata 709g XD LPT Truck Specification Highlights

TrucksBuses will provide all the key specifications of the Tata 709 g XD LPT truck. The brand new 4 wheeler Tata 709 g XD LPT is empowered by a 3.8L SGI naturally aspirated CNG engine that generates a maximum power of 85 horsepower and a high-end torque of 285 Nm. The Tata 4 wheeler LPT truck power transmission is controlled by a 5-speed and GBS 27 gearbox system. The Tata 709 g XD LPT offers an outstanding mileage of 8 kilometers per kilogram to 9 kilometers per kilogram and comes with a fuel tank capacity of 300 liters so that it can run miles without refueling. It is available in a 4x2 axle configuration. It comes in a body length of 16 feet and with a clutch of 280 mm diameter. The Tata 4 wheeler truck comes under BS6 emissions norms comliance. This 4-wheeler Tata LPT truck is available in two variants and 2 load body options, you can choose according to your needs. Both the front and rear suspensions are coupled with semi-elliptical leaf springs and telescopic shock absorbers. Some other valuable configurations are described above in the table.

Frequently Asked Questions on Tata 709g XD LPT Truck

Tata 709g XD LPT comes with CNG fuel option and its fuel tank capacity is 300 Litres

Gradeability of any truck defines its ability to climb upward slopes. The gradeability of Tata 709g XD LPT is 25.00%.

In terms of performance, Tata 709g XD LPT produces a maximum power of 85 HP@2800 rpm and a maximum torque of 285 Nm@1200-1600 rpm

Tata 709g XD LPT comes with a 5 speed (5F+1R) transmission along with a 280 mm dia clutch

The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Tata 709g XD LPT is expected to be around Rs Not Available for a 5 year period

Tata 709g XD LPT is available in multiple body options of 6893 mm

The tyre size of Tata 709g XD LPT is 8.25R16 -16 PR# 4+1 tyres

Tata 709g XD LPT comes with Air brakes# With auto slack adjuster

Tata 709g XD LPT truck comes with a standard warranty of 3 Years / 3 Lakh Km on driveline

Tata 709g XD LPT price starts from Rs 17.32-18.42 Lakh* . The 2024 price of Tata 709g XD LPT can vary slightly from state to state and city to city.

GVW of any truck is the sum total of empty kerb weight and the payload it can carry. Tata 709g XD LPT GVW is 7490 Kg

Payload defines the loading capacity of any truck. The payload of Tata 709g XD LPT is 3.7 ton

Tata 709g XD LPT comes with 4 cylinder 3.8L SGI# Naturally Aspirated engine and the engine displacement is 3783 cc
