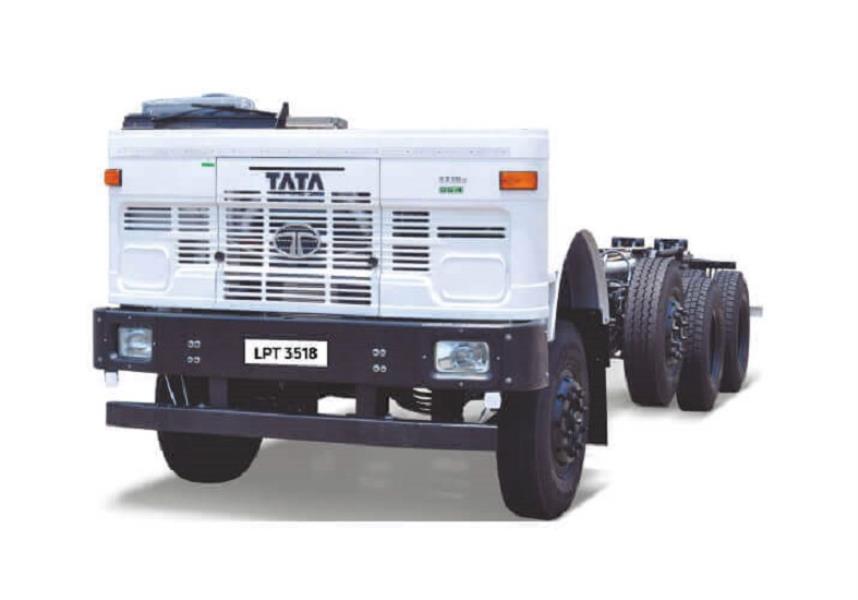

Tata LPT 3518 Truck GVW
GVW 35000 Kg
Tata LPT 3518 Truck Vehicle Configuration
Vehicle Configuration Cowl with Chassis
Cabin and chassis
Cabin with load body
Tata LPT 3518 Truck Load Body Options
Load Body Options Fixed Side Deck
High Side Deck
Container
Tata LPT 3518 Truck Loading Span
Loading Span 22 ft
24 ft
28 ft
Tata LPT 3518 Truck Cabin Type
Cabin Type Sleeper cabin option
Tata LPT 3518 Truck Cabin Tilt mechanism
Cabin Tilt mechanism Hydraulically tiltable
Tata LPT 3518 Truck Chassis Frame
Chassis Frame Ladder type straight frame
Tata LPT 3518 Truck Axle Configuration
Axle Configuration 8x2
Tata LPT 3518 Truck Front Axle
Front Axle Forged I Beam, Reverse Elliot Type
With lift axle
Tata LPT 3518 Truck Rear Axle
Rear Axle Single reduction RA 110LD
RAR: 5.12
Tata LPT 3518 Truck Front Suspension
Front Suspension Front axle: Parabolic leaf springs
Pusher axle: Pneumatic Lift
Tata LPT 3518 Truck Rear Suspension
Rear Suspension Semi elliptical leaf springs
Bell crank
Tata LPT 3518 Truck Tyres
Tyres 295/90R20 (Tube)
12+1 tyres
Tata LPT 3518 Truck Wheelbase
Wheelbase 5205 mm
5505 mm
5905 mm
Tata LPT 3518 Truck Turning Circle Diameter
Turning Circle Diameter 19.9 m (5205 wb)
21.5 m (5505 wb)
22.38 m (5905 wb)
Tata LPT 3518 Truck Overall Length
Overall Length 9035 mm (5205 wb)
9635 mm (5505 wb)
10385 mm (5905 wb)
Tata LPT 3518 Truck Overall Width
Overall Width 2440 mm
Tata LPT 3518 Truck Front Overhang
Front Overhang 1260 mm
Tata LPT 3518 Truck Rear Overhang
Rear Overhang 2570 mm (5205 wb)
2870 mm (5505 wb)
2505 mm (5905 wb)
Tata LPT 3518 Truck Front Track
Front Track 1964 mm
Tata LPT 3518 Truck Rear Track
Rear Track 1817 mm
Tata LPT 3518 Truck Chassis Depth
Chassis Depth 285 mm
Tata LPT 3518 Truck Chassis Flange width
Chassis Flange width 65 mm
Tata LPT 3518 Truck Chassis Thickness
Chassis Thickness 8.5 mm
