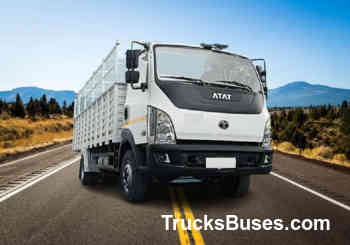

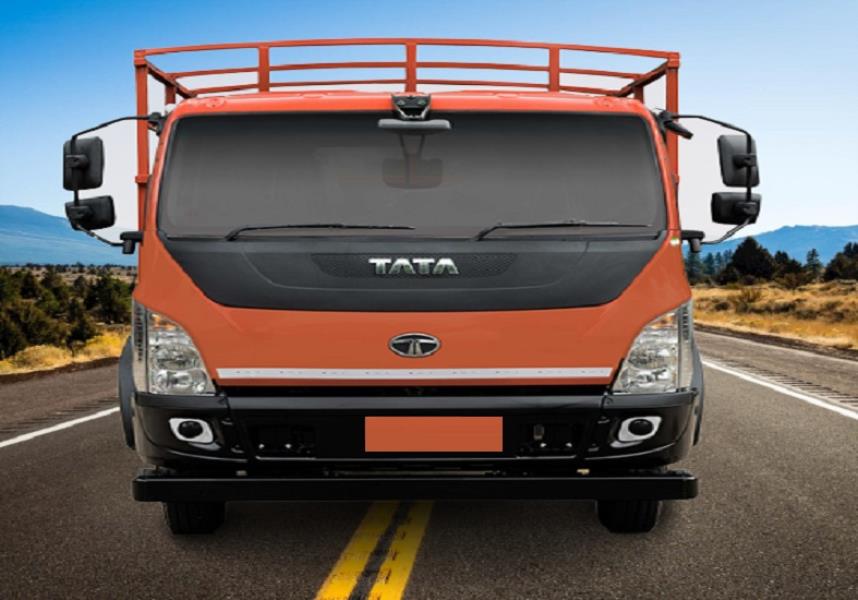

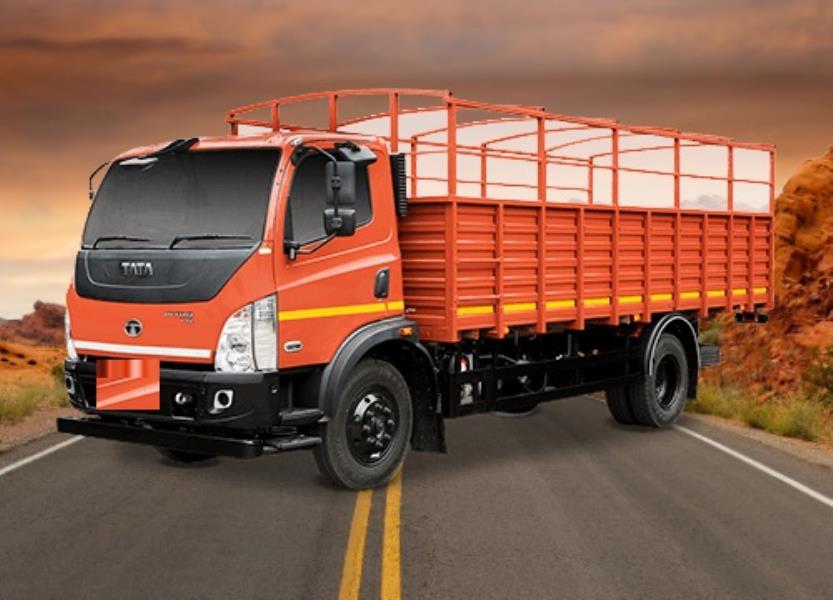

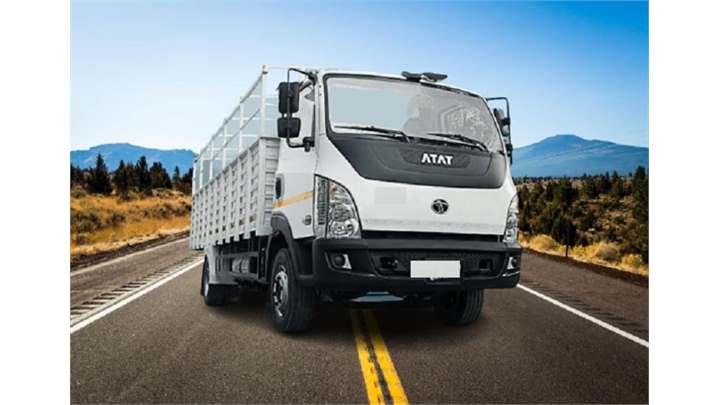

Tata Ultra T.11 CNG truck specifications

Name: Tata Ultra T.11 CNG
Brand: Tata
SKU: TBN-20-F74C37

Rate This Vehicle

From ₹ 21.12-21.46 Lakh*
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on Tata Ultra T.11 CNG Truck for this month

Tata Ultra T.11 CNG - 6 Tyre Truck Highlights

Power

125

GVW

11250 Kg

Fuel

CNG

Cylinders

Key Specifications of Tata Ultra T.11 CNG Truck

Engine
Configuration

Tata Ultra T.11 CNG Truck Fuel Type
Fuel Type
CNG
Tata Ultra T.11 CNG Truck Fuel Tank Capacity
Fuel Tank Capacity
570 Litres
Tata Ultra T.11 CNG Truck Electricals Battery
Electricals Battery
12V, 100 Ah
Alternator: 120 Amps
Tata Ultra T.11 CNG Truck Engine
Engine
3.8L SGI TCIC
Tata Ultra T.11 CNG Truck Engine Cylinders
Engine Cylinders
4
Tata Ultra T.11 CNG Truck Power
Power
125 HP
Tata Ultra T.11 CNG Truck Torque
Torque
420 Nm
Tata Ultra T.11 CNG Truck Clutch
Clutch
330 mm dia
With clutch booster
Tata Ultra T.11 CNG Truck Transmission
Transmission
5 speed (5F+1R)
Tata Ultra T.11 CNG Truck Gearbox
Gearbox
GBS 550 PTOP
Tata Ultra T.11 CNG Truck Gradeability
Gradeability
26.80%
Tata Ultra T.11 CNG Truck Max Speed
Max Speed
80 Kmph
Tata Ultra T.11 CNG Truck Emission Norms Compliance
Emission Norms Compliance
BS6 OBD2

Tata Ultra T.11 CNG Truck GVW
GVW
11250 Kg
Tata Ultra T.11 CNG Truck Payload
Payload
6-7 Tons*
Tata Ultra T.11 CNG Truck Vehicle Configuration
Vehicle Configuration
Cabin and chassis
Cabin with load body
Tata Ultra T.11 CNG Truck Load Body Options
Load Body Options
Fixed Side Deck
High Side Deck
Tata Ultra T.11 CNG Truck Loading Span
Loading Span
14 ft
17 ft
20 ft
22 ft
Tata Ultra T.11 CNG Truck Cabin Type
Cabin Type
Day cab
Tata Ultra T.11 CNG Truck Cabin Tilt mechanism
Cabin Tilt mechanism
Hydraulically tiltable
Tata Ultra T.11 CNG Truck Chassis Frame
Chassis Frame
Ladder type with cross members
Tata Ultra T.11 CNG Truck Axle Configuration
Axle Configuration
4x2
Tata Ultra T.11 CNG Truck Front Axle
Front Axle
Forged I Beam, Reverse Elliot Type
Tata Ultra T.11 CNG Truck Front Suspension
Front Suspension
Parabolic leaf springs
With telescopic shock absorbers
Tata Ultra T.11 CNG Truck Rear Suspension
Rear Suspension
Semi elliptical leaf springs
Tata Ultra T.11 CNG Truck Tyres
Tyres
235/75 R 17.5
Tubeless Radial
6+1 tyres
Tata Ultra T.11 CNG Truck Wheelbase
Wheelbase
3310 mm
3920 mm
4530 mm
4920 mm
5300 mm
Tata Ultra T.11 CNG Truck Turning Circle Diameter
Turning Circle Diameter
10.8 m (3310 wb)
12.9 m (3920 wb)
15.2 m (4530 wb)
16.9 m (4920 wb)
18.2 m (5300 wb)
Tata Ultra T.11 CNG Truck Ground Clearance
Ground Clearance
185 mm
Tata Ultra T.11 CNG Truck Overall Length
Overall Length
8300 Kg (4530 wb HSD)
9560 Kg (5300 wb HSD)
Tata Ultra T.11 CNG Truck Overall Width
Overall Width
2255 mm
Tata Ultra T.11 CNG Truck Overall Height
Overall Height
2933 mm
Tata Ultra T.11 CNG Truck Load Body Width
Load Body Width
2117 mm

Tata Ultra T.11 CNG Truck Specification Highlights

This 6 chakka Tata truck can be specified based on its engine performance and the body configuration. The latest Tata Ultra T.11 CNG cargo truck has a powerful engine of 4-cylinders. It produces a high-end torque of 420 Nm and a power of 125 HP with the help of 3.8L SGI TCIC engine. The Tata Ultra T.11 power transmission is controlled by a 5-speed gearbox system. It provides a gradeability of 26.80% with 330 mm dia clutch with clutch booster. It follows BS6 OBD2 emission norms. The fuel tank capacity of Tata truck is 570 liters which runs approximate 80 kilometers per hour. It has a hydraulically tiltable cabin with ladder-type with cross members chassis frame. The axle configuration of the Ultra T.11 is 4x2. The front suspension has parabolic leaf springs with telescopic shock absorbers while the rear suspension has semi-elliptical leaf springs. It provides a ground clearance of 185 mm. The overall dimensions, wheelbases, body lengths and other configurational features are mentioned above in the table.
