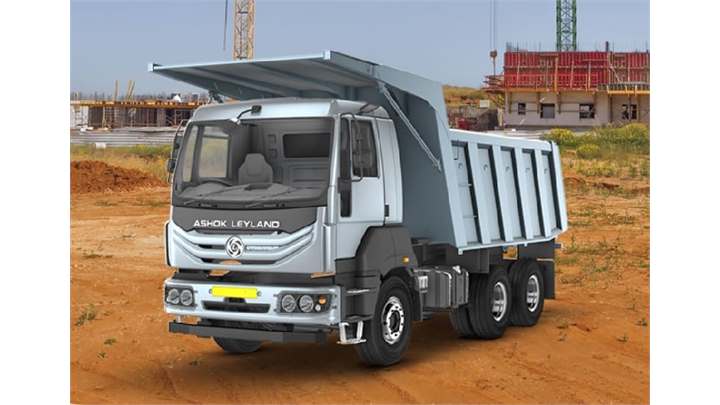

Ashok Leyland 2820 Tipper Specifications

*Ex - showroom Price of Ashok Leyland 2820 Tipper is 41.88-53.02 Lakh*

From ₹ 41.88-53.02 Lakh*
*Ex-showroom Price


Don't miss out on the best discount offers on Ashok Leyland 2820 Tipper for this month

Ashok Leyland 2820 - 10 Tyre Tipper Highlights

Power

Ashok Leyland 2820 Tipper Power

200
GVW

Ashok Leyland 2820 Tipper GVW

28000 Kg
Fuel

Ashok Leyland 2820 Tipper Fuel

Diesel
Engine

Ashok Leyland 2820 Tipper Engine

5660 cc
Cylinders

Ashok Leyland 2820 Tipper Cylinders

6

Key Specifications of Ashok Leyland 2820 Tipper

  • Engine
    H series CRS
    iGen6 technology
  • Fuel Injection System
    Common Rail
  • Engine Displacement
    5660 cc
  • Engine Cylinders
    6
  • Power
    200 HP@2400 rpm
  • Torque
    700 Nm@1200-2000 rpm
  • Clutch
    380 mm dia
    With clutch booster
  • Transmission
    6 speed (6F+1R)
    9 speed (Optional)
    With cable shift
  • Gradeability
    28.5 / 43.2%
  • Emission Norms Compliance
    BS6
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    Diesel: 220 / 300 Litres
    Ad Blue: 48 Litres
    Polymer tank
  • Electricals Battery
    24V, 120 Ah / 150 Ah (AC)
  • GVW
    28000 Kg
  • Vehicle Configuration
    Cabin and chassis
    Cabin with Box body
    Cabin with Rock body
  • Load Body Options
    14 / 16 / 18 / 20 Cu.M (Box)
    14 Cu.M (Rock)
  • Cabin Type
    Sleeper cabin
  • Chassis Frame
    HSS material, bolted construction
  • Axle Configuration
    6x4
  • Front Axle
    Forged I Beam, Reverse Elliot Type
  • Rear Axle
    Fully floating, Single speed
    RAR 6.5
  • Front Suspension
    Semi elliptical leaf springs
    Parabolic leaf spring (Optional)
  • Rear Suspension
    Bogie suspension
    NRS Semi elliptical leaf springs (Optional)
  • Tyres
    295/90R20
    295/95D20 (Optional)
    11x20 - 16PR (Optional)
    11R20 - 16PR (Optional)
    11x20 Mine lug (Optional)
    10+1 tyres
  • Wheelbase
    3900 mm
    4600 mm
  • Chassis Depth
    275 mm
  • Chassis Flange width
    75 mm
  • Chassis Thickness
    8 mm

Ashok Leyland 2820 Tipper Specification Highlights

Let us discuss the specifications of the 10-wheeler Ashok Leyland 2820 cargo truck here. This 10-wheeler Ashok Leyland 2820 cargo truck comes with 6 cylinder H-Series CRS, iGen6 Technology engine which produces 200 HP of maximum power and 700 Nm of torque. This 10-wheeler Ashok Leyland 2820 cargo truck comes with a wheelbase of 3900 mm and 4600 mm however you can choose your cargo truck as per your requirement. Ashok Leyland 2820 10 wheeler cargo truck offers you customized tyre options like 295 and 90R20, 295 and 95D20,11x20 - 16PR,11R20 - 16PR, 11x20 Mine Lug with gradeability of 28.5% or 43.2%. Ashok Leyland 2820 cargo truck offers you front suspension: semi-elliptical leaf springs or parabolic leaf springs and rear suspension: bogie suspension and NRS semi-elliptical leaf springs. If you want to know about the chassis, frame, fuel tank capacity, and mileage then you can check the specifications tab on TrucksBuses.

Frequently Asked Questions on Ashok Leyland 2820 Tipper

Ashok Leyland 2820 price starts from Rs 41.88-53.02 Lakh*. The 2024 price of Ashok Leyland 2820 can vary slightly from state to state and city to city.

GVW of any truck is the sum total of empty kerb weight and the payload it can carry. Ashok Leyland 2820 GVW is 28000 Kg

In terms of performance, Ashok Leyland 2820 produces a maximum power of 200 HP@2400 rpm and a maximum torque of 700 Nm@1200-2000 rpm

Ashok Leyland 2820 comes with a 6 speed (6F+1R)# 9 speed (Optional)# With cable shift transmission along with a 380 mm dia# With clutch booster clutch

The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Ashok Leyland 2820 is expected to be around Rs 79868 for a 5 year period

The tyre size of Ashok Leyland 2820 is 295/90R20# 295/95D20 (Optional)# 11x20 - 16PR (Optional)# 11R20 - 16PR (Optional)# 11x20 Mine lug (Optional)# 10+1 tyres

Ashok Leyland 2820 comes with Diesel fuel option and its fuel tank capacity is Diesel: 220 / 300 Litres# Ad Blue: 48 Litres# Polymer tank

Gradeability of any truck defines its ability to climb upward slopes. The gradeability of Ashok Leyland 2820 is 28.5 / 43.2%.

Ashok Leyland 2820 is available in 14 / 16 / 18 / 20 Cu.M (Box)# 14 Cu.M (Rock) body

Ashok Leyland 2820 comes with Air brakes# With ASA
