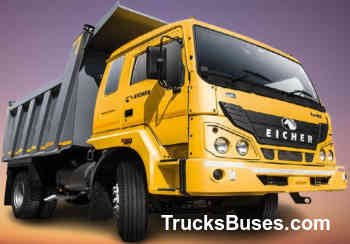

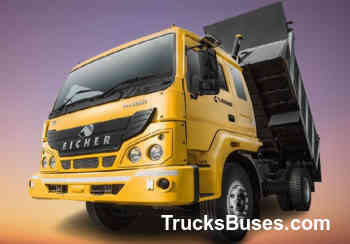

Eicher Pro 5016T Tipper Images Eicher Pro 5016T Tipper Images Eicher Pro 5016T Tipper Images Eicher Pro 5016T Tipper Images Eicher Pro 5016T Tipper Images
Eicher Pro 5016T Tipper Images
Eicher Pro 5016T Tipper Images
Eicher Pro 5016T Tipper Images
Eicher Pro 5016T Tipper Images
Eicher Pro 5016T Tipper Images

Eicher Pro 5016T Tipper Specifications

Rate This Vehicle

*Ex - showroom Price of Eicher Pro 5016T Tipper is 21.12 Lakh* Onwards

From ₹ 21.12 Lakh* Onwards
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on Eicher Pro 5016T Tipper for this month

Eicher Pro 5016T - 6 Wheeler Tipper Highlights

Power

Eicher Pro 5016T Tipper Power

170
GVW

Eicher Pro 5016T Tipper GVW

16200 Kg
Fuel

Eicher Pro 5016T Tipper Fuel

Diesel
Engine

Eicher Pro 5016T Tipper Engine

5700 cc
Cylinders

Eicher Pro 5016T Tipper Cylinders

6
Trucksbuses.com
Trucksbuses.com

Key Specifications of Eicher Pro 5016T Tipper

  • Engine
    E694 CRS
    i3 EGR Technology
  • Fuel Injection System
    Common Rail
  • Engine Displacement
    5700 cc
  • Engine Cylinders
    6
  • Power
    170 HP@2400 rpm
  • Torque
    620 Nm@1200-1900 rpm
  • Clutch
    352 mm dia
    With clutch booster
  • Transmission
    6 speed manual (6F+1R)
  • Gearbox
    ET 70 S6
  • Gradeability
    35%
  • Max Speed
    60 Kmph
  • Emission Norms Compliance
    BSIV
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    220 Litres
  • Electricals Battery
    24V
  • GVW
    16200 Kg
  • Vehicle Configuration
    Cabin and chassis
    Cabin with Box body
    Cowl and chassis
  • Cabin Type
    Sleeper cabin
  • Cabin Tilt mechanism
    Tiltable cabin
  • Chassis Frame
    C Channel ladder type
  • Axle Configuration
    4x2
  • Front Axle
    Forged I Beam, Reverse Elliot Type
  • Rear Axle
    Fully floating
  • Front Suspension
    Semi-elliptical leaf springs
    With telescopic shock absorbers
  • Rear Suspension
    Semi-elliptical leaf springs
  • Tyres
    10R20 - 16 PR
  • Wheelbase
    3485 mm
  • Turning Circle Diameter
    14.03 m
  • Ground Clearance
    252 mm
  • Overall Length
    6225 mm
  • Overall Width
    2460 mm
  • Overall Height
    3180 mm
  • Chassis Depth
    230 mm
  • Chassis Flange width
    76 mm
  • Chassis Thickness
    6 mm
  • Load Body Dimensions
    8.5 Cu.M Box body
    10 Cu.M

Eicher Pro 5016T Tipper Specification Highlights

Check all the Eicher Pro 5016T specifications on TrucksBuses in the table aboveThe main driveline of this Eicher tipper includes a 6 cylinder E694 CRS, i3 EGR Technology engine that produces a maximum power of 170 HP and a torque of 620 NmIt is matched with 6 speed manual (6F+1R), ET 70 S6 gearbox A gross weight of 16200 kg and multiple body configurations allows the owner to carry multiple kinds of loads as per requirement, in this Eicher dumperEicher Pro 5016T tipper comes with a sleeper cabin with multiple utility features for driver comfort Other Eicher Pro 5016T tipper specifications like chassis, tyre, axle, turning circle dia, engine cc, gradeability are available here in the table above.

Frequently Asked Questions on Eicher Pro 5016T Tipper

The tyre size of Eicher Pro 5016T is 10R20 - 16 PR

Eicher Pro 5016T comes with Air Brakes

Eicher Pro 5016T tipper comes with a standard warranty of 1.5 Years / 2000 Hrs / 1.5 Lakh Km on driveline# 1.5 Years / 2000 Hrs / 1.5 Lakh Km on vehicle

The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Eicher Pro 5016T is expected to be around Rs Not Available for a 5 year period

GVW of any truck is the sum total of empty kerb weight and the payload it can carry. Eicher Pro 5016T GVW is 16200 Kg

In terms of performance, Eicher Pro 5016T produces a maximum power of 170 HP@2400 rpm and a maximum torque of 620 Nm@1200-1900 rpm

Eicher Pro 5016T comes with Diesel fuel option and its fuel tank capacity is 220 Litres

Gradeability of any truck defines its ability to climb upward slopes. The gradeability of Eicher Pro 5016T is 35%.

Eicher Pro 5016T comes with a 6 speed manual (6F+1R) transmission along with a 352 mm dia# With clutch booster clutch
