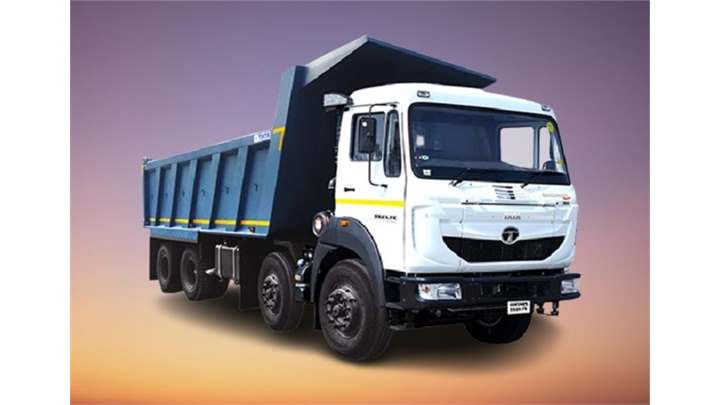

Key Details of Tata Signa 3523.TK Tipper

Power
220
GVW
35000 Kg
Fuel
Diesel
Engine
5635 cc
Cylinders
6
Trucksbuses.com
Trucksbuses.com

Key Overview of Tata Signa 3523.TK Tipper

  • GVW (Kg)
    35000 Kg
  • Axle Configuration
    8x4
  • Engine
    Cummins ISBe 5.6L
  • Power
    220 HP@2300 rpm
  • Torque
    850 Nm@1000-1600 rpm
  • Transmission
    9 speed (9F+1R)
  • Variants
    Cabin and chassis
    Cabin with Box body
  • Load Body Options
    20 Cu.M Box body
  • Warranty
    6 Years / 6000 Hrs on driveline
  • Service Interval
    1500 Hrs
  • Additional
    Gear Shift Advisor
    Fuel Economy Switch
    Hill Start Assist

Tata Signa 3523.TK Tipper Highlights

Tata Signa 3523.TK is a tipper with gross vehicle weight of 35000 kgPowering this Tata tipper is 5635 cc 6 cylinder, Cummins ISBe 5.6L engineTata Signa 3523.TK tipper produces 220 HP of power and 850 Nm of maximum torque The engine of this Tata Signa 3523.TK tipper is matched to a 9 speed (9F+1R) gearboxThis Tata Signa 3523.TK tipper comes in 8x4 axle configurationChassis underlying this Tata Signa 3523.TK tipper is ladder type straight frameSigna 3523.TK tipper rear suspension duty is done by semi elliptical leaf springsTata Signa 3523.TK safety features include Air Brakes and seat belts More details of the Tata Signa 3523.TK tipper features like mileage, fuel tank capacity, tyre, suspension, photos, etc are available in the sections aboveIt competes with other vehicles in the segment like Mahindra Blazo X 35 Tipper BS6 Tipper and Tata Prima 3530.K Tipper .

Frequently Asked Questions on Tata Signa 3523.TK Tipper

Tata Signa 3523.TK comes with Air brakes
Tata Signa 3523.TK price starts from Rs 44.49-53.12 Lakh*. The 2023 price of Tata Signa 3523.TK can vary slightly from state to state and city to city.
Tata Signa 3523.TK comes with Diesel fuel option and its fuel tank capacity is 300 Litres# Polymer tank# With anti-fuel theft
Tata Signa 3523.TK is available in 20 Cu.M Box body body
The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Tata Signa 3523.TK is expected to be around Rs 85562 for a 5 year period
The tyre size of Tata Signa 3523.TK is 295/90R20# 12+1 tyres
Tata Signa 3523.TK tipper comes with a standard warranty of 6 Years / 6000 Hrs on driveline
GVW of any truck is the sum total of empty kerb weight and the payload it can carry. Tata Signa 3523.TK GVW is 35000 Kg
In terms of performance, Tata Signa 3523.TK produces a maximum power of 220 HP@2300 rpm and a maximum torque of 850 Nm@1000-1600 rpm
Tata Signa 3523.TK comes with a 9 speed (9F+1R) transmission along with a 380 mm dia# Organic clutch
