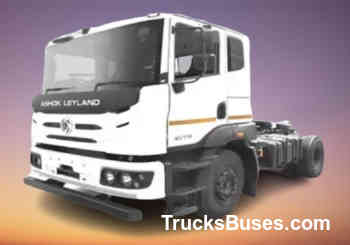

Ashok Leyland 4420 AVTR Tractor Trailer Specifications

*Ex - showroom Price of Ashok Leyland 4420 AVTR Tractor Trailer is 34.10-36.45 Lakh*

From ₹ 34.10-36.45 Lakh*
*Ex-showroom Price


Don't miss out on the best discount offers on Ashok Leyland 4420 AVTR Tractor Trailer for this month

Ashok Leyland 4420 AVTR - 4x2 Horse Highlights

Power

Ashok Leyland 4420 AVTR Tractor Trailer Power

200
GVW

Ashok Leyland 4420 AVTR Tractor Trailer GVW

43500 Kg
Fuel

Ashok Leyland 4420 AVTR Tractor Trailer Fuel

Diesel
Engine

Ashok Leyland 4420 AVTR Tractor Trailer Engine

5660 cc
Cylinders

Ashok Leyland 4420 AVTR Tractor Trailer Cylinders

6

Key Specifications of Ashok Leyland 4420 AVTR Tractor Trailer

  • Engine
    H series CRS
    iGen-6 technology
  • Fuel Injection System
    Common Rail
  • Engine Displacement
    5660 cc
  • Engine Cylinders
    6
  • Power
    200 HP@2400 rpm
  • Torque
    700 Nm@1200-2000 rpm
  • Clutch
    380 mm dia
    With clutch booster
  • Transmission
    6 speed (6F+1R)
    With cable shift
  • Gearbox
    ZF 6S 850
  • Max Speed
    80 Kmph
  • Emission Norms Compliance
    BS6
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    Diesel: 300 / 375 Litres
    Ad Blue: 48 Litres
    Polymer tank
  • Electricals Battery
    24V, 120 Ah / 150 Ah (AC)
  • Gross Combination Weight
    43500 Kg
  • Cabin Type
    Sleeper cabin
  • Chassis Frame
    HSS material, bolted construction
  • Axle Configuration
    4x2
  • Front Axle
    Forged I Beam, Reverse Elliot Type
    Unitized wheel bearings (Optional)
  • Rear Axle
    Fully floating, Single speed
    Unitized wheel bearings (Optional)
  • Front Suspension
    Semi elliptical leaf springs
    Parabolic leaf spring (Optional)
  • Rear Suspension
    Semi elliptical leaf springs
    Parabolic helper spring
  • Anti Roll Bar
    Optional in front
  • Tyres
    295/90R20 (Tube)
    6+1 tyres
  • Wheelbase
    3400 mm
  • Turning Circle Diameter
    12.6 m
  • Ground Clearance
    260 mm
  • Overall Length
    5950 mm
  • Overall Width
    2570 mm
  • Overall Height
    3145 mm (M Cabin)
    3165 mm (U Cabin)
    3110 mm (N Cabin)
  • Front Overhang
    1550 mm
  • Rear Overhang
    1000 mm
  • Front Track
    2084 mm
  • Rear Track
    1876 mm
  • Chassis Depth
    275 mm
  • Chassis Flange width
    75 mm
  • Chassis Thickness
    7 / 8 mm

Ashok Leyland 4420 AVTR Tractor Trailer Specification Highlights

Select this brand new Ashok Leyland tractor trailer models basis upon its specification. We are going to reveal this Ashok Leyland 4420 AVTR specification at this segment of TrucksBuses. The gross vehicle weight of the tractor-trailer 4420 AVTR is 43500 kilograms. The 6-wheeler horse of BharatBenz 4220 AVTR is powered by an H series CRS of iGen-6 technology with an engine displacement of 5660 cc that produces a power of 200 horsepower and a high-end torque of 700 Nm. This brand-new BharatBenz tractor trailer has a sleeper-type cabin. It runs on diesel fuel and has a common rail fuel injection system. It follows BS6 emission norms compliances. Its power transmission is controlled by a 6-speed, ZF 6S 850 gearbox system. Latest Ashok Leyland 4420 AVTR trailer available in an axle configuration of 4x2. Its front suspension has semi-elliptical and optional parabolic leaf springs while the rear suspension has semi-elliptical and parabolic helper springs. The wheelbase size of this 4220 AVTR trailer is 3400 mm and tyre size is 295/90R20 and offers a ground clearance of 260 mm. You can also check the other specification of Ashok Leyland 4420 AVTR tractor here in the table above.

Frequently Asked Questions on Ashok Leyland 4420 AVTR Tractor Trailer

Ashok Leyland 4420 AVTR comes with 6 cylinder H series CRS# iGen-6 technology engine and the engine displacement is 5660 cc

In terms of performance, Ashok Leyland 4420 AVTR produces a maximum power of 200 HP@2400 rpm and a maximum torque of 700 Nm@1200-2000 rpm

Ashok Leyland 4420 AVTR comes with a 6 speed (6F+1R)# With cable shift transmission along with a 380 mm dia# With clutch booster clutch

Ashok Leyland 4420 AVTR comes with Diesel fuel option and its fuel tank capacity is Diesel: 300 / 375 Litres# Ad Blue: 48 Litres# Polymer tank

The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Ashok Leyland 4420 AVTR is expected to be around Rs Not Available for a 5 year period

The tyre size of Ashok Leyland 4420 AVTR is 295/90R20 (Tube)# 6+1 tyres

Ashok Leyland 4420 AVTR comes with Air brakes# With ASA

Ashok Leyland 4420 AVTR tipper comes with a standard warranty of 4 Years / 4 Lakh Km
