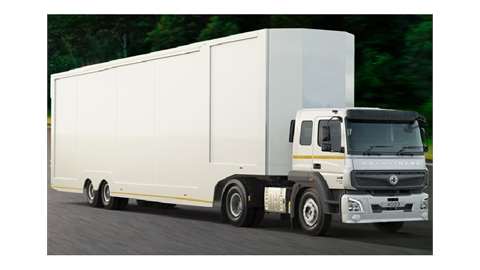

BharatBenz 4023T Tractor Trailer Specifications

*Ex - showroom Price of BharatBenz 4023T Tractor Trailer is 36.16 Lakh* Onwards

From ₹ 36.16 Lakh* Onwards
*Ex-showroom Price


Don't miss out on the best discount offers on BharatBenz 4023T Tractor Trailer for this month

BharatBenz 4023T - 4x2 Horse Highlights

Power

BharatBenz 4023T Tractor Trailer Power

241
GVW

BharatBenz 4023T Tractor Trailer GVW

39500 Kg
Fuel

BharatBenz 4023T Tractor Trailer Fuel

Diesel
Engine

BharatBenz 4023T Tractor Trailer Engine

7200 cc
Cylinders

BharatBenz 4023T Tractor Trailer Cylinders

6

Key Specifications of BharatBenz 4023T Tractor Trailer

  • Engine
    OM 926
  • Fuel Injection System
    Unitised fuel injection pump
  • Engine Displacement
    7200 cc
  • Engine Cylinders
    6
  • Power
    241 HP
  • Torque
    850 Nm
  • Clutch
    395 mm dia
    With clutch booster
  • Transmission
    9 speed (9F+1R)
  • Gearbox
    G131, Synchromesh
  • Gradeability
    26.2% (4.778 RAR)
    25.8% (4.3 RAR)
  • Max Speed
    80 Kmph
  • Emission Norms Compliance
    BS6
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    Diesel: 455 / 430 Litres
    Ad Blue: 60 / 51 Litres
    With diesel anti-theft strain
  • Electricals Battery
    24V, 120 Ah
  • Gross Combination Weight
    39500 Kg
  • Cabin Type
    Sleeper cabin
  • Cabin Tilt mechanism
    Hydraulically tiltable
  • Chassis Frame
    Channel section with cross members
  • Axle Configuration
    4x2
  • Front Axle
    IF 6.6 / 7.0 Reverse Elliot Type
  • Rear Axle
    IR440-11
    RAR 4.3 / 4.778
  • Front Suspension
    Parabolic leaf springs
    With telescopic shock absorbers
  • Rear Suspension
    Semi elliptical leaf springs
  • Anti Roll Bar
    Front only
  • Tyres
    11R20 or 295/90R20
    295/80 R22.5 Tubeless
    6+1 tyres
  • Wheelbase
    3300 mm
  • Turning Circle Diameter
    12.8 m
  • Ground Clearance
    237 mm
  • Overall Length
    5780 mm
  • Overall Width
    2490 mm
  • Overall Height
    2975 mm
  • Front Overhang
    1485 mm
  • Rear Overhang
    995 mm
  • Chassis Depth
    288 mm
  • Chassis Flange width
    70 mm
  • Chassis Thickness
    9 mm

BharatBenz 4023T Tractor Trailer Specification Highlights

When we plan to purchase any vehicle, we simply go through its engine performance and body configuration. In this section you will get a key insight into all the latest specifications of new BharatBenz 4023 T truck. It comes with a gross vehicle weight of 39500 kg and a 6-cylinder engine that generates power of 241 HP with high-end torque of 850 Nm, BharatBenz 4023 T tractor comes with the engine displacement of 7200 cc in this trailer truck. The front suspension of latest BharatBenz 4023T has parabolic leaf springs with telescopic shock absorbers while the rear suspension has semi-elliptical leaf springs with a front anti-roll bar. The chassis dimensions are 288 mm (depth), 70 mm (flange width) and 9 mm (thickness). You will get a hydraulically tiltable sleeper cabin with latest BharatBenz 4023 T truck. TrucksBuses provides a compare section where you can check its comparative trucks specification also.

Frequently Asked Questions on BharatBenz 4023T Tractor Trailer

BharatBenz 4023T price starts from Rs 36.16 Lakh* Onwards. The 2024 price of BharatBenz 4023T can vary slightly from state to state and city to city.

BharatBenz 4023T comes with 6 cylinder OM 926 engine and the engine displacement is 7200 cc

In terms of performance, BharatBenz 4023T produces a maximum power of 241 HP and a maximum torque of 850 Nm

BharatBenz 4023T comes with a 9 speed (9F+1R) transmission along with a 395 mm dia# With clutch booster clutch

BharatBenz 4023T comes with Diesel fuel option and its fuel tank capacity is Diesel: 455 / 430 Litres# Ad Blue: 60 / 51 Litres# With diesel anti-theft strain

Gradeability of any truck defines its ability to climb upward slopes. The gradeability of BharatBenz 4023T is 26.2% (4.778 RAR)# 25.8% (4.3 RAR).

The tyre size of BharatBenz 4023T is 11R20 or 295/90R20# 295/80 R22.5 Tubeless# 6+1 tyres

BharatBenz 4023T tipper comes with a standard warranty of 6 Years / 6 Lakh km on driveline# 3 Years / 3 Lakh km on vehicle

The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of BharatBenz 4023T is expected to be around Rs 61871 for a 5 year period
