Eicher 3016 N LPO Bus Chassis Specifications

Eicher 3016 N LPO Bus Chassis Specification Highlights

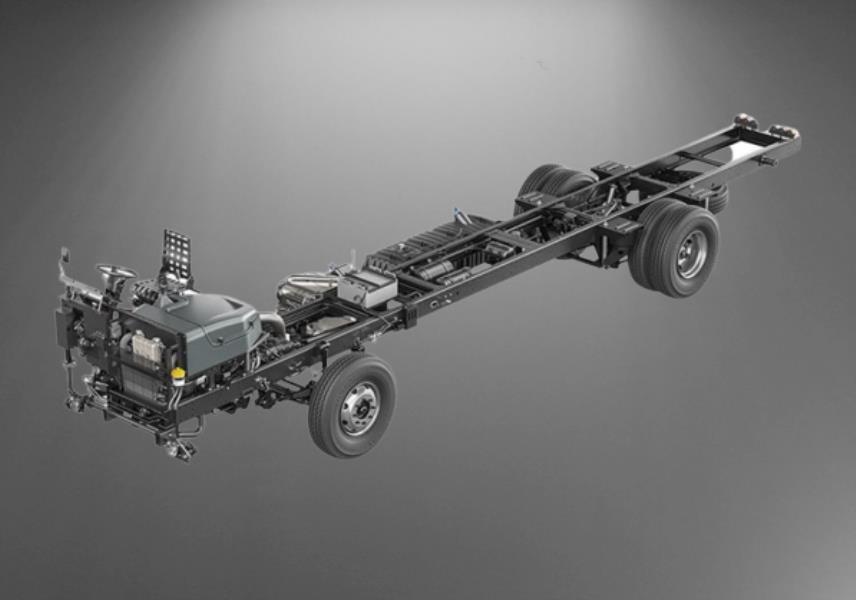

The Eicher bus chassis comes with good engine performance and a well-designed body configuration. The Eicher 3016 N LPO bus chassis has an E494, 4-cylinder powerful engine with an engine displacement of 5131 cc that can produce a high power of 210 horsepower and a maximum end torque of 600 Nm. Its power transmission is controlled by a 6-speed gearbox system. It follows the emission norms of BS6. It has a common rail fuel injection system and its fuel tank capacity is 425 liters. This chassis has a domex frame. Both the front and rear suspensions are weveller-type suspensions along with rear air suspension if required. The wheelbase of the 3016 N LPO bus chassis is 6900 mm and its tyre size is 295/80R22.5- 16PR. It gives a ground clearance of 245 mm. Some useful dimensions of this chassis are described above in the table.
