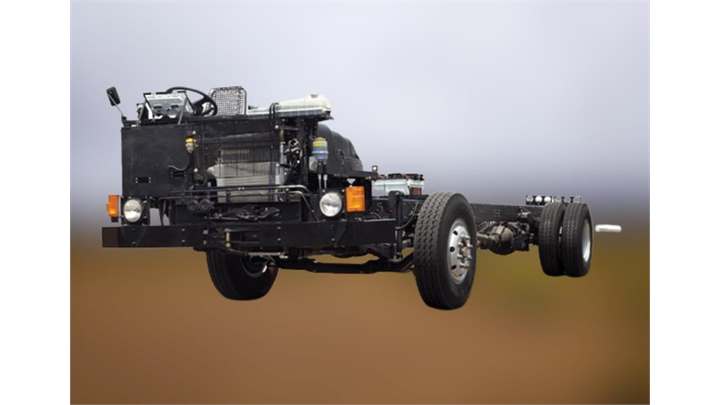

Eicher 6016 H LP Bus Chassis Specifications

*Ex - showroom Price of Eicher 6016 H LP Bus Chassis is 25.58 Lakh* Onwards

From ₹ 25.58 Lakh* Onwards
*Ex-showroom Price


Don't miss out on the best discount offers on Eicher 6016 H LP Bus Chassis for this month

Eicher 6016 H LP - 6 Tyre Bus Highlights

Power

Eicher 6016 H LP Bus Chassis Power

210
GVW

Eicher 6016 H LP Bus Chassis GVW

16200 Kg
Fuel

Eicher 6016 H LP Bus Chassis Fuel

Diesel
Engine

Eicher 6016 H LP Bus Chassis Engine

5131 cc
Cylinders

Eicher 6016 H LP Bus Chassis Cylinders

4

Key Specifications of Eicher 6016 H LP Bus Chassis

  • Engine
    VEDX5
  • Fuel Injection System
    Common rail
  • Engine Displacement
    5131 cc
  • Engine Cylinders
    4
  • Engine Location
    Front
  • Power
    210 HP@2200 rpm
  • Torque
    825 Nm@1200-1600 rpm
  • Clutch
    395 mm dia
  • Transmission
    6 speed manual (6F+1R)
  • Gearbox
    ET70S6 Synchromesh
  • Emission Norms Compliance
    BS6
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    250 Litres
  • Electricals Battery
    12V x 2, 150 Ah
  • GVW
    16200 Kg
  • Overall Length
    8082 mm
  • Vehicle Configuration
    Chassis without face-cowl
  • Chassis Frame
    Domex frame
  • Axle Configuration
    4x2
  • Front Suspension
    Weveller Suspension
  • Rear Suspension
    Weveller Suspension
  • Tyres
    10R20 - 16 PR
    6+1 tyres
  • Wheelbase
    4200 mm
  • Ground Clearance
    245 mm
  • Front Overhang
    1362 mm
  • Rear Overhang
    2520 mm

Eicher 6016 H LP Bus Chassis Specification Highlights

Check all the Eicher 6016 H LP bus specifications here on TrucksBuses The main driveline of this Eicher bus chassis includes a 4 cylinder VEDX5 engine that produces a maximum power of 210 HP and a torque of 825 Nm Gearbox matched with this engine is 6 speed manual (6F+1R)Eicher 6016 H LP bus comes with a gross vehicle weight of 16200 kg and offers length of 8082 mm For the comfortable journeys, weveller suspension in front and weveller suspension in rear does the duty in this Eicher bus chassis Other Eicher 6016 H LP bus specifications like chassis, width, tyre, turning circle dia are available here in the tables on this page.

Frequently Asked Questions on Eicher 6016 H LP Bus Chassis

The monthly EMI of any bus depends on the interest rate offered by bank, down payment made by the buyer, loan tenure and the body funding availed. Considering a 10% down payment and 9.5% rate of interest, the EMI of Eicher 6016 H LP bus is expected to be around Rs 54350 for a 5 year period

Eicher 6016 H LP bus chassis price starts from Rs 25.58 Lakh* Onwards. The 2024 price of Eicher 6016 H LP bus chassis can vary slightly from state to state and city to city.

Eicher 6016 H LP bus GVW is 16200 Kg

Eicher 6016 H LP bus chassis can accomodate multiple seating options depending on the exact requirement. Eicher 6016 H LP bus chassis seating capacity will depend on the type of body being made and the application it is going to be used for like staff application, school, route permit etc, with each offering a different number of seats.

Eicher 6016 H LP bus comes with a 6 speed manual (6F+1R) transmission

Eicher 6016 H LP bus comes with Diesel fuel option and its fuel tank capacity is 250 Litres

The tyre size of Eicher 6016 H LP bus is 10R20 - 16 PR# 6+1 tyres

In terms of performance, Eicher 6016 H LP bus chassis produces a maximum power of 210 HP@2200 rpm and a maximum torque of 825 Nm@1200-1600 rpm
