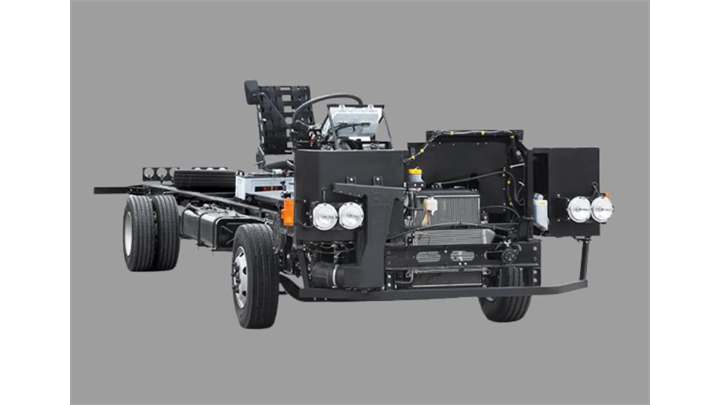

Key Details of Eicher Pro 3009 H Bus Chassis

Power
160
GVW
9800 Kg
Fuel
Diesel
Engine
3760 cc
Cylinders
4

Key Overview of Eicher Pro 3009 H Bus Chassis

  • Overall Length
    8693 mm
  • GVW (Kg)
    9800 Kg
  • Axle Configuration
    4x2
  • Engine
    E494
  • Power
    160 HP@2600 rpm
  • Torque
    500 Nm@1200-1800 rpm
  • Transmission
    6 speed manual (6F+1R)
  • Variants
    Chassis without face-cowl
  • Suitable Applications
    School, Staff, Tourist

Eicher Pro 3009 H Bus Chassis Highlights

With a gross weight of 9800 kg and wheelbase of 4320 mm, Eicher Pro 3009 H bus chassis is ideal for applications like school, staff, touristEicher Pro 3009 H bus chassis is customizable for body fabrication from your favourite body builders Powering this Eicher bus is 3760 cc 4 cylinder E494 engine It is powered by diesel fuel, produces a maximum power of 160 HP and a maximum torque of 500 Nm Doing the transmission duty is 6 speed manual (6F+1R) gearboxparabolic leaf springs in front and parabolic leaf springs in rear offers superior ride comfort to the passengers of this Eicher bus For driver and passenger safety in Eicher Pro 3009 H bus, Air Brakes take careIt competes with other vehicles in the segment like Tata LP 912 BS6 Bus and Eicher 2090 L BS6 Bus .

Frequently Asked Questions on Eicher Pro 3009 H Bus Chassis

Eicher Pro 3009 H bus chassis price starts from Rs 18.35-19.35 Lakh*. The 2023 price of Eicher Pro 3009 H bus chassis can vary slightly from state to state and city to city.
Eicher Pro 3009 H bus GVW is 9800 Kg
Eicher Pro 3009 H bus comes with a 6 speed manual (6F+1R) transmission
Eicher Pro 3009 H bus comes with Diesel fuel option and its fuel tank capacity is 100 Litres
Eicher Pro 3009 H bus chassis can accomodate multiple seating options depending on the exact requirement. Eicher Pro 3009 H bus chassis seating capacity will depend on the type of body being made and the application it is going to be used for like staff application, school, route permit etc, with each offering a different number of seats.
In terms of performance, Eicher Pro 3009 H bus chassis produces a maximum power of 160 HP@2600 rpm and a maximum torque of 500 Nm@1200-1800 rpm
The monthly EMI of any bus depends on the interest rate offered by bank, down payment made by the buyer, loan tenure and the body funding availed. Considering a 10% down payment and 9.5% rate of interest, the EMI of Eicher Pro 3009 H bus is expected to be around Rs 38988 for a 5 year period
The tyre size of Eicher Pro 3009 H bus is 235/75 R17.5# 6+1 tyres
