Compare Eicher Pro 3009 H vs Eicher Pro 3010 L

https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/4196_0c62f99f374c49fca9d8a5faa55ecaed4197_Eicher-Pro-3010L-Bus-Chassis.png

Eicher Pro 3009 H

https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/4197_60ac3f0bdced49509d76280dc6e236384197_Eicher-Pro-3010L-Bus-Chassis-removebg-preview.png

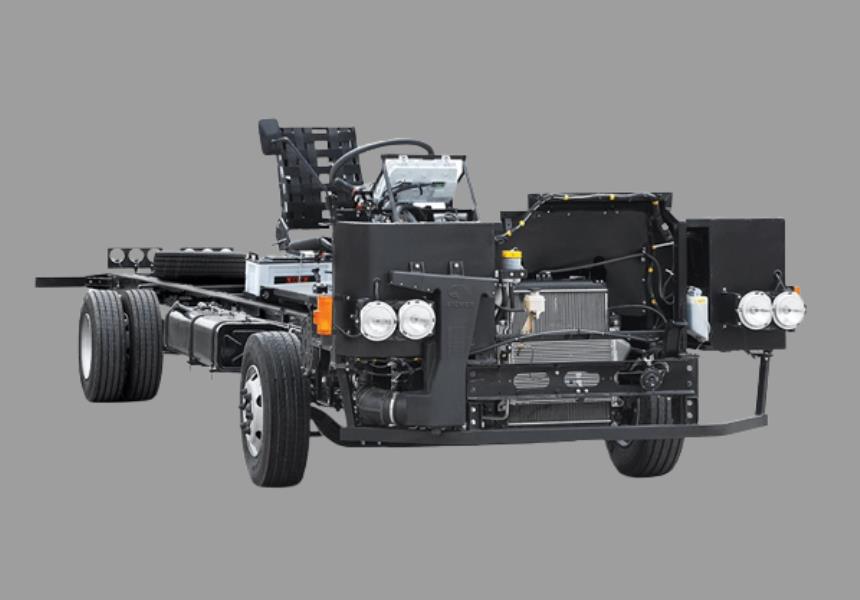

Eicher Pro 3010 L

Eicher Pro 3010 L

Overview
Power

160 HP@2600 rpm

160 HP@2600 rpm
Torque

500 Nm@1200-1800 rpm

500 Nm@1200-1800 rpm
Engine

E494

E494
GVW (Kg)

9800 Kg

10625 Kg
Over All Length

8693 mm

10159 mm

Engine & Performance
Engine

E494

E494
Power

160 HP@2600 rpm

160 HP@2600 rpm
Torque

500 Nm@1200-1800 rpm

500 Nm@1200-1800 rpm
Fuel Injection System

Common rail

Common rail
Displacement

3760 cc

3760 cc
Cylinders

4

4
Engine Location

Front

Front
Transmission

6 speed manual (6F+1R)

6 speed manual (6F+1R)
Gearbox

ET40S6 Synchromesh

ET40S6 Synchromesh
Clutch

330 mm dia

330 mm dia
Emission

BS6

BS6
Fuel Type

Diesel

Diesel
Fuel Tank

100 Litres

160 Litres
Battery

Non AC: 12V, 130Ah
AC: 24V, 130Ah x 2

Non AC: 12V, 130Ah
AC: 24V, 130Ah x 2

Design & Configuration
Variants

Chassis without face-cowl

Chassis without face-cowl
GVW

9800 Kg

10625 Kg
Axle Configuration

4x2

4x2
Chassis Frame

Domex frame

Domex frame
Front Suspension

Parabolic leaf springs

Parabolic leaf springs
Rear Suspension

Parabolic leaf springs

Parabolic leaf springs
Anti Roll Bar

Front only

Front only
Tyres

235/75 R17.5
6+1 tyres

235/75 R17.5
6+1 tyres
Wheelbase

4320 mm

5260 mm
Ground Clearance

165 mm

165 mm
Overall Length

8693 mm

10159 mm
Front Overhang

1918 mm

1918 mm
Rear Overhang

2455 mm

2981 mm

Features & Comfort
Steering Type

Power Steering

Power Steering
Steering Adjustment

Tilt and telescopic

Tilt and telescopic
Driver Seat

6 way adjustable

6 way adjustable
Instrument cluster

Digital instrument cluster

Digital instrument cluster
Automatic Transmission

Safety
Service Brakes

Air brakes

Air brakes
ABS
Anti Roll Bar

Front only

Front only
Tubeless Tyres
Retarder

Key Comparison of Eicher Pro 3009 H vs Eicher Pro 3010 L

Compare Eicher Pro 3009 H bus vs Eicher Pro 3010 L bus in detail at TrucksBuses.com ! Eicher Pro 3009 H bus with 3760 cc E494 engine gives a power of 160 HP@2600 rpm whereas Eicher Pro 3010 L bus produces 160 HP@2600 rpm of power and comes with a 3760 cc engine. The fuel tank capacity of Eicher Pro 3009 H bus is 100 Litres whereas Eicher Pro 3010 L bus is 160 Litres. You can check detailed bus comparison of Eicher Pro 3009 H bus and Eicher Pro 3010 L bus on the basis of engine, specifications, seating capacity, price, mileage and features.
