Compare Tata Prima 3530.K vs Tata Signa 3523.TK
Compare tata prima 3530 k vs Tata Signa 3523 TK
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/3945_tata-prima-3530-k-tipper.jpg]()
Tata Prima 3530.K
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/4308_067d7b2f4d084648ac6a716e779cbd834308_tata-signa-3523-tk-dumper-tipper-removebg-preview.jpg]()

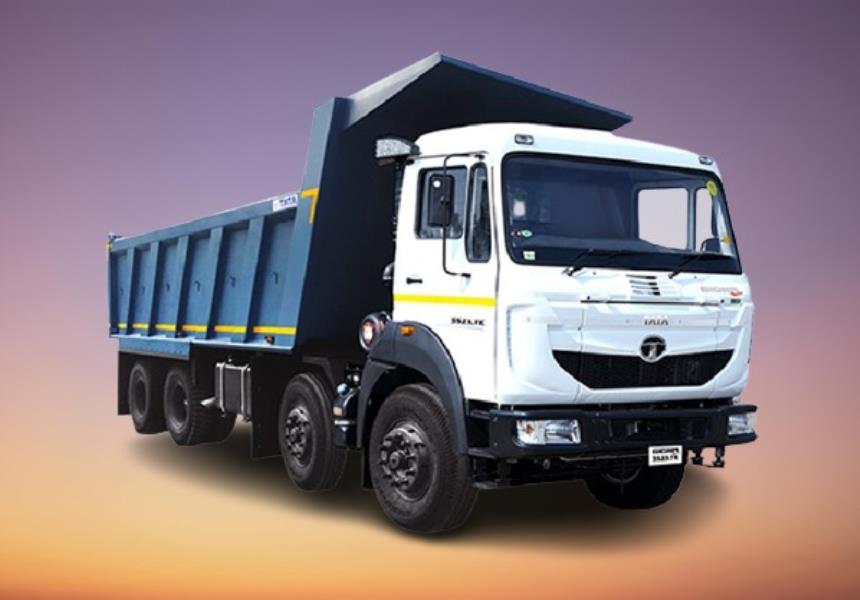

Tata Signa 3523.TK
-
Overviewof
-
GVW (Kg)
35000 Kg
35000 Kg
-
Axle Configuration
6x4
8x4
-
Engine
Cummins ISBe 6.7L
Cummins ISBe 5.6L
-
Power
300 HP@2300 rpm
220 HP@2300 rpm
-
Torque
1100 Nm@1100-1700 rpm
850 Nm@1000-1600 rpm
-
Transmission
9 speed (8F+1CR+1R)
9 speed (9F+1R)
-
Variants
Cabin with Box body# Cabin with Scoop body
Cabin and chassis# Cabin with Box body
-
Load Body Options
23 Cu.M Box body# 19 Cu.M Scoop body
20 Cu.M Box body
-
Warranty
6 Years / 6000 Hrs on driveline#3 Years / 3000 Hrs on vehicle
6 Years / 6000 Hrs on driveline
-
Additional
Gear Shift Advisor# 3 mode Fuel Economy Switch# Hill Start Assist
Gear Shift Advisor# Fuel Economy Switch# Hill Start Assist
-
Engine & Performanceof
-
Engine
Cummins ISBe 6.7L
Cummins ISBe 5.6L
-
Fuel Injection System
Common Rail
Common Rail
-
Engine Displacement
6692 cc
5635 cc
-
Engine Cylinders
6
6
-
Power
300 HP@2300 rpm
220 HP@2300 rpm
-
Torque
1100 Nm@1100-1700 rpm
850 Nm@1000-1600 rpm
-
Clutch
Single dry plate, 430 mm dia
380 mm dia# Organic
-
Transmission
9 speed (8F+1CR+1R)
9 speed (9F+1R)
-
Gearbox
ZF 1115TD
G1150
-
Gradeability
53% (crawler gear)
N/A
-
Max Speed
71 Kmph
N/A
-
Emission Norms Compliance
BS6
BS6
-
Fuel Type
Diesel
Diesel
-
Fuel Tank Capacity
300 Litres# Polymer tank# With anti-fuel theft
300 Litres# Polymer tank# With anti-fuel theft
-
Electricals Battery
2x12V,100 Ah
N/A
-
Design & Configurationof
-
GVW
35000 Kg
35000 Kg
-
Vehicle Configuration
Cabin with Box body# Cabin with Scoop body
Cabin and chassis# Cabin with Box body
-
Load Body Options
23 Cu.M Box body# 19 Cu.M Scoop body
20 Cu.M Box body
-
Cabin Type
Day cab
Day Cab
-
Cabin Tilt mechanism
Hydraulically tiltable
Hydraulically tiltable
-
Chassis Frame
Ladder type frame# With riveted / bolted cross members
Ladder type straight frame
-
Axle Configuration
6x4
8x4
-
Front Axle
Heavy duty straight axle
Forged I Beam, Reverse Elliot Type# Twin steerable axles
-
Rear Axle
Planetary Hub Reduction, Fully floating axle shafts
Single reduction, Hypoid gears, Fully Floating Axle# RA 109
-
Front Suspension
Parabolic leaf springs
Parabolic leaf springs
-
Rear Suspension
Bogie suspension
Semi elliptical leaf springs
-
Tyres
12x24 - 20 PR Mining
295/90R20# 12+1 tyres
-
Wheelbase
5250 mm
5580 mm
-
Features & Comfortof
-
Cabin Suspension
Fully Suspended
Fully suspended
-
Steering
Power Steering
Power Steering
-
Steering Adjustment
Tilt and telescopic
Tilt and telescopic
-
Driver Seat
High headrest seat#Mechanically suspended
6 way adjustable
-
Air Conditioner (AC)
Yes
Optional
-
Quarter Ventilation Glass
No
No
-
Instrument Cluster
Digital# With mileage indicator# Distance to empty
Digital# With mileage indicator# Distance to empty
-
Telematics
Yes
Yes
-
Music System
Touchscreen infotainment system (Optional)
Optional
-
Mobile Charging Point
Yes
Yes
-
Bottle Holder
Yes
Yes
-
Automatic Transmission
No
No
-
Cruise Control
No
No
Key Comparison of Tata Prima 3530.K vs Tata Signa 3523.TK
Compare Tata Prima 3530.K vs Tata Signa 3523.TK in detail at TrucksBuses.com ! You can check detailed truck comparison of Tata Prima 3530.K with Tata Signa 3523.TK on the basis of engine, specifications, payload, price, mileage and features. Tata Prima 3530.K with a gross weight of , gives a power of whereas Tata Signa 3523.TK produces of power and comes with a GVW of . Powering the Tata Prima 3530.K truck is cylinder, engine whereas Tata Signa 3523.TK gets powered by a cylinder, engine.
