Tata Ace Gold CNG High Deck specifications

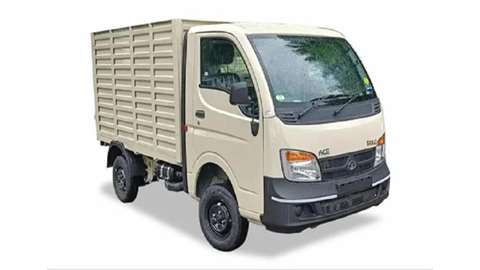

Tata Ace Gold CNG High Deck Mini Truck Images

Rate This Vehicle

From ₹ 6.2 Lakh* Onwards
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on Tata Ace Gold CNG High Deck Mini Truck for this month

Tata Ace Gold CNG High Deck - 4 Tyre Highlights

Power

GVW

1630 Kg

Fuel

CNG

Engine

702 cc

Cylinders

Key Specifications of Tata Ace Gold CNG High Deck Mini Truck

Engine
Configuration

Tata Ace Gold CNG High Deck Mini Truck Engine
Engine
Multipoint Gas Injection
Tata Ace Gold CNG High Deck Mini Truck Engine Displacement
Engine Displacement
702 cc
Tata Ace Gold CNG High Deck Mini Truck Engine Cylinders
Engine Cylinders
2
Tata Ace Gold CNG High Deck Mini Truck Power
Power
26 HP@4000 rpm
Tata Ace Gold CNG High Deck Mini Truck Torque
Torque
50 Nm@2500 rpm
Tata Ace Gold CNG High Deck Mini Truck Clutch
Clutch
Single plate dry clutch
Tata Ace Gold CNG High Deck Mini Truck Transmission
Transmission
5 speed (5F+1R)
Tata Ace Gold CNG High Deck Mini Truck Gearbox
Gearbox
GBS 65 Synchromesh
Tata Ace Gold CNG High Deck Mini Truck Gradeability
Gradeability
29%
Tata Ace Gold CNG High Deck Mini Truck Max Speed
Max Speed
70 Kmph
Tata Ace Gold CNG High Deck Mini Truck Emission Norms Compliance
Emission Norms Compliance
BS6 OBD2
Tata Ace Gold CNG High Deck Mini Truck Fuel Type
Fuel Type
CNG
Tata Ace Gold CNG High Deck Mini Truck Fuel Tank Capacity
Fuel Tank Capacity
70 Litres

Tata Ace Gold CNG High Deck Mini Truck GVW
GVW
1630 Kg
Tata Ace Gold CNG High Deck Mini Truck Payload
Payload
640 Kg
Tata Ace Gold CNG High Deck Mini Truck Vehicle Configuration
Vehicle Configuration
Cabin with High Deck body
Tata Ace Gold CNG High Deck Mini Truck Seating Capacity
Seating Capacity
D+1
Tata Ace Gold CNG High Deck Mini Truck Axle Configuration
Axle Configuration
4x2
Tata Ace Gold CNG High Deck Mini Truck Front Suspension
Front Suspension
Rigid axle with parabolic leaf spring
Tata Ace Gold CNG High Deck Mini Truck Rear Suspension
Rear Suspension
Parabolic leaf spring
With hydraulic telescopic shock absorbers
Tata Ace Gold CNG High Deck Mini Truck Anti Roll Bar
Anti Roll Bar
No
Tata Ace Gold CNG High Deck Mini Truck Tyres
Tyres
145 R 12 LT 8 PR
Tata Ace Gold CNG High Deck Mini Truck Wheelbase
Wheelbase
2250 mm
Tata Ace Gold CNG High Deck Mini Truck Turning Circle Diameter
Turning Circle Diameter
9.25 m
Tata Ace Gold CNG High Deck Mini Truck Ground Clearance
Ground Clearance
160 mm
Tata Ace Gold CNG High Deck Mini Truck Overall Length
Overall Length
4075 mm
Tata Ace Gold CNG High Deck Mini Truck Overall Width
Overall Width
1500 mm
Tata Ace Gold CNG High Deck Mini Truck Overall Height
Overall Height
1850 mm
Tata Ace Gold CNG High Deck Mini Truck Front Track
Front Track
1300 mm
Tata Ace Gold CNG High Deck Mini Truck Rear Track
Rear Track
1320 mm
Tata Ace Gold CNG High Deck Mini Truck Load Body Dimensions
Load Body Dimensions
8.2 x 4.9 ft

Tata Ace Gold CNG High Deck Mini Truck Specification Highlights

New Tata Ace Gold CNG High Deck mini truck specs are their equipped Multipoint Gas Injection engine with 702 cc displacement which Matched with a 5-speed (5F+1R) transmission. If we talk about the loading capacity then Ace Gold CNG High Deck mini truck of Tata Mini truck manufacturer has a payload of 640 kg with a GVW of 1630 kg. Latest Tata Ace Gold CNG High Deck overall length is 4075 mm and it has a superior body size of 8.2 x 4.9 feet. The Ace Gold CNG High Deck mini truck comes with company fitted tyres size of 145 R 12 LT 8 PR that offers a superior 160 mm ground clearance.
