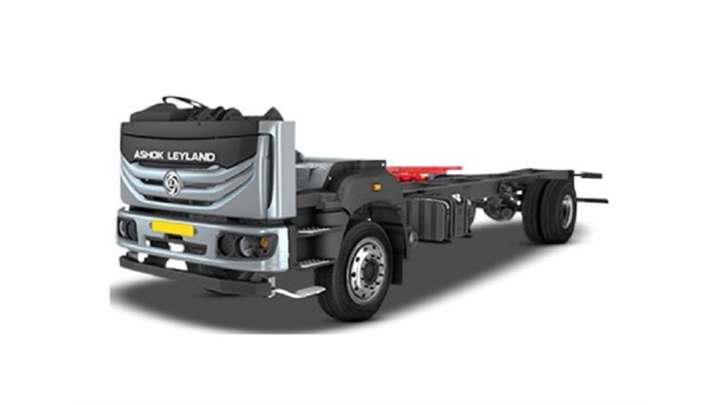

Ashok Leyland 1620 BS6 truck specifications

Name: Ashok Leyland 1620
Brand: Ashok Leyland
SKU: TBN-20-7C6309

Rate This Vehicle

From ₹ 21.10-22.30 Lakh*
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on Ashok Leyland 1620 Truck for this month

Download Ashok Leyland 1620 Truck Brochure

Check out the Ashok Leyland 1620 Truck PDF brochure at TrucksBuses.com with all features and specifications.

Ashok Leyland 1620 - 6 Tyre Truck Highlights

Power

200

GVW

16200 Kg

Fuel

Diesel

Engine

5660 cc

Cylinders

Key Specifications of Ashok Leyland 1620 Truck

Engine
Configuration

Ashok Leyland 1620 Truck Engine
Engine
H series CRS
iGen-6 technology
Ashok Leyland 1620 Truck Fuel Injection System
Fuel Injection System
Common Rail
Ashok Leyland 1620 Truck Engine Displacement
Engine Displacement
5660 cc
Ashok Leyland 1620 Truck Engine Cylinders
Engine Cylinders
6
Ashok Leyland 1620 Truck Power
Power
200 HP@2400 rpm
Ashok Leyland 1620 Truck Torque
Torque
700 Nm@1200-2000 rpm
Ashok Leyland 1620 Truck Clutch
Clutch
380 mm dia
Organic
With clutch booster
Ashok Leyland 1620 Truck Transmission
Transmission
6 speed (6F+1R)
With cable shift
Ashok Leyland 1620 Truck Gearbox
Gearbox
ZF S6 36
Ashok Leyland 1620 Truck Gradeability
Gradeability
30.50%
Ashok Leyland 1620 Truck Max Speed
Max Speed
80 Kmph
Ashok Leyland 1620 Truck Emission Norms Compliance
Emission Norms Compliance
BS6
Ashok Leyland 1620 Truck Fuel Type
Fuel Type
Diesel
Ashok Leyland 1620 Truck Fuel Tank Capacity
Fuel Tank Capacity
Diesel: 350 Litres
Ad Blue: 24 Litres
Ashok Leyland 1620 Truck Electricals Battery
Electricals Battery
24V, 2x110 Ah

Ashok Leyland 1620 Truck GVW
GVW
16200 Kg
Ashok Leyland 1620 Truck Vehicle Configuration
Vehicle Configuration
Cowl with Chassis
Ashok Leyland 1620 Truck Loading Span
Loading Span
33 ft
Ashok Leyland 1620 Truck Cabin Type
Cabin Type
Sleeper cabin
Ashok Leyland 1620 Truck Chassis Frame
Chassis Frame
HSFQ 700 material, bolted construction
Ashok Leyland 1620 Truck Axle Configuration
Axle Configuration
4x2
Ashok Leyland 1620 Truck Front Axle
Front Axle
Forged I Beam, Reverse Elliot Type
Ashok Leyland 1620 Truck Rear Axle
Rear Axle
Fully floating, Single speed
RAR 4.88
Ashok Leyland 1620 Truck Front Suspension
Front Suspension
Semi elliptical leaf springs
Ashok Leyland 1620 Truck Rear Suspension
Rear Suspension
Semi elliptical leaf springs
Ashok Leyland 1620 Truck Tyres
Tyres
295/90R20 (Tube)
6+1 tyres
Ashok Leyland 1620 Truck Wheelbase
Wheelbase
6100 mm
Ashok Leyland 1620 Truck Turning Circle Diameter
Turning Circle Diameter
22 m
Ashok Leyland 1620 Truck Ground Clearance
Ground Clearance
249 mm
Ashok Leyland 1620 Truck Overall Length
Overall Length
11998 mm
Ashok Leyland 1620 Truck Front Overhang
Front Overhang
2265 mm
Ashok Leyland 1620 Truck Rear Overhang
Rear Overhang
3633 mm
Ashok Leyland 1620 Truck Front Track
Front Track
1984 mm
Ashok Leyland 1620 Truck Rear Track
Rear Track
1816 mm
Ashok Leyland 1620 Truck Chassis Depth
Chassis Depth
228 mm
Ashok Leyland 1620 Truck Chassis Flange width
Chassis Flange width
75 mm
Ashok Leyland 1620 Truck Chassis Thickness
Chassis Thickness
6 mm

Ashok Leyland 1620 Truck Specification Highlights

Let us explore the latest specifications of Ashok Leyland 1620 truck model. The new Ashok Leyland 1620 truck engine displacement is 5660 cc with 6 cylinders, which produces a horsepower of 200 with a torque of 700 Nm. 6 wheeler Ashok Leyland 1620 truck has gross vehicle weight of 16.2 tonnes. The new 6-wheeler 1620 truck has an optional 6-speed gearbox transmission with a maximum speed of 80 kilometres per hour. The latest 6-wheeler Leyland 1620 truck has a fuel tank capacity of 350 litres. In the table above, you can also check the other specs such as cabin type, axle configuration, electricals, battery and loading span.
