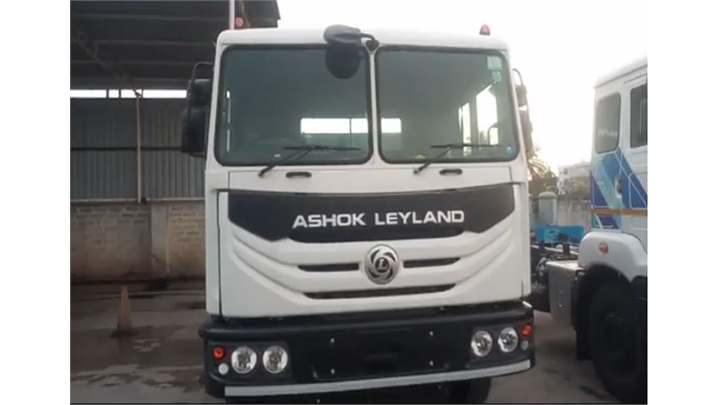

Ashok Leyland 4825 HD HM H-Series Truck Specifications

*Ex - showroom Price of Ashok Leyland 4825 HD HM H-Series Truck is 48.50-52.35 Lakh*

From ₹ 48.50-52.35 Lakh*
*Ex-showroom Price


Don't miss out on the best discount offers on Ashok Leyland 4825 HD HM H-Series Truck for this month

Ashok Leyland 4825 HD 10x2 DTLA HM H-Series - 16 Tyre Truck Highlights

Power
246
GVW
47500 Kg
Fuel
Diesel
Engine
5660 cc
Cylinders
6

Key Specifications of Ashok Leyland 4825 HD HM H-Series Truck

  • Engine
    H series BSVI
    iGen6 technology
  • Fuel Injection System
    Common Rail
  • Engine Displacement
    5660 cc
  • Engine Cylinders
    6
  • Power
    246 HP@2400 rpm
  • Torque
    900 Nm@1200-1900 rpm
  • Clutch
    430 mm dia
    With air assisted hydraulic booster
  • Transmission
    9 speed (9F+1R)
  • Gearbox
    Synchromesh
  • Max Speed
    80 Kmph
    For POL variants: 60 Kmph
  • Emission Norms Compliance
    BS6
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    Diesel: 375 Litres (diesel)
    48 Litres (DEF)
  • Electricals Battery
    24V, 120 Ah
  • GVW
    47500 Kg
  • Vehicle Configuration
    M Cabin with chassis
    Cabin with load body
  • Loading Span
    28 ft
    31 ft
  • Cabin Type
    M Economy sleeper cabin
  • Chassis Frame
    HSS material with new improved design
  • Axle Configuration
    10x2
  • Front Axle
    Forgerd I Section - Reverse Elliot Type
  • Rear Axle
    Fully floating, Single speed
  • Front Suspension
    Parabolic springs
    Optional : Semi elliptic multi leaf
  • Rear Suspension
    Non reactive
  • Tyres
    295/90R20
    295/80R22.5 (Optional)
  • Wheelbase
    6600 mm
  • Turning Circle Diameter
    23.7 m
  • Overall Length
    11560 mm
  • Overall Width
    2570 mm

Ashok Leyland 4825 HD HM H-Series Truck Specification Highlights

This specifications section of TruckesBuses is dedicated in providing you with all the correct specifications of this Ashok Leyland 4825 HD HM H series truck. This truck is equipped with a powerful engine of 246 horsepower. This Ashok Leyland truck has an engine displacement of 5660 cc, and also produces a high-end torque of 900 Nm. The New Ashok Leyland 4825 HD HM H series truck also has a common rail fuel injection system that runs on diesel fuel with superior mileage and has a diesel fuel tank capacity of 375 liters and a DEF tank capacity of 48 litres. A 9-speed gearbox is provided to control its power transmission. Its maximum speed in diesel variants is 80 kmph and in POL variants is 60 kmph. This Ashok Leyland truck follows all the BS6 emission norms. Ashok Leyland 4825 HD HM H series truck front axle is a forged section reverse elliot type and rear axle is fully floating single speed. It has a front suspension of parabolic springs and optional semi-elliptic multi-leaf. It has a hydraulically tiltable cabin also you can compare these specifications with its comparative vehicles in the compare section.

Frequently Asked Questions on Ashok Leyland 4825 HD HM H-Series Truck

Ashok Leyland 4825 HD 10x2 DTLA HM H-Series is available in multiple body options of 11560 mm

Ashok Leyland 4825 HD 10x2 DTLA HM H-Series comes with Full air dual line brakes with ABS

The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Ashok Leyland 4825 HD 10x2 DTLA HM H-Series is expected to be around Rs Not Available for a 5 year period

The tyre size of Ashok Leyland 4825 HD 10x2 DTLA HM H-Series is 295/90R20# 295/80R22.5 (Optional)

GVW of any truck is the sum total of empty kerb weight and the payload it can carry. Ashok Leyland 4825 HD 10x2 DTLA HM H-Series GVW is 47500 Kg

Ashok Leyland 4825 HD 10x2 DTLA HM H-Series comes with 6 cylinder H series BSVI# iGen6 technology engine and the engine displacement is 5660 cc

In terms of performance, Ashok Leyland 4825 HD 10x2 DTLA HM H-Series produces a maximum power of 246 HP@2400 rpm and a maximum torque of 900 Nm@1200-1900 rpm

Ashok Leyland 4825 HD 10x2 DTLA HM H-Series comes with a 9 speed (9F+1R) transmission along with a 430 mm dia# With air assisted hydraulic booster clutch

Ashok Leyland 4825 HD 10x2 DTLA HM H-Series comes with Diesel fuel option and its fuel tank capacity is Diesel: 375 Litres (diesel)# 48 Litres (DEF)
