Ashok Leyland Ecomet 1615 Sleeper HE BS6 truck specifications

Name: Ashok Leyland Ecomet 1615 Sleeper HE
Brand: Ashok Leyland
SKU: TBN-20-922382

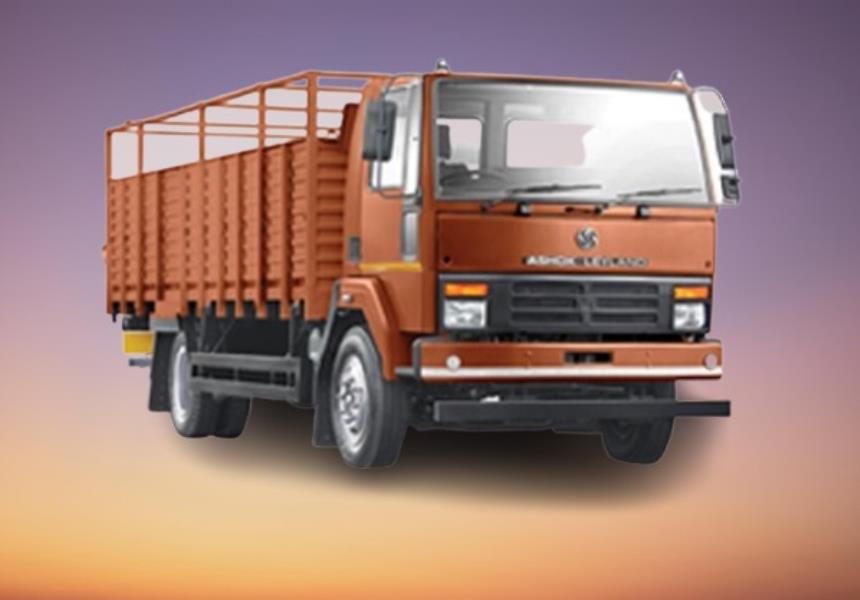

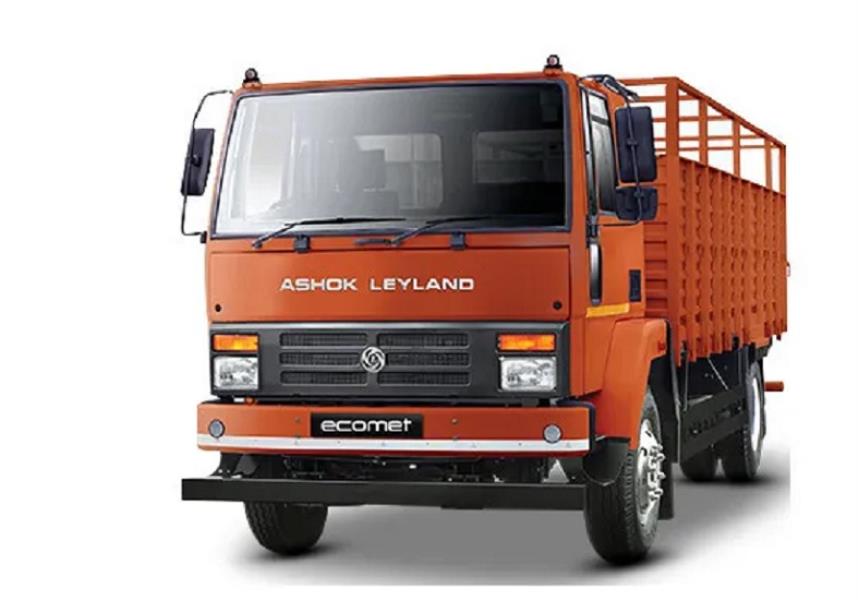

Ashok Leyland Ecomet 1615 Sleeper HE Truck Images

Rate This Vehicle

From ₹ 23.62-26.05 Lakh*
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on Ashok Leyland Ecomet 1615 Sleeper HE Truck for this month

Download Ashok Leyland Ecomet 1615 Sleeper HE Truck Brochure

Check out the Ashok Leyland Ecomet 1615 Sleeper HE Truck PDF brochure at TrucksBuses.com with all features and specifications.

Ashok Leyland Ecomet 1615 Sleeper HE - 6 Wheeler Truck Highlights

Power

150

GVW

16100 Kg

Fuel

Diesel

Engine

3839 cc

Cylinders

Key Specifications of Ashok Leyland Ecomet 1615 Sleeper HE Truck

Engine
Configuration

Ashok Leyland Ecomet 1615 Sleeper HE Truck Engine
Engine
H series CRS
iGen-6 technology
Ashok Leyland Ecomet 1615 Sleeper HE Truck Fuel Injection System
Fuel Injection System
Common Rail
Ashok Leyland Ecomet 1615 Sleeper HE Truck Engine Displacement
Engine Displacement
3839 cc
Ashok Leyland Ecomet 1615 Sleeper HE Truck Engine Cylinders
Engine Cylinders
4
Ashok Leyland Ecomet 1615 Sleeper HE Truck Power
Power
150 HP@2400 rpm
Ashok Leyland Ecomet 1615 Sleeper HE Truck Torque
Torque
450 Nm@1250-2000 rpm
Ashok Leyland Ecomet 1615 Sleeper HE Truck Clutch
Clutch
330 mm dia
With clutch booster
Ashok Leyland Ecomet 1615 Sleeper HE Truck Transmission
Transmission
6 speed (6F+1R)
With cable shift
Ashok Leyland Ecomet 1615 Sleeper HE Truck Gearbox
Gearbox
Synchromesh
Ashok Leyland Ecomet 1615 Sleeper HE Truck Max Speed
Max Speed
80 Kmph
Ashok Leyland Ecomet 1615 Sleeper HE Truck Emission Norms Compliance
Emission Norms Compliance
BS6
Ashok Leyland Ecomet 1615 Sleeper HE Truck Fuel Type
Fuel Type
Diesel
Ashok Leyland Ecomet 1615 Sleeper HE Truck Fuel Tank Capacity
Fuel Tank Capacity
Diesel: 185 Litres
Ad Blue: 24 Litres
Ashok Leyland Ecomet 1615 Sleeper HE Truck Electricals Battery
Electricals Battery
12V, 120 Ah
Alternator: 90 Amps

Ashok Leyland Ecomet 1615 Sleeper HE Truck GVW
GVW
16100 Kg
Ashok Leyland Ecomet 1615 Sleeper HE Truck Vehicle Configuration
Vehicle Configuration
Cabin and chassis
Cabin with load body
Ashok Leyland Ecomet 1615 Sleeper HE Truck Load Body Options
Load Body Options
Fixed Side Deck
Drop Side Deck
High Side Deck
Ashok Leyland Ecomet 1615 Sleeper HE Truck Loading Span
Loading Span
17 ft
20 ft
22 ft
Ashok Leyland Ecomet 1615 Sleeper HE Truck Cabin Type
Cabin Type
Sleeper cabin
Ashok Leyland Ecomet 1615 Sleeper HE Truck Cabin Tilt mechanism
Cabin Tilt mechanism
Manually tiltable
Ashok Leyland Ecomet 1615 Sleeper HE Truck Chassis Frame
Chassis Frame
Bolted ladder type
Ashok Leyland Ecomet 1615 Sleeper HE Truck Axle Configuration
Axle Configuration
4x2
Ashok Leyland Ecomet 1615 Sleeper HE Truck Front Axle
Front Axle
Forged I Beam, Reverse Elliot Type
Ashok Leyland Ecomet 1615 Sleeper HE Truck Rear Axle
Rear Axle
Fully floating single speed
Hypoid axle
RAR 6.17
Ashok Leyland Ecomet 1615 Sleeper HE Truck Front Suspension
Front Suspension
Semi elliptical leaf springs
Ashok Leyland Ecomet 1615 Sleeper HE Truck Rear Suspension
Rear Suspension
Semi elliptical leaf springs
Ashok Leyland Ecomet 1615 Sleeper HE Truck Tyres
Tyres
9R20 - 16 PR
6+1 tyres
Ashok Leyland Ecomet 1615 Sleeper HE Truck Wheelbase
Wheelbase
4200 mm
4750 mm
5200 mm
Ashok Leyland Ecomet 1615 Sleeper HE Truck Turning Circle Diameter
Turning Circle Diameter
17 m (17 ft body)
18.5 m (20 ft)
19.1 m (22 ft)
Ashok Leyland Ecomet 1615 Sleeper HE Truck Ground Clearance
Ground Clearance
232 mm
Ashok Leyland Ecomet 1615 Sleeper HE Truck Overall Length
Overall Length
7663 mm (17 ft body)
8558 mm (20 ft)
9283 mm (22 ft)
Ashok Leyland Ecomet 1615 Sleeper HE Truck Overall Width
Overall Width
2390 mm (body)
Ashok Leyland Ecomet 1615 Sleeper HE Truck Overall Height
Overall Height
3230 mm
Ashok Leyland Ecomet 1615 Sleeper HE Truck Front Track
Front Track
1964 mm
Ashok Leyland Ecomet 1615 Sleeper HE Truck Rear Track
Rear Track
1816 mm
Ashok Leyland Ecomet 1615 Sleeper HE Truck Chassis Depth
Chassis Depth
204 mm
Ashok Leyland Ecomet 1615 Sleeper HE Truck Chassis Flange width
Chassis Flange width
76 mm
Ashok Leyland Ecomet 1615 Sleeper HE Truck Chassis Thickness
Chassis Thickness
6 mm

Ashok Leyland Ecomet 1615 Sleeper HE Truck Specification Highlights

Check all the Ashok Leyland Ecomet 1615 Sleeper HE specifications on TrucksBuses in the table above The main driveline of this Ashok Leyland truck includes a 3839 cc 4 cylinder engine that produces a maximum power of 150 HP and a torque of 450 Nm It gets mated to 6 speed (6F+1R), With cable shift, Synchromesh gearbox A gross weight of 16100 kg and multiple configurations allows the owner to carry multiple kinds of goods as per requirement There are multiple features in this Ashok Leyland truck for enhancing driver comfort Other Ashok Leyland Ecomet 1615 Sleeper HE truck specifications like chassis, tyre, axle, turning circle dia, engine cc, gradeability are available here in the tables above.
