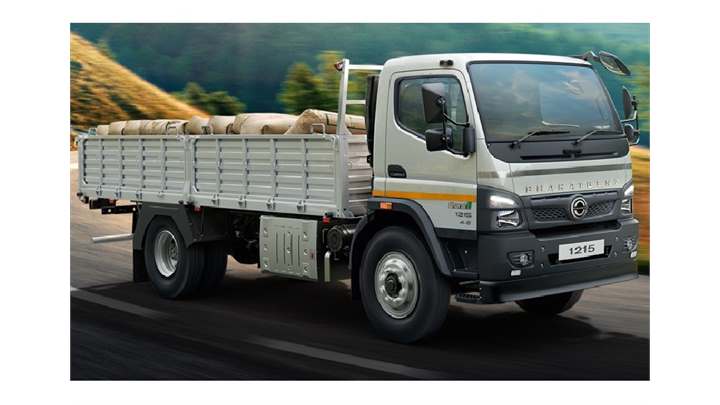

BharatBenz 1215RE BS6 truck specifications

Name: BharatBenz 1215RE
Brand: BharatBenz
SKU: TBN-20-F14192

Rate This Vehicle

From ₹ 23.11-24.89 Lakh*
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on BharatBenz 1215RE Truck for this month

Download BharatBenz 1215RE Truck Brochure

Check out the BharatBenz 1215RE Truck PDF brochure at TrucksBuses.com with all features and specifications.

BharatBenz 1215RE - 6 Wheeler Truck Highlights

Power

147

GVW

13000 Kg

Fuel

Diesel

Engine

3907 cc

Cylinders

Key Specifications of BharatBenz 1215RE Truck

Engine
Configuration

BharatBenz 1215RE Truck Engine
Engine
4D34i
BharatBenz 1215RE Truck Fuel Injection System
Fuel Injection System
Unitised fuel injection pump
BharatBenz 1215RE Truck Engine Displacement
Engine Displacement
3907 cc
BharatBenz 1215RE Truck Engine Cylinders
Engine Cylinders
4
BharatBenz 1215RE Truck Power
Power
147 HP
BharatBenz 1215RE Truck Torque
Torque
460 Nm
BharatBenz 1215RE Truck Clutch
Clutch
362 mm dia
With clutch booster
BharatBenz 1215RE Truck Transmission
Transmission
6 speed (6F+1R)
With cable shift
BharatBenz 1215RE Truck Gearbox
Gearbox
G85, Synchromesh
BharatBenz 1215RE Truck Gradeability
Gradeability
26.3% (4.56 RAR)
38.2% (Remaining RAR)
BharatBenz 1215RE Truck Max Speed
Max Speed
80 Kmph
BharatBenz 1215RE Truck Emission Norms Compliance
Emission Norms Compliance
BS6
BharatBenz 1215RE Truck Fuel Type
Fuel Type
Diesel
BharatBenz 1215RE Truck Fuel Tank Capacity
Fuel Tank Capacity
Diesel: 171/214 Litres
Ad Blue: 43 / 36 Litres
With diesel anti-theft strain
BharatBenz 1215RE Truck Electricals Battery
Electricals Battery
24V, 75 Ah/100Ah

BharatBenz 1215RE Truck GVW
GVW
13000 Kg
BharatBenz 1215RE Truck Payload
Payload
8 Tons* (20 ft HSD)
BharatBenz 1215RE Truck Vehicle Configuration
Vehicle Configuration
Cabin and chassis
Cabin with load body
BharatBenz 1215RE Truck Load Body Options
Load Body Options
Fixed Side Deck
Drop Side Deck
High Side Deck
BharatBenz 1215RE Truck Loading Span
Loading Span
20 ft
22 ft
24 ft
BharatBenz 1215RE Truck Cabin Type
Cabin Type
Day cab
BharatBenz 1215RE Truck Cabin Tilt mechanism
Cabin Tilt mechanism
Manually tiltable
BharatBenz 1215RE Truck Chassis Frame
Chassis Frame
Ladder type channel with cross members
BharatBenz 1215RE Truck Axle Configuration
Axle Configuration
4x2
BharatBenz 1215RE Truck Front Axle
Front Axle
IF 4.5, Reverse Elliot Type
BharatBenz 1215RE Truck Rear Axle
Rear Axle
DANA S 145
BharatBenz 1215RE Truck Front Suspension
Front Suspension
Semi elliptical leaf springs
BharatBenz 1215RE Truck Rear Suspension
Rear Suspension
Semi elliptical leaf springs
BharatBenz 1215RE Truck Anti Roll Bar
Anti Roll Bar
Front and Rear (Optional)
BharatBenz 1215RE Truck Tyres
Tyres
8.25R20 Radial
Nylon Optional
6+1 tyres
BharatBenz 1215RE Truck Wheelbase
Wheelbase
4250 mm
4800 mm
5050 mm
BharatBenz 1215RE Truck Turning Circle Diameter
Turning Circle Diameter
15.7 m (4250 wb)
17.6 m (4800 wb)
19.7 m (5050 wb)
BharatBenz 1215RE Truck Ground Clearance
Ground Clearance
225 mm
BharatBenz 1215RE Truck Overall Length
Overall Length
8030 mm (4250 wb)
8580 mm (4800 wb)
9295 mm (5050 wb)
BharatBenz 1215RE Truck Overall Width
Overall Width
2135 mm
BharatBenz 1215RE Truck Overall Height
Overall Height
2420 mm
BharatBenz 1215RE Truck Front Overhang
Front Overhang
1275 mm
BharatBenz 1215RE Truck Rear Overhang
Rear Overhang
2505 mm (4250, 4800 wb)
2970 mm (5050 wb)
BharatBenz 1215RE Truck Chassis Depth
Chassis Depth
228 mm
BharatBenz 1215RE Truck Chassis Flange width
Chassis Flange width
80 mm
BharatBenz 1215RE Truck Chassis Thickness
Chassis Thickness
6 mm

BharatBenz 1215RE Truck Specification Highlights

Check all the BharatBenz 1215RE specifications on TrucksBuses in the table above The main driveline of this BharatBenz truck includes a 3907 cc 4 cylinder engine that produces a maximum power of and a torque of It gets mated to 6 speed (6F+1R), With cable shift, G85, Synchromesh gearbox A gross weight of 13000 kg and multiple configurations allows the owner to carry multiple kinds of goods as per requirement There are multiple features in this BharatBenz truck for enhancing driver comfort Other BharatBenz 1215RE truck specifications like chassis, tyre, axle, turning circle dia, engine cc, gradeability are available here in the tables above.
