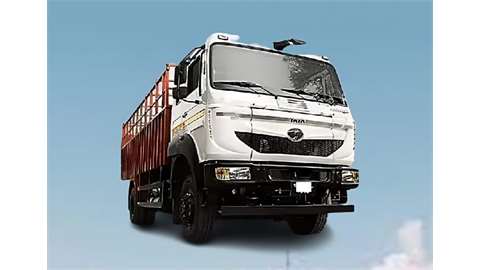

Tata Signa 1923 TC truck specifications

Name: Tata Signa 1923 TC
Brand: Tata
SKU: TBN-20-96EC44

Rate This Vehicle

From ₹ 35.40-35.90 Lakh*
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on Tata Signa 1923 TC Truck for this month

Tata Signa 1923 TC - 6 Tyre Truck Highlights

Power

230

GVW

18500 Kg

Fuel

Diesel

Engine

5635 cc

Cylinders

Key Specifications of Tata Signa 1923 TC Truck

Engine
Configuration

Tata Signa 1923 TC Truck Engine
Engine
Cummins 5.6L
Tata Signa 1923 TC Truck Fuel Injection System
Fuel Injection System
Common Rail
Tata Signa 1923 TC Truck Engine Displacement
Engine Displacement
5635 cc
Tata Signa 1923 TC Truck Engine Cylinders
Engine Cylinders
6
Tata Signa 1923 TC Truck Power
Power
230 HP
Tata Signa 1923 TC Truck Torque
Torque
850 Nm
Tata Signa 1923 TC Truck Transmission
Transmission
6 speed (6F+1R)
Tata Signa 1923 TC Truck Gearbox
Gearbox
Synchromesh
Tata Signa 1923 TC Truck Max Speed
Max Speed
80 Kmph
Tata Signa 1923 TC Truck Emission Norms Compliance
Emission Norms Compliance
BS6 OBD2
Tata Signa 1923 TC Truck Fuel Type
Fuel Type
Diesel
Tata Signa 1923 TC Truck Fuel Tank Capacity
Fuel Tank Capacity
365 Litres
365+365 Litres (32 ft)
Polymer tank
With anti-fuel theft

Tata Signa 1923 TC Truck Load Body Options
Load Body Options
HIgh Side Deck
Tata Signa 1923 TC Truck Loading Span
Loading Span
18 ft
20 ft
24 ft
32 ft
Tata Signa 1923 TC Truck Cabin Type
Cabin Type
Sleeper cabin
Tata Signa 1923 TC Truck Cabin Tilt mechanism
Cabin Tilt mechanism
Hydraulically tiltable
Tata Signa 1923 TC Truck Chassis Frame
Chassis Frame
Ladder type straight frame
Tata Signa 1923 TC Truck Axle Configuration
Axle Configuration
4x2
Tata Signa 1923 TC Truck Front Axle
Front Axle
Forged I Beam, Reverse Elliot Type
Tata Signa 1923 TC Truck Rear Axle
Rear Axle
Single reduction
Tata Signa 1923 TC Truck Front Suspension
Front Suspension
Parabolic leaf springs
Tata Signa 1923 TC Truck Rear Suspension
Rear Suspension
Semi elliptical leaf springs
Tata Signa 1923 TC Truck Tyres
Tyres
295/90R20 (Tube)
6+1 tyres
Tata Signa 1923 TC Truck Wheelbase
Wheelbase
4225 mm
4855 mm
5195 mm
6750 mm
Tata Signa 1923 TC Truck Overall Length
Overall Length
7380 mm (4225 wb)
9495 mm (5195 mm)
11945 mm (6800 wb)
Tata Signa 1923 TC Truck Overall Width
Overall Width
2440 mm
Tata Signa 1923 TC Truck Front Overhang
Front Overhang
1185 mm
Tata Signa 1923 TC Truck Rear Overhang
Rear Overhang
1970 mm (4225 wb)
3115 mm (5195 wb)
Tata Signa 1923 TC Truck Front Track
Front Track
1933 mm
Tata Signa 1923 TC Truck Rear Track
Rear Track
1809 mm
Tata Signa 1923 TC Truck Chassis Depth
Chassis Depth
285 mm
Tata Signa 1923 TC Truck Chassis Flange width
Chassis Flange width
65 mm
Tata Signa 1923 TC Truck Chassis Thickness
Chassis Thickness
6 mm
Tata Signa 1923 TC Truck GVW
GVW
18500 Kg
Tata Signa 1923 TC Truck Payload
Payload
11-12 Tons*
Tata Signa 1923 TC Truck Vehicle Configuration
Vehicle Configuration
Cabin and chassis
Cabin with load body

Tata Signa 1923 TC Truck Specification Highlights

Check all the Tata Signa 1923 TC specifications on TrucksBuses in the table above The main driveline of this Tata truck includes a 5635 cc 6 cylinder engine that produces a maximum power of and a torque of It gets mated to 6 speed (6F+1R), Synchromesh gearbox A gross weight of 18500 kg and multiple configurations allows the owner to carry multiple kinds of goods as per requirement There are multiple features in this Tata truck for enhancing driver comfort Other Tata Signa 1923 TC truck specifications like chassis, tyre, axle, turning circle dia, engine cc, gradeability are available here in the tables above.
