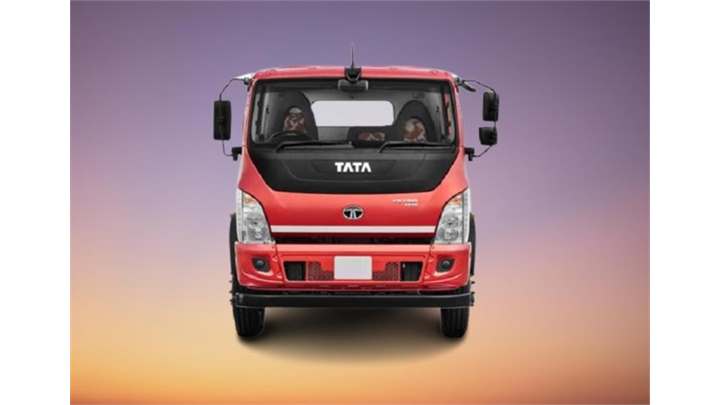

Tata Ultra 2821.T BS6 truck specifications

Name: Tata Ultra 2821.T
Brand: Tata
SKU: TBN-20-7C8319

Rate This Vehicle

From ₹ 34.55 Lakh* Onwards
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on Tata Ultra 2821.T Truck for this month

Download Tata Ultra 2821.T Truck Brochure

Check out the Tata Ultra 2821.T Truck PDF brochure at TrucksBuses.com with all features and specifications.

Tata Ultra 2821.T - 10 Tyre Truck Highlights

Power

197

GVW

28000 Kg

Fuel

Diesel

Engine

5005 cc

Cylinders

Key Specifications of Tata Ultra 2821.T Truck

Engine
Configuration

Tata Ultra 2821.T Truck Engine
Engine
5L Turbotronn
Tata Ultra 2821.T Truck Fuel Injection System
Fuel Injection System
Common Rail
Tata Ultra 2821.T Truck Engine Displacement
Engine Displacement
5005 cc
Tata Ultra 2821.T Truck Engine Cylinders
Engine Cylinders
4
Tata Ultra 2821.T Truck Power
Power
197 HP@2300 rpm
Tata Ultra 2821.T Truck Torque
Torque
850 Nm@1000-1600 rpm
Tata Ultra 2821.T Truck Clutch
Clutch
380 mm dia
Tata Ultra 2821.T Truck Transmission
Transmission
6 speed (6F+1R)
Dashboard mounted gear lever
Tata Ultra 2821.T Truck Gearbox
Gearbox
G750
Tata Ultra 2821.T Truck Max Speed
Max Speed
80 Kmph
Tata Ultra 2821.T Truck Emission Norms Compliance
Emission Norms Compliance
BS6
Tata Ultra 2821.T Truck Fuel Type
Fuel Type
Diesel
Tata Ultra 2821.T Truck Fuel Tank Capacity
Fuel Tank Capacity
350 Litres
350+350 Litres (32 ft)
Polymer tank
With anti-fuel theft

Tata Ultra 2821.T Truck GVW
GVW
28000 Kg
Tata Ultra 2821.T Truck Vehicle Configuration
Vehicle Configuration
Cabin and chassis
Cabin with load body
Tata Ultra 2821.T Truck Load Body Options
Load Body Options
Fixed Side Deck
High Side Deck
Container
Tata Ultra 2821.T Truck Loading Span
Loading Span
24 ft
32 ft
Tata Ultra 2821.T Truck Cabin Type
Cabin Type
Sleeper cabin
Tata Ultra 2821.T Truck Cabin Tilt mechanism
Cabin Tilt mechanism
Hydraulically tiltable
Tata Ultra 2821.T Truck Chassis Frame
Chassis Frame
Ladder type straight frame
Tata Ultra 2821.T Truck Axle Configuration
Axle Configuration
6x2
Tata Ultra 2821.T Truck Front Axle
Front Axle
Forged I Beam, Reverse Elliot Type
Tata Ultra 2821.T Truck Rear Axle
Rear Axle
Single reduction RA 110LD
RAR: 4.88 / 5.12 (68 wheelbase)
Tata Ultra 2821.T Truck Front Suspension
Front Suspension
Parabolic leaf springs
Tata Ultra 2821.T Truck Rear Suspension
Rear Suspension
Semi elliptical leaf springs
Bell crank
Tata Ultra 2821.T Truck Tyres
Tyres
295/90R20 (Tube)
10+1 tyres
Tata Ultra 2821.T Truck Wheelbase
Wheelbase
5505 mm
6750 mm
Tata Ultra 2821.T Truck Overall Width
Overall Width
2440 mm
Tata Ultra 2821.T Truck Front Track
Front Track
1964 mm
Tata Ultra 2821.T Truck Rear Track
Rear Track
1817 mm
Tata Ultra 2821.T Truck Chassis Depth
Chassis Depth
250 mm
Tata Ultra 2821.T Truck Chassis Flange width
Chassis Flange width
65 mm
Tata Ultra 2821.T Truck Chassis Thickness
Chassis Thickness
7 mm

Tata Ultra 2821.T Truck Specification Highlights

Check all the Tata Ultra 2821.T specifications on TrucksBuses in the table above The main driveline of this Tata truck includes a 5005 cc 4 cylinder engine that produces a maximum power of 197 HP and a torque of 850 Nm It gets mated to 6 speed (6F+1R), Dashboard mounted gear lever, G750 gearbox A gross weight of 28000 kg and multiple configurations allows the owner to carry multiple kinds of goods as per requirement There are multiple features in this Tata truck for enhancing driver comfort Other Tata Ultra 2821.T truck specifications like chassis, tyre, axle, turning circle dia, engine cc, gradeability are available here in the tables above.
