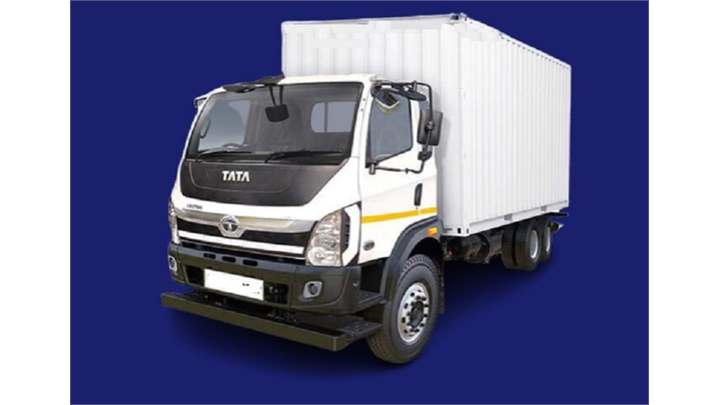

Tata Ultra 2823.T Truck Specifications

*Ex - showroom Price of Tata Ultra 2823.T Truck is 30.10-34.50 Lakh*

From ₹ 30.10-34.50 Lakh*
*Ex-showroom Price


Don't miss out on the best discount offers on Tata Ultra 2823.T Truck for this month

Tata Ultra 2823.T - 10 Wheeler Truck Highlights

Power

Tata Ultra 2823.T Truck Power

227
GVW

Tata Ultra 2823.T Truck GVW

28000 Kg
Fuel

Tata Ultra 2823.T Truck Fuel

Diesel
Engine

Tata Ultra 2823.T Truck Engine

5635 cc
Cylinders

Tata Ultra 2823.T Truck Cylinders

4

Key Specifications of Tata Ultra 2823.T Truck

  • Engine
    Cummins 5.6L
  • Fuel Injection System
    Common Rail
  • Engine Displacement
    5635 cc
  • Engine Cylinders
    4
  • Power
    227 HP
  • Torque
    925 Nm
  • Clutch
    395 mm dia
    Organic lining
  • Transmission
    6 speed (6F+1R)
  • Gearbox
    G950 6S
  • Max Speed
    80 Kmph
  • Emission Norms Compliance
    BS6 OBD2
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    365 Litres HDPE (Plastic tank)
  • GVW
    28000 Kg
  • Vehicle Configuration
    Cabin and chassis
    Cabin with load body
  • Load Body Options
    Fixed Side Deck
    High Side Deck
    Container
  • Loading Span
    22 ft
    24 ft
    26 ft
    28 ft
    32 ft
  • Cabin Type
    Sleeper cabin
  • Cabin Tilt mechanism
    Hydraulically tiltable
  • Chassis Frame
    Ladder type
  • Axle Configuration
    6x2
  • Front Axle
    Forged 7T I beam reverse elliot type
  • Rear Axle
    RA-110LD at RFWD
    RA 909 at RRWD
  • Front Suspension
    Parabolic leaf springs
  • Rear Suspension
    Semi elliptical leaf springs
    Bell crank
  • Tyres
    295/90R20 (Tube)
    10+1 tyres
  • Wheelbase
    5505 mm
    6750 mm
  • Ground Clearance
    248 mm
  • Overall Width
    2440 mm
  • Front Track
    1964 mm
  • Rear Track
    1817 mm
  • Chassis Depth
    250 mm
  • Chassis Flange width
    65 mm
  • Chassis Thickness
    7 mm

Tata Ultra 2823.T Truck Specification Highlights

Here, we will discuss the engine performance and body configuration of the Tata Ultra 2823.T cargo truck. This 10-chakka cargo truck is empowered by a 4-cylinder Cummins 5.6L powerful engine of 5635 cc displacement. It produces a power of 227 horsepower and a maximum torque of 925 Nm. The Tata Ultra 2823.T is available in an axle configuration of 6x2. This cargo truck power transmission is controlled by a 6-speed gearbox system. For comfortable riding, its front and rear suspension is coupled with parabolic and semi-elliptical leaf springs. The wheelbase sizes of the Tata Ultra 2823.T cargo truck are 5505 mm, and 6750 mm and tyre size is 295 and 90R20 offering a 248 mm ground clearance. It runs on diesel fuel. Some other specifications are shown in the table above.

Frequently Asked Questions on Tata Ultra 2823.T Truck

GVW of any truck is the sum total of empty kerb weight and the payload it can carry. Tata Ultra 2823.T GVW is 28000 Kg

Tata Ultra 2823.T comes with 4 cylinder Cummins 5.6L engine and the engine displacement is 5635 cc

In terms of performance, Tata Ultra 2823.T produces a maximum power of 227 HP and a maximum torque of 925 Nm

Tata Ultra 2823.T comes with a 6 speed (6F+1R) transmission along with a 395 mm dia# Organic lining clutch

Tata Ultra 2823.T comes with Diesel fuel option and its fuel tank capacity is 365 Litres HDPE (Plastic tank)

The tyre size of Tata Ultra 2823.T is 295/90R20 (Tube)# 10+1 tyres

The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Tata Ultra 2823.T is expected to be around Rs Not Available for a 5 year period

Tata Ultra 2823.T comes with Air brakes

Tata Ultra 2823.T truck comes with a standard warranty of 6 Years / 6 Lakh km on driveline# 3 Years / 3 Lakh km on vehicle
