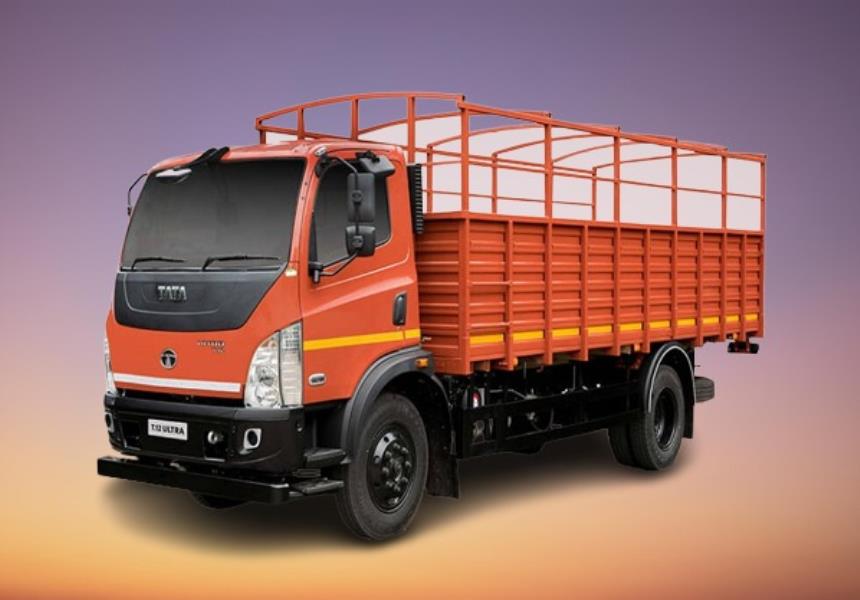

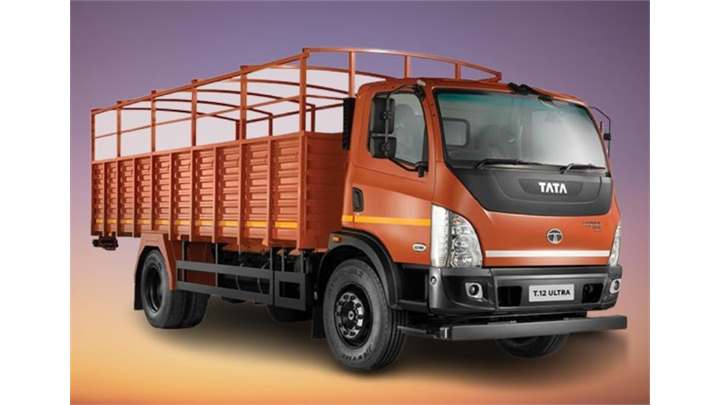

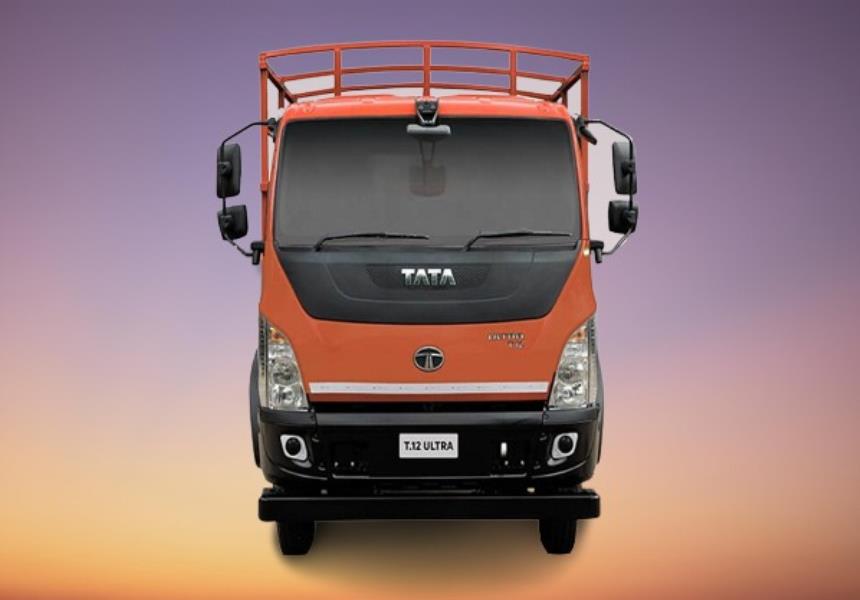

Tata Ultra T.12 BS6 truck specifications

Name: Tata Ultra T.12
Brand: Tata
SKU: P-N-f6eaQ3

Rate This Vehicle

From ₹ 23.07-24.44 Lakh*
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on Tata Ultra T.12 Truck for this month

Download Tata Ultra T.12 Truck Brochure

Check out the Tata Ultra T.12 Truck PDF brochure at TrucksBuses.com with all features and specifications.

Tata Ultra T.12 - 6 Wheeler Truck Highlights

Power

155

GVW

11990 Kg

Fuel

Diesel

Engine

3300 cc

Cylinders

Key Specifications of Tata Ultra T.12 Truck

Engine
Configuration

Tata Ultra T.12 Truck Engine
Engine
3.3L NG
Tata Ultra T.12 Truck Fuel Injection System
Fuel Injection System
Common Rail
Tata Ultra T.12 Truck Engine Displacement
Engine Displacement
3300 cc
Tata Ultra T.12 Truck Engine Cylinders
Engine Cylinders
4
Tata Ultra T.12 Truck Power
Power
155 HP@2600 rpm
Tata Ultra T.12 Truck Torque
Torque
450 Nm@1400-2200 rpm
Tata Ultra T.12 Truck Clutch
Clutch
330 mm dia
With clutch booster
Tata Ultra T.12 Truck Transmission
Transmission
6 speed (6F+1R)
With cable shift
Tata Ultra T.12 Truck Gearbox
Gearbox
GBS 550 PTOP
Tata Ultra T.12 Truck Gradeability
Gradeability
26.80%
Tata Ultra T.12 Truck Max Speed
Max Speed
80 Kmph
Tata Ultra T.12 Truck Emission Norms Compliance
Emission Norms Compliance
BS6
Tata Ultra T.12 Truck Fuel Type
Fuel Type
Diesel
Tata Ultra T.12 Truck Fuel Tank Capacity
Fuel Tank Capacity
Diesel: 160 Litres
Ad Blue: 25 Litres

Tata Ultra T.12 Truck GVW
GVW
11990 Kg
Tata Ultra T.12 Truck Vehicle Configuration
Vehicle Configuration
Cabin and chassis
Cabin with load body
Tata Ultra T.12 Truck Load Body Options
Load Body Options
Fixed Side Deck
High Side Deck
Tata Ultra T.12 Truck Loading Span
Loading Span
20 ft
22 ft
24 ft
Tata Ultra T.12 Truck Cabin Type
Cabin Type
Day cab
Sleeper cabin (Optional)
Tata Ultra T.12 Truck Cabin Tilt mechanism
Cabin Tilt mechanism
Manually tiltable
Tata Ultra T.12 Truck Chassis Frame
Chassis Frame
Ladder type with cross members
Tata Ultra T.12 Truck Axle Configuration
Axle Configuration
4x2
Tata Ultra T.12 Truck Front Axle
Front Axle
Forged I Beam, Reverse Elliot Type
Tata Ultra T.12 Truck Front Suspension
Front Suspension
Parabolic leaf springs
With telescopic shock absorbers
Tata Ultra T.12 Truck Rear Suspension
Rear Suspension
Semi elliptical leaf springs
With auxiliary springs
Tata Ultra T.12 Truck Tyres
Tyres
245/75 R 17.5
Tubeless Radial
6+1 tyres
Tata Ultra T.12 Truck Wheelbase
Wheelbase
4920 mm
5600 mm
Tata Ultra T.12 Truck Turning Circle Diameter
Turning Circle Diameter
15.2 m (20 ft body)
16.9 m (22 ft)
18.2 m (24 ft)
Tata Ultra T.12 Truck Ground Clearance
Ground Clearance
185 mm
Tata Ultra T.12 Truck Overall Width
Overall Width
2255 mm
Tata Ultra T.12 Truck Overall Height
Overall Height
2933 mm
Tata Ultra T.12 Truck Load Body Width
Load Body Width
2117 mm

Tata Ultra T.12 Truck Specification Highlights

At this segment of specification of the Latest Tata Ultra T.12 truck which has an awesome engine performance and a well-balanced body configuration. The 6 wheeler Tata Ultra T.12 truck has a powerful engine displacement of 3300 cc and it produces a power of 155 horsepower along with a high-end torque of 450 Nm. The axle configuration of this 6 wheeler Tata Ultra truck is 4x2 and the load body size is 20 feet, 22 feet and 24 feet. The Ultra T.12 truck runs on diesel fuel having a large fuel tank capacity of 160 litres. This new 6 chakka Ultra T.12 truck follows BS6 OBD2 emissions norms. You will get cabin and chassis and a cabin with a box body in this 6 wheeler truck. The front suspension of this Tata Ultra truck has parabolic type leaf springs with hydraulic shock absorbers while the rear suspension comes with semi-elliptical leaf springs. Check the other specifications of Tata Ultra T.12 on the table above.
