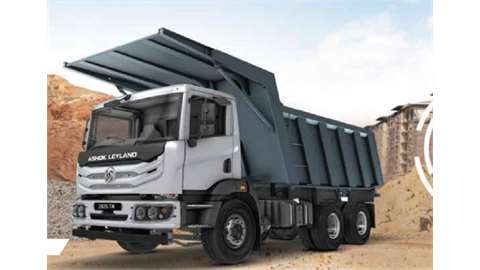

Ashok Leyland 2825 TN H-Series Tipper Specifications

*Ex - showroom Price of Ashok Leyland 2825 TN H-Series Tipper is 44.60-59.40 Lakh*

From ₹ 44.60-59.40 Lakh*
*Ex-showroom Price


Don't miss out on the best discount offers on Ashok Leyland 2825 TN H-Series Tipper for this month

Ashok Leyland 2825 TN H-Series - 10 Wheeler Tipper Highlights

Power
246
GVW
28000 Kg
Fuel
Diesel
Engine
5660 cc
Cylinders
6

Key Specifications of Ashok Leyland 2825 TN H-Series Tipper

  • Engine
    H series CRS
    iGen6 technology
  • Fuel Injection System
    Common Rail
  • Engine Displacement
    5660 cc
  • Engine Cylinders
    6
  • Power
    246 HP@2400 rpm
  • Torque
    900 Nm@1200-1900 rpm
  • Clutch
    395 mm dia
    Single dry plate
    Ceremic clutch
    With air assisted hydraulic booster
  • Transmission
    9 speed (9F+1R)
  • Gradeability
    46 / 48 / 64%
  • Max Speed
    60 Kmph
  • Emission Norms Compliance
    BS6
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    Diesel: 220 Litres
  • GVW
    28000 Kg
  • Vehicle Configuration
    Cabin with Box body
  • Load Body Options
    14 / 16 / 18 / 20 Cu.M (Box)
  • Cabin Type
    N Cabin
  • Chassis Frame
    Bolted ladder type
  • Axle Configuration
    6x4
  • Rear Axle
    Fully floating, Single speed, Hypoid diffrential
    RAR 5.57, 5.83, 6.5/7.2HR
  • Front Suspension
    Semi elliptical multileaf
    Parabolic springs
  • Rear Suspension
    NRS semi elliptical
    Bogie
  • Tyres
    295/90R20
    295/90D20
    11R20 16PR
    11x20 16PR
    11x20 Mining 18PR
  • Wheelbase
    3900 mm
    4600 mm
    3900 mm
    3900 mm
    3900 mm
    3900 mm
    4600 mm
  • Turning Circle Diameter
    14.3 m
    16.6 m

Ashok Leyland 2825 TN H-Series Tipper Specification Highlights

Here, we give enlightenment about the engine performance and the body configuration of the 10-wheeler Ashok Leyland 2825 TN H series tipper. It has a powerful A series igen 6 technology engine and it produces a power of 246 HP along with a high-end torque of 900 Nm. The axle configuration of this 10-wheeler tipper is 6x4. It runs on diesel fuel having a large fuel tank capacity of 220 litres. Ashok Leyland 2825 TN H series tipper has a 395 mm dia single dry plate ceramic clutch with air-assisted hydraulic booster. This new Ashok Leyland 2825 TN H series tipper follows BS6 OBD2 emissions norms. The power transmission of the Ashok Leyland 2825 TN H series tipper is managed by a 9-speed synchromesh gearbox system. You will get a cabin with a box body. The front suspension of this tipper has parabolic springs with semi-elliptical multi springs while the rear suspension comes with nrs semi-elliptical springs with bogie suspension. Check the other specifications of the Ashok Leyland 2825 TN H series tipper on the table above.

Frequently Asked Questions on Ashok Leyland 2825 TN H-Series Tipper

The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Ashok Leyland 2825 TN H-Series is expected to be around Rs Not Available for a 5 year period

The tyre size of Ashok Leyland 2825 TN H-Series is 295/90R20# 295/90D20# 11R20 16PR# 11x20 16PR# 11x20 Mining 18PR

Ashok Leyland 2825 TN H-Series comes with Full air dual line brakes with ABS # With ASA# Drum brakes with engine brakes

GVW of any truck is the sum total of empty kerb weight and the payload it can carry. Ashok Leyland 2825 TN H-Series GVW is 28000 Kg

In terms of performance, Ashok Leyland 2825 TN H-Series produces a maximum power of 246 HP@2400 rpm and a maximum torque of 900 Nm@1200-1900 rpm

Ashok Leyland 2825 TN H-Series comes with a 9 speed (9F+1R) transmission along with a 395 mm dia# Single dry plate# Ceremic clutch# With air assisted hydraulic booster clutch

Gradeability of any truck defines its ability to climb upward slopes. The gradeability of Ashok Leyland 2825 TN H-Series is 46 / 48 / 64%.

Ashok Leyland 2825 TN H-Series comes with Diesel fuel option and its fuel tank capacity is Diesel: 220 Litres

Ashok Leyland 2825 TN H-Series is available in 14 / 16 / 18 / 20 Cu.M (Box) body
