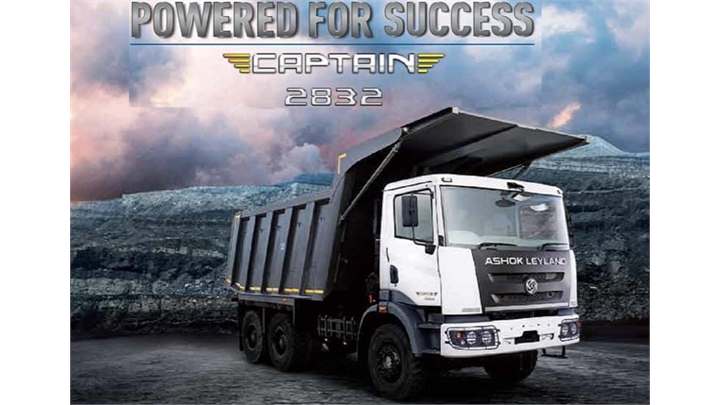

Ashok Leyland Captain 2832 Tipper GVW
GVW 27320 Kg
Ashok Leyland Captain 2832 Tipper Vehicle Configuration
Vehicle Configuration Cabin with Box body
Cabin with Rock body
Ashok Leyland Captain 2832 Tipper Cabin Type
Cabin Type Day Cab
With provision for sleeping
Ashok Leyland Captain 2832 Tipper Chassis Frame
Chassis Frame Joggled bolted frame with cross members
Ashok Leyland Captain 2832 Tipper Axle Configuration
Axle Configuration 6x4
Ashok Leyland Captain 2832 Tipper Front Axle
Front Axle Forged I Beam, Reverse Elliot Type
Ashok Leyland Captain 2832 Tipper Rear Axle
Rear Axle Hub reduction
RAR: 7.2:1
Ashok Leyland Captain 2832 Tipper Front Suspension
Front Suspension Parabolic leaf springs
With telescopic shock absorbers
Ashok Leyland Captain 2832 Tipper Rear Suspension
Rear Suspension Bogie suspension with V rod
Ashok Leyland Captain 2832 Tipper Anti Roll Bar
Anti Roll Bar Front and rear
Ashok Leyland Captain 2832 Tipper Tyres
Tyres 11x20 - 18 PR Mining
Ashok Leyland Captain 2832 Tipper Wheelbase
Wheelbase 4100 mm
Ashok Leyland Captain 2832 Tipper Turning Circle Diameter
Turning Circle Diameter 16.7 m
Ashok Leyland Captain 2832 Tipper Ground Clearance
Ground Clearance 305 mm
Ashok Leyland Captain 2832 Tipper Overall Length
Overall Length 7796 mm (Rock body)
7520 mm (Box body)
Ashok Leyland Captain 2832 Tipper Overall Width
Overall Width 2580 mm
Ashok Leyland Captain 2832 Tipper Front Overhang
Front Overhang 1496 mm
Ashok Leyland Captain 2832 Tipper Rear Overhang
Rear Overhang 1500 mm (Rock body)
1224 mm (Box body)
Ashok Leyland Captain 2832 Tipper Front Track
Front Track 2056 mm
Ashok Leyland Captain 2832 Tipper Rear Track
Rear Track 1870 mm
Ashok Leyland Captain 2832 Tipper Chassis Depth
Chassis Depth 279 mm
Ashok Leyland Captain 2832 Tipper Chassis Flange width
Chassis Flange width 90 mm
Ashok Leyland Captain 2832 Tipper Chassis Thickness
Chassis Thickness 8 mm
Ashok Leyland Captain 2832 Tipper Load Body Dimensions
Load Body Dimensions 16 Cu.M Box body
14 / 16 Cu.M Rock body
