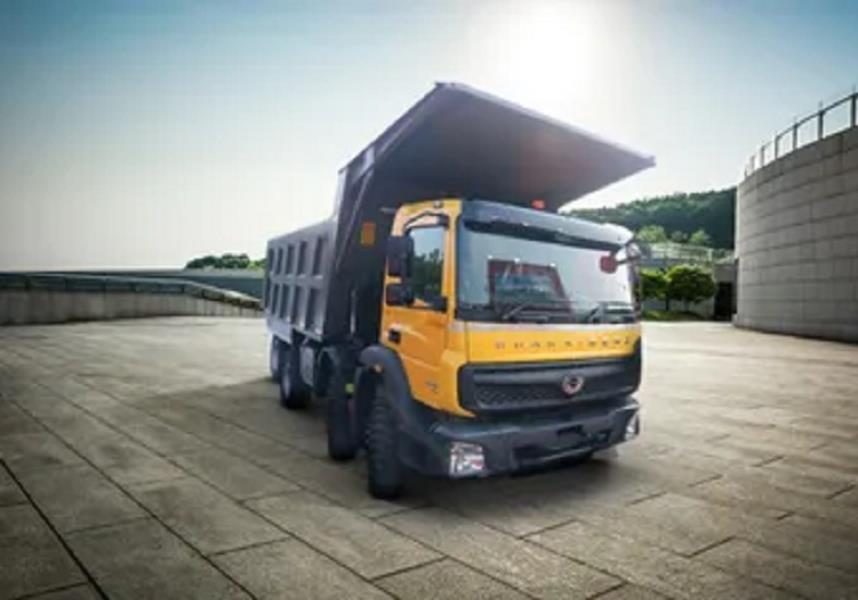

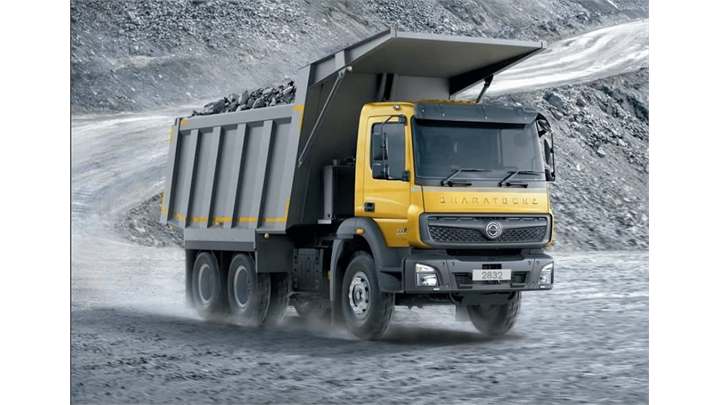

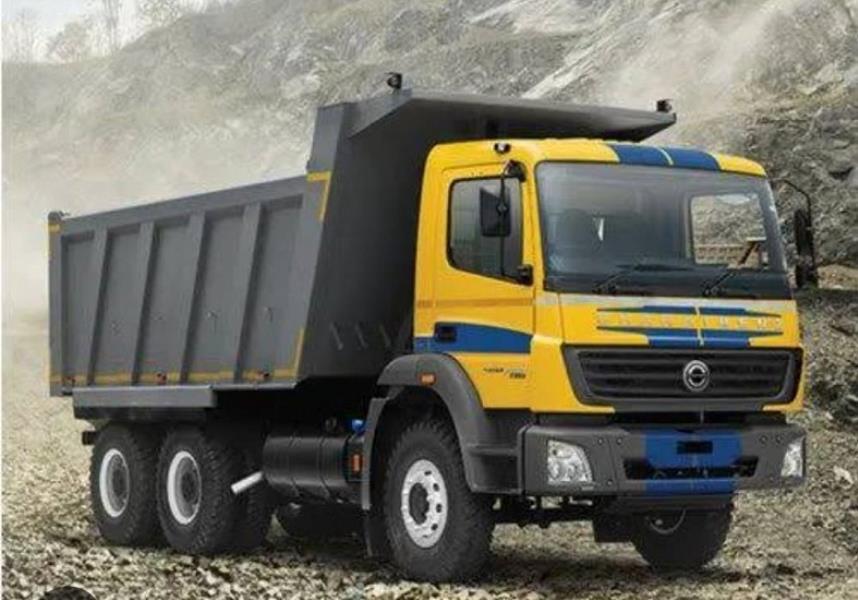

BharatBenz 2832CM Tipper Images BharatBenz 2832CM Tipper Images BharatBenz 2832CM Tipper Images BharatBenz 2832CM Tipper Images BharatBenz 2832CM Tipper Images
BharatBenz 2832CM Tipper Images
BharatBenz 2832CM Tipper Images
BharatBenz 2832CM Tipper Images
BharatBenz 2832CM Tipper Images
BharatBenz 2832CM Tipper Images

BharatBenz 2832CM Tipper Specifications

Rate This Vehicle

*Ex - showroom Price of BharatBenz 2832CM Tipper is 37.20-39.50 Lakh*

From ₹ 37.20-39.50 Lakh*
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on BharatBenz 2832CM Tipper for this month

BharatBenz 2832CM - 10 Wheeler Tipper Highlights

Power

BharatBenz 2832CM Tipper Power

320
GVW

BharatBenz 2832CM Tipper GVW

27600 Kg
Fuel

BharatBenz 2832CM Tipper Fuel

Diesel
Engine

BharatBenz 2832CM Tipper Engine

7200 cc
Cylinders

BharatBenz 2832CM Tipper Cylinders

6
Trucksbuses.com
Trucksbuses.com

Key Specifications of BharatBenz 2832CM Tipper

  • Engine
    OM 926
  • Fuel Injection System
    Unitised fuel injection pump
  • Engine Displacement
    7200 cc
  • Engine Cylinders
    6
  • Power
    320 HP@2200 rpm
  • Torque
    1250 Nm@1200-1600 rpm
  • Clutch
    430 mm Single dry plate
    Hydraulic control
  • Transmission
    9 Speed (9F+1R)
  • Gearbox
    G131, Synchromesh
  • Gradeability
    81%
  • Max Speed
    60 Kmph
  • Emission Norms Compliance
    BS6
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    Diesel: 260 Litres
    Ad Blue: 43 / 37 Litres
  • Electricals Battery
    2x12 V, 120 Ah
  • Engine
    OM 926
  • Fuel Injection System
    Unitised fuel injection pump
  • Engine Displacement
    7200 cc
  • Engine Cylinders
    6
  • Power
    320 HP@2200 rpm
  • Torque
    1250 Nm@1200-1600 rpm
  • Clutch
    430 mm Single dry plate
    Hydraulic control
  • Transmission
    9 Speed (9F+1R)
  • Gearbox
    G131, Synchromesh
  • Gradeability
    81%
  • Max Speed
    60 Kmph
  • Emission Norms Compliance
    BS6
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    Diesel: 260 Litres
    Ad Blue: 43 / 37 Litres
  • Electricals Battery
    2x12 V, 120 Ah
  • GVW
    27600 Kg
  • Vehicle Configuration
    Cabin with Scoop body
    Cabin with Box body
  • Load Body Options
    16 Cu.M Box
    16 Cu.M Scoop
  • Cabin Type
    Day cabin
  • Cabin Tilt mechanism
    Hydraulically tiltable
  • Chassis Frame
    Channel section with cross members
  • Axle Configuration
    6x4
  • Front Axle
    IF 7.0
  • Rear Axle
    6.18 RAR
    Hub reduction
  • Front Suspension
    Parabolic leaf spring with shock absorbers
  • Rear Suspension
    Bogie suspension
  • Anti Roll Bar
    Front and Rear
  • Tyres
    12x20 Mining
    10+1 tyres
  • Wheelbase
    4275 mm
  • Turning Circle Diameter
    16.2 m
  • Ground Clearance
    331 mm
  • Overall Length
    7185 mm
  • Overall Width
    2490 mm
  • Overall Height
    2995 mm
  • Front Overhang
    1485 mm
  • Rear Overhang
    750 mm
  • Chassis Depth
    288 mm
  • Chassis Flange width
    70 mm
  • Chassis Thickness
    9 mm
  • GVW
    27600 Kg
  • Vehicle Configuration
    Cabin with Scoop body
    Cabin with Box body
  • Load Body Options
    16 Cu.M Box
    16 Cu.M Scoop
  • Cabin Type
    Day cabin
  • Cabin Tilt mechanism
    Hydraulically tiltable
  • Chassis Frame
    Channel section with cross members
  • Axle Configuration
    6x4
  • Front Axle
    IF 7.0
  • Rear Axle
    6.18 RAR
    Hub reduction
  • Front Suspension
    Parabolic leaf spring with shock absorbers
  • Rear Suspension
    Bogie suspension
  • Anti Roll Bar
    Front and Rear
  • Tyres
    12x20 Mining
    10+1 tyres
  • Wheelbase
    4275 mm
  • Turning Circle Diameter
    16.2 m
  • Ground Clearance
    331 mm
  • Overall Length
    7185 mm
  • Overall Width
    2490 mm
  • Overall Height
    2995 mm
  • Front Overhang
    1485 mm
  • Rear Overhang
    750 mm
  • Chassis Depth
    288 mm
  • Chassis Flange width
    70 mm
  • Chassis Thickness
    9 mm

BharatBenz 2832CM Tipper Specification Highlights

In this section, you come to know about the engine performance and body configuration of the BharatBenz 2832 CM. It is empowered by a 6-cylinder powerful engine of 7200 cc displacement that can produce a power of 320 horsepower and a high-end torque of 1250 Nm. Its power transmission is controlled by a synchromesh 9-speed gearbox system. Its axle configuration is 6x4. Its front suspension has parabolic leaf springs with shock absorbers while the rear suspension has bogie suspension. The wheelbase size of this tipper is 4275 mm and the tyre size is 12x20 which offers a ground clearance of 331 mm. It has a day-type cabin. It runs on diesel fuel and has a common rail fuel injection system. The BS6 emission norms compliance regulate this 10-wheeler tipper.

Frequently Asked Questions on BharatBenz 2832CM Tipper

GVW of any truck is the sum total of empty kerb weight and the payload it can carry. BharatBenz 2832CM GVW is 27600 Kg

In terms of performance, BharatBenz 2832CM produces a maximum power of 320 HP@2200 rpm and a maximum torque of 1250 Nm@1200-1600 rpm

BharatBenz 2832CM comes with a 9 Speed (9F+1R) transmission along with a 430 mm Single dry plate# Hydraulic control clutch

BharatBenz 2832CM comes with Diesel fuel option and its fuel tank capacity is Diesel: 260 Litres# Ad Blue: 43 / 37 Litres

Gradeability of any truck defines its ability to climb upward slopes. The gradeability of BharatBenz 2832CM is 81%.

BharatBenz 2832CM is available in 16 Cu.M Box# 16 Cu.M Scoop body

The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of BharatBenz 2832CM is expected to be around Rs Not Available for a 5 year period

The tyre size of BharatBenz 2832CM is 12x20 Mining# 10+1 tyres

BharatBenz 2832CM comes with Air brakes

BharatBenz 2832CM tipper comes with a standard warranty of 6 Years / 6000 Hrs on driveline# 3 Years / 3000 Hrs on vehicle
