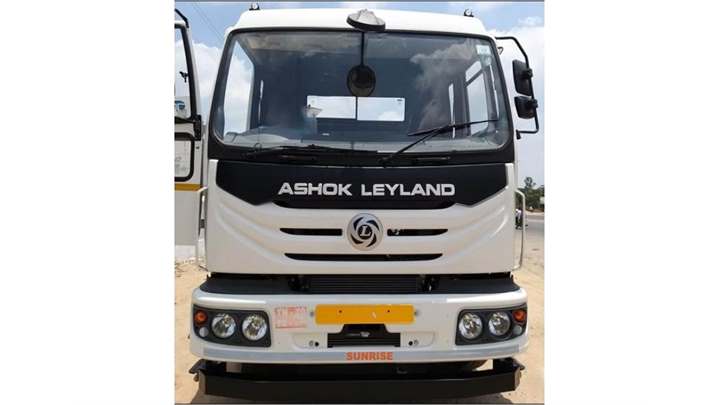

Ashok Leyland 4020 AU Tractor Trailer Specifications

*Ex - showroom Price of Ashok Leyland 4020 AU Tractor Trailer is 39.30-48.30 Lakh*

From ₹ 39.30-48.30 Lakh*
*Ex-showroom Price


Don't miss out on the best discount offers on Ashok Leyland 4020 AU Tractor Trailer for this month

Ashok Leyland 4020 AU - 6 Wheel Horse Highlights

Power
198
GVW
39500 Kg
Fuel
Diesel
Engine
5660 cc
Cylinders
6

Key Specifications of Ashok Leyland 4020 AU Tractor Trailer

  • Engine
    H series CRS
    iGen6 technology
  • Fuel Injection System
    Common Rail
  • Engine Displacement
    5660 cc
  • Engine Cylinders
    6
  • Power
    198 HP@2400 rpm
  • Torque
    700 Nm@1200-1900 rpm
  • Clutch
    380 mm dia
    Air assisted hydraulic booster
  • Transmission
    6 speed (6F+1R)
  • Gearbox
    Synchromesh
  • Max Speed
    80 Kmph
  • Emission Norms Compliance
    BS6
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    Diesel: 375 Litres
    Polymer tank
  • Electricals Battery
    24V, 120 Ah / 150 Ah (AC)
  • Gross Combination Weight
    39500 Kg
  • Cabin Type
    Value cabin
  • Chassis Frame
    Bolted ladder type
  • Axle Configuration
    4x2
  • Front Axle
    Forgerd I Section - Reverse Elliot Type
  • Rear Axle
    Fully floating, Single speed
  • Front Suspension
    Parabolic springs
    Optional : Semi elliptic multi leaf
  • Rear Suspension
    Semi elliptic multi leaf
    Parabolic helper springs
  • Tyres
    295/90R20
  • Wheelbase
    3200 mm
  • Turning Circle Diameter
    11.6 m
  • Overall Length
    5600 mm
  • Overall Width
    2570 mm
  • Overall Height
    3160 mm

Ashok Leyland 4020 AU Tractor Trailer Specification Highlights

The specifications of this 6-wheeler Ashok Leyland 4020 AU H series tractor-trailer include efficient engine performance and body configuration. This Ashok Leyland 4020 AU H series tractor trailer is coupled with a powerful 6-cylinder H series i gen6 technology engine. It has a cabin type of value cabin. This Ashok Leyland tractor-trailer produces a power of 198 horsepower and a high-end torque of 700 Nm. The latest Ashok Leyland 4020 AU H series comes under BS6 emission norms as it runs on diesel fuel with a fuel tank capacity of 375 liters with a polymer tank. The 6 chakka Ashok Leyland 4020 AU H series tractor trailer has 6-speed manual transmission with synchromesh gearbox. It comes with overall length of 5600 mm, width 2570 mm and an overall height of 3160 mm. This 6-wheeler Ashok Leyland 4020 AU H series has a clutch specification of 380 mm dia with air assisted hydraulic booster.It has a front axle of forger, section reverse elliot type and a rear axle of fully floating single speed. Its front suspension is parabolic springs with optional semi-elliptic multi-leaf. The rear suspension of the Ashok Leyland 4020 AU H series tractor trailer is semi-elliptic multi-leaf with parabolic helper springs. It comes with a tyre size 295/90R20. A few other configurational specs of this Ashok Leyland 4020 AU H series tractor trailer are described above in the table.

Frequently Asked Questions on Ashok Leyland 4020 AU Tractor Trailer

The tyre size of Ashok Leyland 4020 AU is 295/90R20

Ashok Leyland 4020 AU comes with Full air dual line brakes with ABS

In terms of performance, Ashok Leyland 4020 AU produces a maximum power of 198 HP@2400 rpm and a maximum torque of 700 Nm@1200-1900 rpm

Ashok Leyland 4020 AU comes with Diesel fuel option and its fuel tank capacity is Diesel: 375 Litres# Polymer tank

Ashok Leyland 4020 AU comes with 6 cylinder H series CRS# iGen6 technology engine and the engine displacement is 5660 cc

Ashok Leyland 4020 AU comes with a 6 speed (6F+1R) transmission along with a 380 mm dia# Air assisted hydraulic booster clutch

The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Ashok Leyland 4020 AU is expected to be around Rs Not Available for a 5 year period
