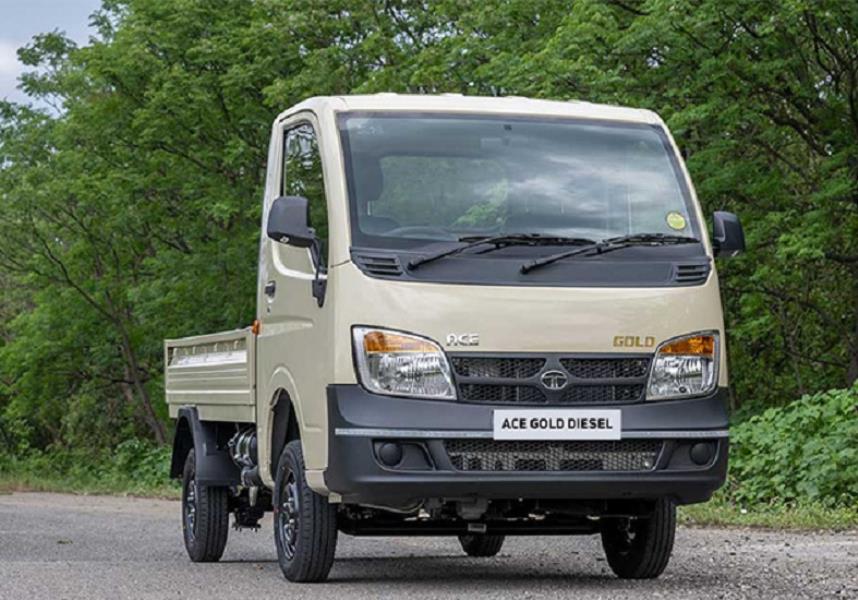

Tata Ace Gold Diesel Plus Cab Chassis Mini Truck Specifications

*Ex - showroom Price of Tata Ace Gold Diesel Plus Cab Chassis Mini Truck is 6.03 Lakh* Onwards

From ₹ 6.03 Lakh* Onwards
*Ex-showroom Price


Don't miss out on the best discount offers on Tata Ace Gold Diesel Plus Cab Chassis Mini Truck for this month

Tata Ace Gold Diesel Plus Cab Chassis - 4 Tyre Highlights

Power

Tata Ace Gold Diesel Plus Cab Chassis Mini Truck Power

Power
GVW

Tata Ace Gold Diesel Plus Cab Chassis Mini Truck GVW

1675 Kg
Fuel

Tata Ace Gold Diesel Plus Cab Chassis Mini Truck Fuel

Diesel
Engine

Tata Ace Gold Diesel Plus Cab Chassis Mini Truck Engine

702 cc
Cylinders

Tata Ace Gold Diesel Plus Cab Chassis Mini Truck Cylinders

2

Key Specifications of Tata Ace Gold Diesel Plus Cab Chassis Mini Truck

  • Engine
    DI Turbocharged engine
    SCR technology
  • Engine Displacement
    702 cc
  • Engine Cylinders
    2
  • Power
    22 HP
  • Torque
    55 Nm
  • Clutch
    Single plate dry clutch
  • Transmission
    5 speed (5F+1R)
  • Gearbox
    GBS 65 Synchromesh
  • Gradeability
    27.50%
  • Max Speed
    60 Kmph
  • Emission Norms Compliance
    BS6 OBD2
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    Diesel: 30 Litres
    DEF: 10.5 Litres
  • GVW
    1510 Kg
  • Payload
    750 Kg
  • Vehicle Configuration
    Cabin and chassis
  • Seating Capacity
    D+1
  • Axle Configuration
    4x2
  • Front Suspension
    Rigid axle with parabolic leaf spring
  • Rear Suspension
    Semi elliptical leaf spring
  • Anti Roll Bar
    No
  • Tyres
    145 R 12 LT 8PR
  • Wheelbase
    2100 mm
  • Turning Circle Diameter
    8.6 m
  • Ground Clearance
    160 mm
  • Overall Length
    3800 mm
  • Overall Width
    1500 mm
  • Overall Height
    1845 mm
  • Front Track
    1300 mm
  • Rear Track
    1320 mm
  • Load Body Dimensions
    7.2 x 4.9 ft

Tata Ace Gold Diesel Plus Cab Chassis Mini Truck Specification Highlights

When it comes to Tata Ace Gold Diesel Plus Cab Chassis specifications, we will divide it into two points. First, we will talk about engine-related performance and secondly, we will talk about configuration related. Tata Ace Gold Diesel Plus Cab Chassis equipped with a DI Turbocharged SCR technology engine with 702 cc displacement and it is matched with a 5-speed (5F+1R) transmission. Tata Ace Gold Diesel Plus Cab Chassis is a diesel fuel type vehicle and it gives outstanding mileage and a fuel tank capacity of diesel 30 litres. The design and build front, the Tata Ace Gold Diesel Plus Cab Chassis has a payload of 750 kg with a GVW of 1510 kg. Tata Ace Gold Diesel Plus Cab Chassis comes in cabin and chassis configuration and it provides a maximum power of 60 kmph. Tata Ace Gold Diesel Plus Cab offers a good quality suspension in front and rear and a big type size of 145 r 12 lt 8pr makes driving easy. TrucksBuses gives you guaranteed discount offers to buying this Tata ace vehicle.

Frequently Asked Questions on Tata Ace Gold Diesel Plus Cab Chassis Mini Truck

Tata Ace Gold Diesel Plus Cab Chassis price starts from Rs 6.20-6-50 Lakh* . The 2024 price of Tata Ace Gold Diesel Plus Cab Chassis can vary slightly from state to state and city to city.

GVW of any truck is the sum total of empty kerb weight and the payload it can carry. Tata Ace Gold Diesel Plus Cab Chassis GVW is 1675 Kg

Payload defines the loading capacity of any truck. The payload of Tata Ace Gold Diesel Plus Cab Chassis is 750 Kg

Tata Ace Gold Diesel Plus Cab Chassis comes with 2 cylinder DI Turbocharged engine# SCR technology engine and the engine displacement is 702 cc

The monthly EMI of any truck depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Tata Ace Gold Diesel Plus Cab Chassis is expected to be around Rs Not Available for a 5 year period

In terms of performance, Tata Ace Gold Diesel Plus Cab Chassis produces a maximum power of Power Mode: 20 HP# City Mode: 18 HP and a maximum torque of Power Mode: 45 Nm# City Mode: 39 Nm

Tata Ace Gold Diesel Plus Cab Chassis comes with a 5 speed (5F+1R) transmission

The tyre size of Tata Ace Gold Diesel Plus Cab Chassis is 145 R 12 LT 8PR

Tata Ace Gold Diesel Plus Cab Chassis comes with Diesel fuel option and its fuel tank capacity is Diesel: 30 Litres# DEF: 10.5 Litres

Gradeability of any truck defines its ability to climb upward slopes. The gradeability of Tata Ace Gold Diesel Plus Cab Chassis is 27.50%.
