Tata Ace Gold Diesel Plus High Deck specifications

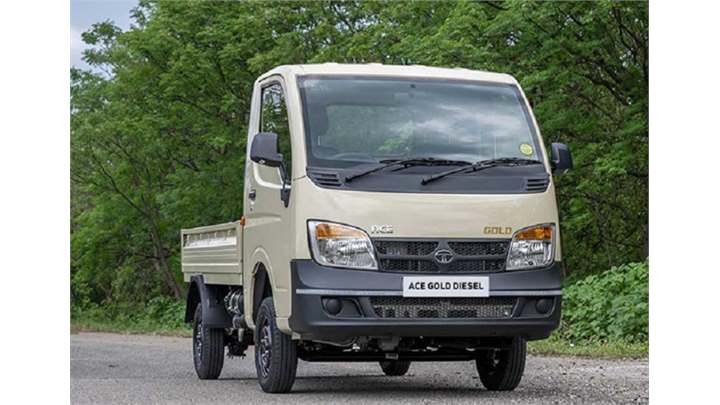

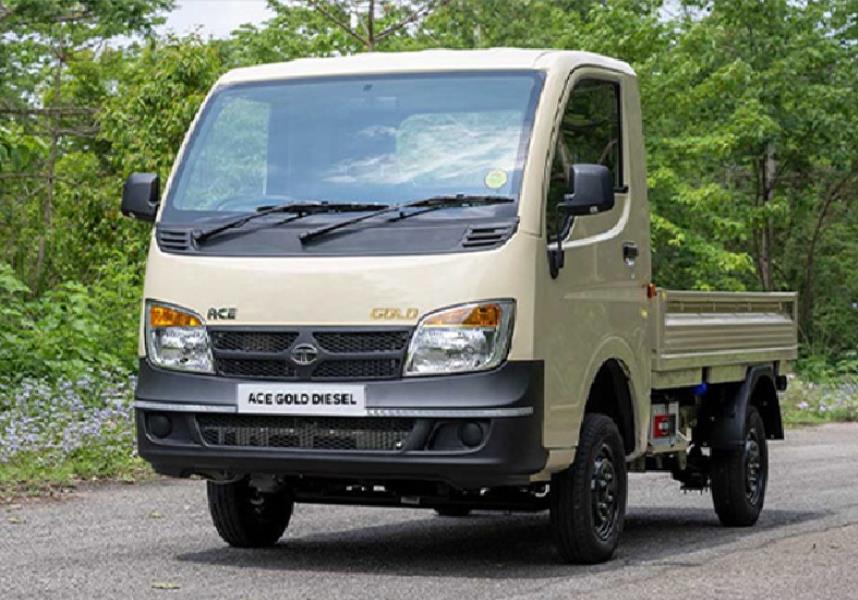

Tata Ace Gold Diesel Plus High Deck Mini Truck Images

Rate This Vehicle

From ₹ 6.25 Lakh* Onwards
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on Tata Ace Gold Diesel Plus High Deck Mini Truck for this month

Tata Ace Gold Diesel Plus High Deck - 4 Tyre Highlights

Power

GVW

1675 Kg

Fuel

Diesel

Engine

702 cc

Cylinders

Key Specifications of Tata Ace Gold Diesel Plus High Deck Mini Truck

Engine
Configuration

Tata Ace Gold Diesel Plus High Deck Mini Truck Engine
Engine
DI Turbocharged engine
SCR technology
Tata Ace Gold Diesel Plus High Deck Mini Truck Engine Displacement
Engine Displacement
702 cc
Tata Ace Gold Diesel Plus High Deck Mini Truck Engine Cylinders
Engine Cylinders
2
Tata Ace Gold Diesel Plus High Deck Mini Truck Power
Power
22 HP
Tata Ace Gold Diesel Plus High Deck Mini Truck Torque
Torque
55 Nm
Tata Ace Gold Diesel Plus High Deck Mini Truck Clutch
Clutch
Single plate dry clutch
Tata Ace Gold Diesel Plus High Deck Mini Truck Transmission
Transmission
5 speed (5F+1R)
Tata Ace Gold Diesel Plus High Deck Mini Truck Gearbox
Gearbox
GBS 65 Synchromesh
Tata Ace Gold Diesel Plus High Deck Mini Truck Gradeability
Gradeability
27.50%
Tata Ace Gold Diesel Plus High Deck Mini Truck Max Speed
Max Speed
60 Kmph
Tata Ace Gold Diesel Plus High Deck Mini Truck Emission Norms Compliance
Emission Norms Compliance
BS6 OBD2
Tata Ace Gold Diesel Plus High Deck Mini Truck Fuel Type
Fuel Type
Diesel
Tata Ace Gold Diesel Plus High Deck Mini Truck Fuel Tank Capacity
Fuel Tank Capacity
Diesel: 30 Litres
DEF: 10.5 Litres

Tata Ace Gold Diesel Plus High Deck Mini Truck GVW
GVW
1510 Kg
Tata Ace Gold Diesel Plus High Deck Mini Truck Payload
Payload
750 Kg
Tata Ace Gold Diesel Plus High Deck Mini Truck Vehicle Configuration
Vehicle Configuration
Cabin with High Deck body
Tata Ace Gold Diesel Plus High Deck Mini Truck Seating Capacity
Seating Capacity
D+1
Tata Ace Gold Diesel Plus High Deck Mini Truck Axle Configuration
Axle Configuration
4x2
Tata Ace Gold Diesel Plus High Deck Mini Truck Front Suspension
Front Suspension
Rigid axle with parabolic leaf spring
Tata Ace Gold Diesel Plus High Deck Mini Truck Rear Suspension
Rear Suspension
Semi elliptical leaf spring
Tata Ace Gold Diesel Plus High Deck Mini Truck Anti Roll Bar
Anti Roll Bar
No
Tata Ace Gold Diesel Plus High Deck Mini Truck Tyres
Tyres
145 R 12 LT 8PR
Tata Ace Gold Diesel Plus High Deck Mini Truck Wheelbase
Wheelbase
2100 mm
Tata Ace Gold Diesel Plus High Deck Mini Truck Turning Circle Diameter
Turning Circle Diameter
8.6 m
Tata Ace Gold Diesel Plus High Deck Mini Truck Ground Clearance
Ground Clearance
160 mm
Tata Ace Gold Diesel Plus High Deck Mini Truck Overall Length
Overall Length
3800 mm
Tata Ace Gold Diesel Plus High Deck Mini Truck Overall Width
Overall Width
1500 mm
Tata Ace Gold Diesel Plus High Deck Mini Truck Overall Height
Overall Height
1845 mm
Tata Ace Gold Diesel Plus High Deck Mini Truck Front Track
Front Track
1300 mm
Tata Ace Gold Diesel Plus High Deck Mini Truck Rear Track
Rear Track
1320 mm
Tata Ace Gold Diesel Plus High Deck Mini Truck Load Body Dimensions
Load Body Dimensions
7.2 x 4.9 ft

Tata Ace Gold Diesel Plus High Deck Mini Truck Specification Highlights

Tata Ace Gold Diesel Plus High Deck is equipped with a 2-cylinder DI Turbocharged engine with 702 cc displacement and it generates maximum power and maximum torque. Tata Ace Gold Diesel Plus High deck mini truck comes with a 5-speed gearbox and 4*2 axle configuration to make drive smooth. Tata Ace Gold Diesel Plus High Deck offers superior mileage with fuel affection and a big fuel tank capacity of 30 litres and 10.5 litres of polymer, and it can travel miles without refuelling. Tata Ace Gold Diesel Plus High Deck comes with a wheelbase of 2100 mm and an optimum 3800 mm overall vehicle length, and its turning circle diameter is 8.6 m and suspension in front and rear allows it to carry multiple loads easily. Tata Ace Gold Diesel Plus High Deck offers a superior 160 mm ground clearance.
