Ashok Leyland Ecomet 1115 HE BS6 truck specifications

Name: Ashok Leyland Ecomet 1115 HE
Brand: Ashok Leyland
SKU: TBN-20-EEAF9A

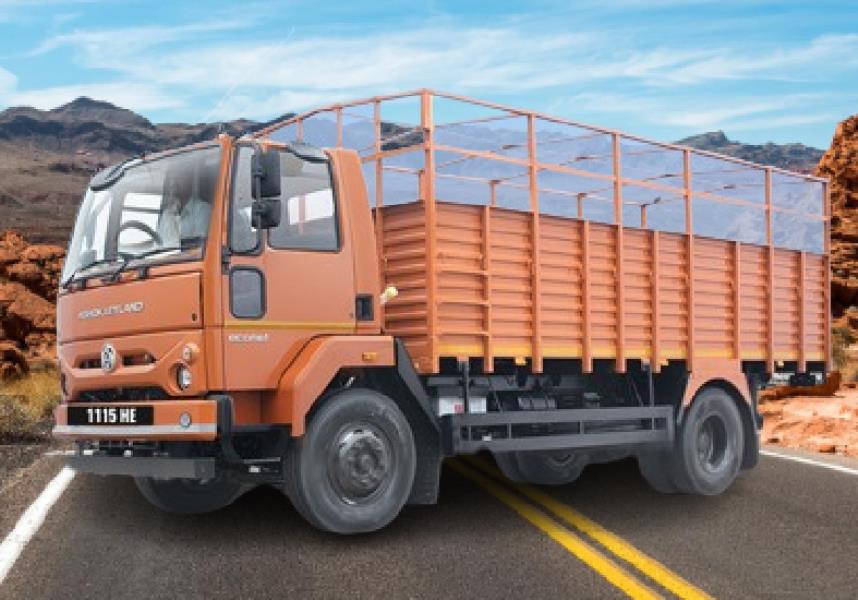

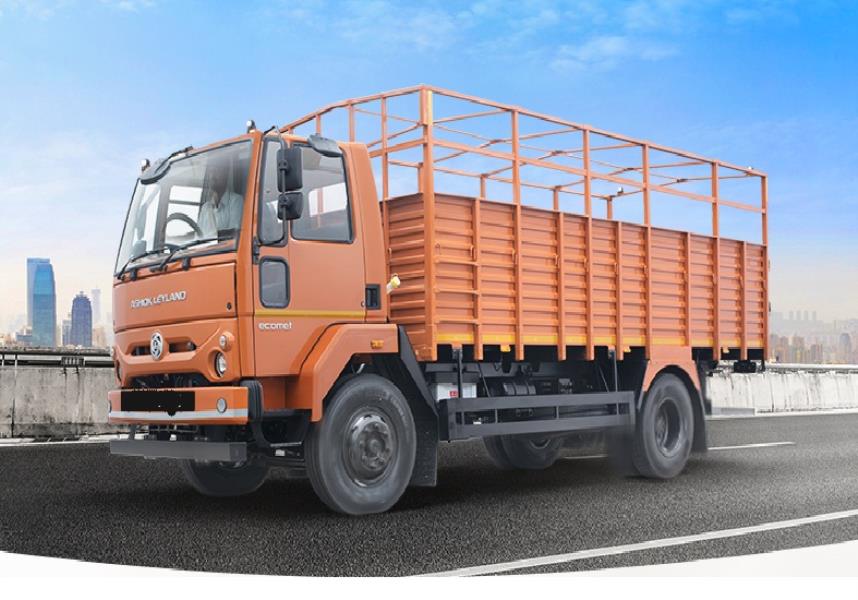

Ashok Leyland Ecomet 1115 HE Truck Images

Rate This Vehicle

From ₹ 19.28-20.12 Lakh*
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on Ashok Leyland Ecomet 1115 HE Truck for this month

Download Ashok Leyland Ecomet 1115 HE Truck Brochure

Check out the Ashok Leyland Ecomet 1115 HE Truck PDF brochure at TrucksBuses.com with all features and specifications.

Ashok Leyland Ecomet 1115 HE - 6 Wheeler Truck Highlights

Power

150

GVW

11500 Kg

Fuel

Diesel

Engine

3839 cc

Cylinders

Key Specifications of Ashok Leyland Ecomet 1115 HE Truck

Engine
Configuration

Ashok Leyland Ecomet 1115 HE Truck Engine
Engine
H series CRS
iGen-6 technology
Ashok Leyland Ecomet 1115 HE Truck Fuel Injection System
Fuel Injection System
Common Rail
Ashok Leyland Ecomet 1115 HE Truck Engine Displacement
Engine Displacement
3839 cc
Ashok Leyland Ecomet 1115 HE Truck Engine Cylinders
Engine Cylinders
4
Ashok Leyland Ecomet 1115 HE Truck Power
Power
150 HP@2400 rpm
Ashok Leyland Ecomet 1115 HE Truck Torque
Torque
450 Nm@1250-2000 rpm
Ashok Leyland Ecomet 1115 HE Truck Clutch
Clutch
330 mm dia
With clutch booster
Ashok Leyland Ecomet 1115 HE Truck Transmission
Transmission
6 speed (6F+1R)
With cable shift
Ashok Leyland Ecomet 1115 HE Truck Gearbox
Gearbox
Synchromesh
Ashok Leyland Ecomet 1115 HE Truck Max Speed
Max Speed
80 Kmph
Ashok Leyland Ecomet 1115 HE Truck Emission Norms Compliance
Emission Norms Compliance
BS6
Ashok Leyland Ecomet 1115 HE Truck Fuel Type
Fuel Type
Diesel
Ashok Leyland Ecomet 1115 HE Truck Fuel Tank Capacity
Fuel Tank Capacity
Diesel: 185 Litres
Ad Blue: 24 Litres
Ashok Leyland Ecomet 1115 HE Truck Electricals Battery
Electricals Battery
12V, 120 Ah
Alternator: 90 Amps

Ashok Leyland Ecomet 1115 HE Truck GVW
GVW
11500 Kg
Ashok Leyland Ecomet 1115 HE Truck Vehicle Configuration
Vehicle Configuration
Cabin and chassis
Cabin with load body
Ashok Leyland Ecomet 1115 HE Truck Load Body Options
Load Body Options
Fixed Side Deck
Drop Side Deck
High Side Deck
Ashok Leyland Ecomet 1115 HE Truck Loading Span
Loading Span
17 ft
19 ft
20 ft
Ashok Leyland Ecomet 1115 HE Truck Cabin Type
Cabin Type
Day cab
Ashok Leyland Ecomet 1115 HE Truck Cabin Tilt mechanism
Cabin Tilt mechanism
Manually tiltable
Ashok Leyland Ecomet 1115 HE Truck Chassis Frame
Chassis Frame
Bolted ladder type
Ashok Leyland Ecomet 1115 HE Truck Axle Configuration
Axle Configuration
4x2
Ashok Leyland Ecomet 1115 HE Truck Front Axle
Front Axle
Forged I Beam, Reverse Elliot Type
Ashok Leyland Ecomet 1115 HE Truck Rear Axle
Rear Axle
Fully floating single speed
Hypoid axle
RAR 5.57
Ashok Leyland Ecomet 1115 HE Truck Front Suspension
Front Suspension
Semi elliptical leaf springs
Ashok Leyland Ecomet 1115 HE Truck Rear Suspension
Rear Suspension
Semi elliptical leaf springs
Ashok Leyland Ecomet 1115 HE Truck Tyres
Tyres
235/75R 17.5 (Tubeless)
6+1 tyres
Ashok Leyland Ecomet 1115 HE Truck Wheelbase
Wheelbase
3950 mm
4200 mm
Ashok Leyland Ecomet 1115 HE Truck Turning Circle Diameter
Turning Circle Diameter
14.5 m (3970 wb)
15.2 m (4200 wb)
Ashok Leyland Ecomet 1115 HE Truck Ground Clearance
Ground Clearance
215 mm
232 / 210 mm (22 ft body)
Ashok Leyland Ecomet 1115 HE Truck Overall Length
Overall Length
7088 mm (17 ft body)
7663 mm (19 ft)
8058 mm (20 ft)
Ashok Leyland Ecomet 1115 HE Truck Overall Width
Overall Width
2280 mm (body)
Ashok Leyland Ecomet 1115 HE Truck Overall Height
Overall Height
2700 mm
Ashok Leyland Ecomet 1115 HE Truck Front Track
Front Track
1875 mm
Ashok Leyland Ecomet 1115 HE Truck Rear Track
Rear Track
1689 mm
Ashok Leyland Ecomet 1115 HE Truck Chassis Depth
Chassis Depth
204 mm
Ashok Leyland Ecomet 1115 HE Truck Chassis Flange width
Chassis Flange width
76 mm
Ashok Leyland Ecomet 1115 HE Truck Chassis Thickness
Chassis Thickness
6 mm

Ashok Leyland Ecomet 1115 HE Truck Specification Highlights

Check all specifications here and find detailed information on the Ashok Leyland Ecomet 1115 HE truck. This 6-wheeler Ashok Leyland Ecomet 1115 HE truck is powered by a 3839 cc 4-cylinder engine which produces a maximum power of 150 HP and torque of 450 Nm. This 6-wheeler Ashok Leyland Ecomet 1115 HE BS6 truck is matched with a 6-speed a??a??(6F+1R), cable shift, and a synchromesh gearbox. The tyre size of this Ashok Leyland Ecomet 1115 HE truck is 235 and 75R 17.5 with a turning circle diameter of 14.5 m and 15.2 m. The Ashok Leyland Ecomet 1115 HE 6-wheeler both suspensions come with semi-elliptical leaf springs. This Ashok Leyland truck has plenty of features to help you make the most of your driving experience. Check the tables above to learn more about other features of this Ecomet 1115 HE truck, such as chassis, tyres, axles, turning circle diameter, engine, overall length, fuel tank, and gradeability.
