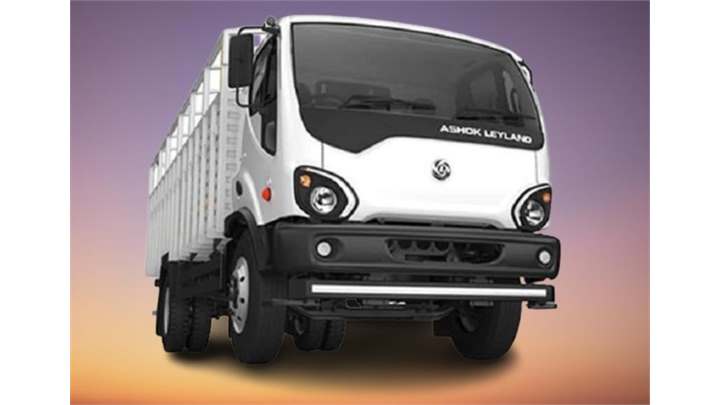

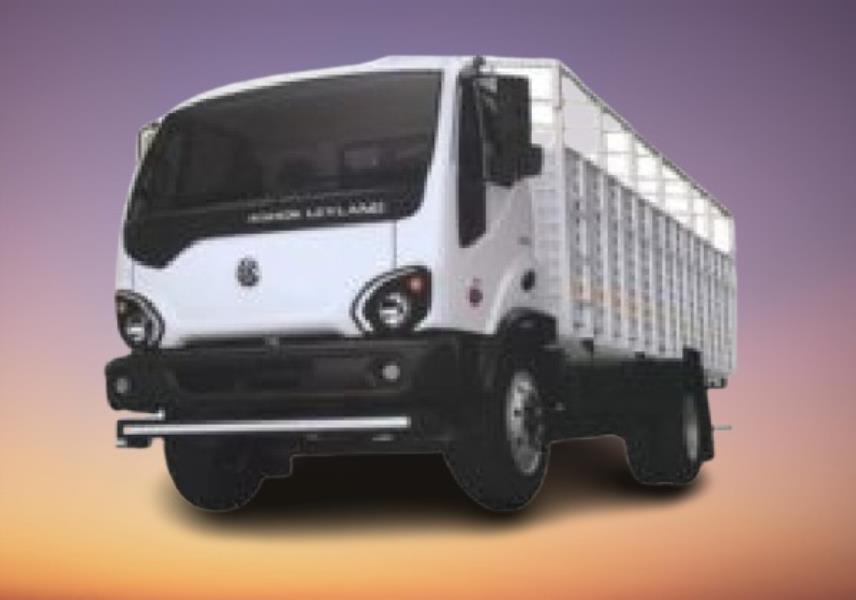

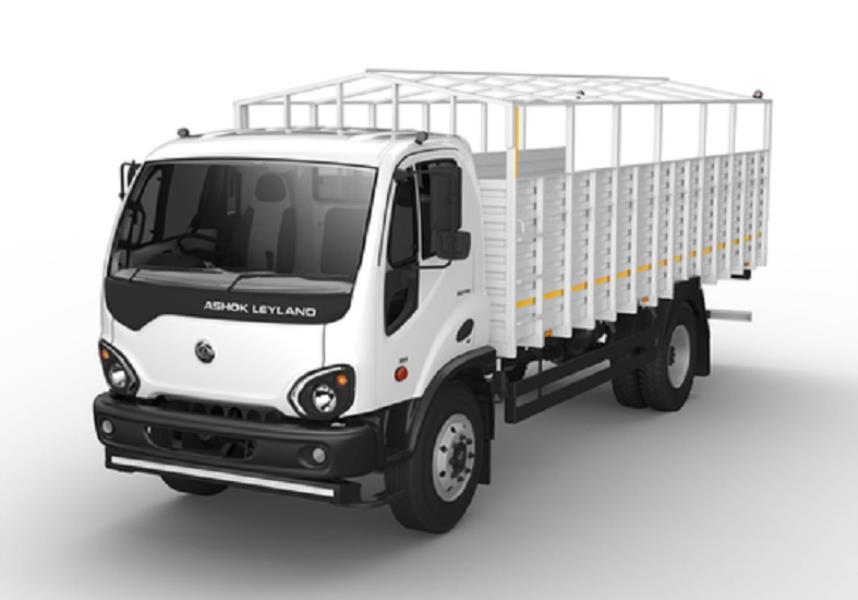

Ashok Leyland Guru 1111 Truck GVW
GVW 11990 Kg
Ashok Leyland Guru 1111 Truck Vehicle Configuration
Vehicle Configuration Cabin and chassis
Cabin with load body options
Ashok Leyland Guru 1111 Truck Loading Span
Loading Span 17 ft
20 ft
22 ft
24 ft
Ashok Leyland Guru 1111 Truck Cabin Type
Cabin Type Day cab
With sleeping provision
Ashok Leyland Guru 1111 Truck Cabin Tilt mechanism
Cabin Tilt mechanism Manually tiltable
Ashok Leyland Guru 1111 Truck Chassis Frame
Chassis Frame All steel ladder type
With bolted construction
Ashok Leyland Guru 1111 Truck Axle Configuration
Axle Configuration 4x2
Ashok Leyland Guru 1111 Truck Front Axle
Front Axle I section, Reverse Elliot Type
Ashok Leyland Guru 1111 Truck Rear Axle
Rear Axle Fully floating hypoid axle
Ashok Leyland Guru 1111 Truck Front Suspension
Front Suspension Shackle ended leaf spring
Ashok Leyland Guru 1111 Truck Rear Suspension
Rear Suspension Shackle ended leaf spring
Ashok Leyland Guru 1111 Truck Tyres
Tyres 8.25R20–16 PR
Radial tyres
6+1 tyres
Ashok Leyland Guru 1111 Truck Wheelbase
Wheelbase 3800 mm
4320 mm
4720 mm
Ashok Leyland Guru 1111 Truck Turning Circle Diameter
Turning Circle Diameter 13.65 m (3800 wb)
15.5 m (4320 mm)
16.93 m (4720 mm)
Ashok Leyland Guru 1111 Truck Overall Length
Overall Length 7408 mm (3800 wb)
8243 mm (4320 mm)
8893 mm (4720 mm)
Ashok Leyland Guru 1111 Truck Overall Width
Overall Width 2262 mm (Body)
2200 mm (Cabin)
Ashok Leyland Guru 1111 Truck Load Body Width
Load Body Width 2121 mm (7 ft)
Ashok Leyland Guru 1111 Truck Front Overhang
Front Overhang 1345 mm
Ashok Leyland Guru 1111 Truck Rear Overhang
Rear Overhang 2263 mm (3800 wb)
2578 mm (4320 mm)
2828 mm (4720 mm)
Ashok Leyland Guru 1111 Truck Front Track
Front Track 1893 mm
Ashok Leyland Guru 1111 Truck Rear Track
Rear Track 1690 mm
