Tata 709g LPT CNG Twin Tyre BS6 truck specifications

Name: Tata 709g LPT CNG Twin Tyre
Brand: Tata
SKU: TBN-20-67D1CA

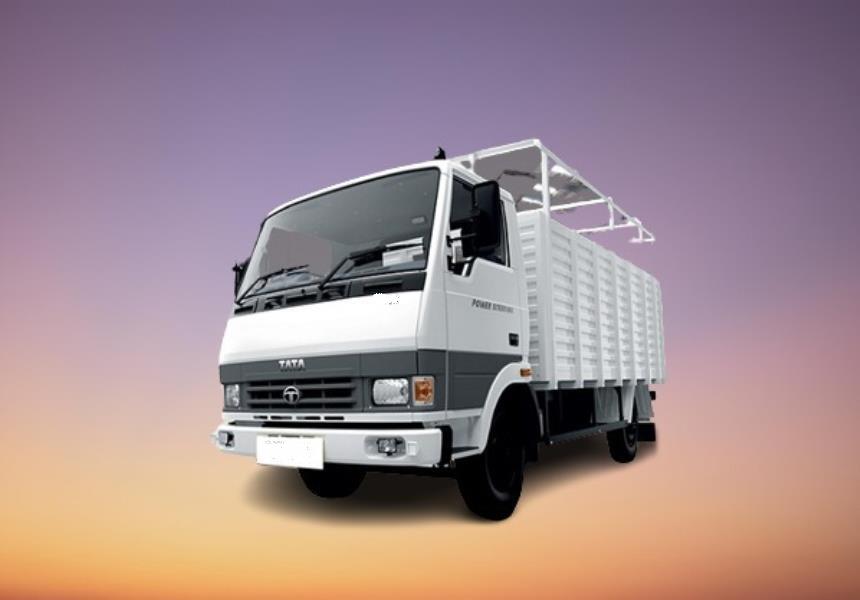

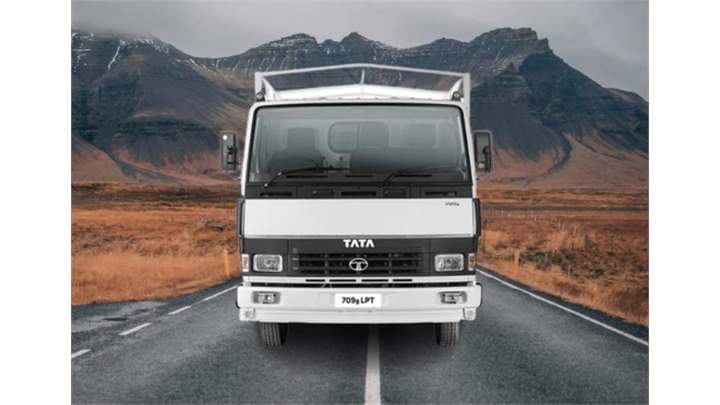

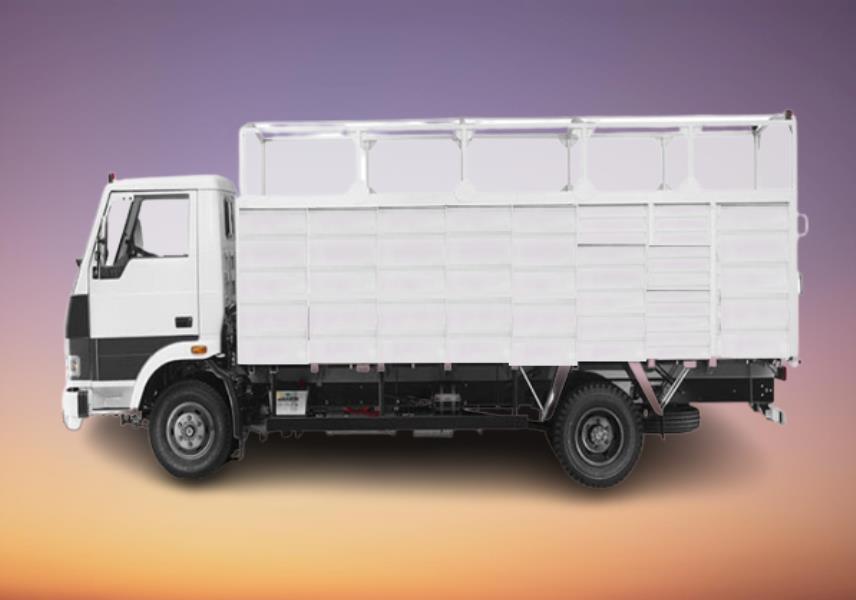

Tata 709g LPT CNG Twin Tyre Truck Images

Rate This Vehicle

From ₹ 17.64-18.71 Lakh*
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on Tata 709g LPT CNG Twin Tyre Truck for this month

Download Tata 709g LPT CNG Twin Tyre Truck Brochure

Check out the Tata 709g LPT CNG Twin Tyre Truck PDF brochure at TrucksBuses.com with all features and specifications.

Tata 709g LPT CNG Twin Tyre - 6 Tyre Truck Highlights

Power

GVW

7490 Kg

Fuel

CNG

Engine

3783 cc

Cylinders

Key Specifications of Tata 709g LPT CNG Twin Tyre Truck

Engine
Configuration

Tata 709g LPT CNG Twin Tyre Truck Engine
Engine
3.8L SGI
Naturally Aspirated
Tata 709g LPT CNG Twin Tyre Truck Engine Displacement
Engine Displacement
3783 cc
Tata 709g LPT CNG Twin Tyre Truck Engine Cylinders
Engine Cylinders
4
Tata 709g LPT CNG Twin Tyre Truck Power
Power
85 HP@2800 rpm
Tata 709g LPT CNG Twin Tyre Truck Torque
Torque
285 Nm@1200-1600 rpm
Tata 709g LPT CNG Twin Tyre Truck Clutch
Clutch
280 mm dia
Tata 709g LPT CNG Twin Tyre Truck Transmission
Transmission
5 speed (5F+1R)
Tata 709g LPT CNG Twin Tyre Truck Gearbox
Gearbox
GBS 27
Tata 709g LPT CNG Twin Tyre Truck Emission Norms Compliance
Emission Norms Compliance
BS6
Tata 709g LPT CNG Twin Tyre Truck Fuel Type
Fuel Type
CNG
Tata 709g LPT CNG Twin Tyre Truck Fuel Tank Capacity
Fuel Tank Capacity
300 Litres
Tata 709g LPT CNG Twin Tyre Truck Electricals Battery
Electricals Battery
12V, 75 Ah
Alternator: 65 Amps

Tata 709g LPT CNG Twin Tyre Truck GVW
GVW
7490 Kg
Tata 709g LPT CNG Twin Tyre Truck Vehicle Configuration
Vehicle Configuration
Cabin chassis with PTO
Cabin with load body
Tata 709g LPT CNG Twin Tyre Truck Load Body Options
Load Body Options
Fixed Side Deck
High Side Deck
Tata 709g LPT CNG Twin Tyre Truck Loading Span
Loading Span
17 ft
Tata 709g LPT CNG Twin Tyre Truck Cabin Type
Cabin Type
Day cab
Tata 709g LPT CNG Twin Tyre Truck Cabin Tilt mechanism
Cabin Tilt mechanism
Manually tiltable
Tata 709g LPT CNG Twin Tyre Truck Chassis Frame
Chassis Frame
Ladder type with cross members
Tata 709g LPT CNG Twin Tyre Truck Axle Configuration
Axle Configuration
4x2
Tata 709g LPT CNG Twin Tyre Truck Front Axle
Front Axle
Forged I Beam, Reverse Elliot Type
Tata 709g LPT CNG Twin Tyre Truck Rear Axle
Rear Axle
Banjo type
Tata 709g LPT CNG Twin Tyre Truck Front Suspension
Front Suspension
Semi elliptical leaf springs
With telescopic shock absorbers
Tata 709g LPT CNG Twin Tyre Truck Rear Suspension
Rear Suspension
Semi elliptical leaf springs
With telescopic shock absorbers
Tata 709g LPT CNG Twin Tyre Truck Tyres
Tyres
7.50x16 -16 PR
6+1 tyres
Tata 709g LPT CNG Twin Tyre Truck Wheelbase
Wheelbase
3800 mm
Tata 709g LPT CNG Twin Tyre Truck Turning Circle Diameter
Turning Circle Diameter
13.8 m
Tata 709g LPT CNG Twin Tyre Truck Ground Clearance
Ground Clearance
230 mm
Tata 709g LPT CNG Twin Tyre Truck Overall Length
Overall Length
7170 mm
Tata 709g LPT CNG Twin Tyre Truck Overall Width
Overall Width
2255 mm
Tata 709g LPT CNG Twin Tyre Truck Overall Height
Overall Height
2940 mm
Tata 709g LPT CNG Twin Tyre Truck Load Body Width
Load Body Width
2117 mm / 6.94 ft

Tata 709g LPT CNG Twin Tyre Truck Specification Highlights

Check all the Tata 709g LPT CNG Twin Tyre specifications on TrucksBuses in the table above The main driveline of this Tata truck includes a 3783 cc 4 cylinder engine that produces a maximum power of 85 HP and a torque of 285 Nm It gets mated to 5 speed (5F+1R), GBS 27 gearbox A gross weight of 7490 kg and multiple configurations allows the owner to carry multiple kinds of goods as per requirement There are multiple features in this Tata truck for enhancing driver comfort Other Tata 709g LPT CNG Twin Tyre truck specifications like chassis, tyre, axle, turning circle dia, engine cc, gradeability are available here in the tables above.
