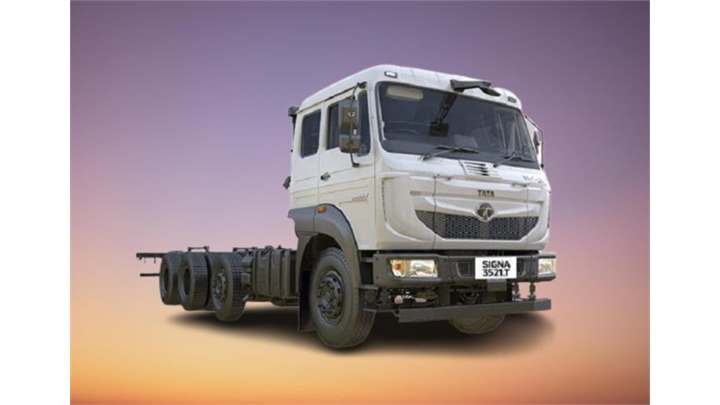

Tata Signa 3521.T BS6 truck specifications

Name: Tata Signa 3521.T
Brand: Tata
SKU: P-N-CecNxt

Rate This Vehicle

From ₹ 39.99-41.01 Lakh*
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on Tata Signa 3521.T Truck for this month

Download Tata Signa 3521.T Truck Brochure

Check out the Tata Signa 3521.T Truck PDF brochure at TrucksBuses.com with all features and specifications.

Tata Signa 3521.T - 12 Tyre Truck Highlights

Power

197

GVW

35000 Kg

Fuel

Diesel

Engine

5005 cc

Cylinders

Key Specifications of Tata Signa 3521.T Truck

Engine
Configuration

Tata Signa 3521.T Truck Engine
Engine
5L Turbotronn
Tata Signa 3521.T Truck Fuel Injection System
Fuel Injection System
Common Rail
Tata Signa 3521.T Truck Engine Displacement
Engine Displacement
5005 cc
Tata Signa 3521.T Truck Engine Cylinders
Engine Cylinders
4
Tata Signa 3521.T Truck Power
Power
197 HP@2300 rpm
Tata Signa 3521.T Truck Torque
Torque
850 Nm@1000-1600 rpm
Tata Signa 3521.T Truck Clutch
Clutch
380 mm dia
Organic
Tata Signa 3521.T Truck Transmission
Transmission
6 speed (6F+1R)
Tata Signa 3521.T Truck Gearbox
Gearbox
G950
Tata Signa 3521.T Truck Max Speed
Max Speed
80 Kmph
Tata Signa 3521.T Truck Emission Norms Compliance
Emission Norms Compliance
BS6
Tata Signa 3521.T Truck Fuel Type
Fuel Type
Diesel
Tata Signa 3521.T Truck Fuel Tank Capacity
Fuel Tank Capacity
365 Litres
Polymer tank
With anti-fuel theft

Tata Signa 3521.T Truck GVW
GVW
35000 Kg
Tata Signa 3521.T Truck Vehicle Configuration
Vehicle Configuration
Cabin and chassis
Cabin with load body
Tata Signa 3521.T Truck Load Body Options
Load Body Options
Fixed Side Deck
High Side Deck
Container
Tata Signa 3521.T Truck Loading Span
Loading Span
22 ft
24 ft
28 ft
32 ft
Tata Signa 3521.T Truck Cabin Type
Cabin Type
Sleeper cabin
Tata Signa 3521.T Truck Cabin Tilt mechanism
Cabin Tilt mechanism
Hydraulically tiltable
Tata Signa 3521.T Truck Chassis Frame
Chassis Frame
Ladder type straight frame
Tata Signa 3521.T Truck Axle Configuration
Axle Configuration
8x2
Tata Signa 3521.T Truck Front Axle
Front Axle
Forged I Beam, Reverse Elliot Type
With lift axle
Tata Signa 3521.T Truck Rear Axle
Rear Axle
Single reduction RA 110LD
RAR: 5.12
Tata Signa 3521.T Truck Front Suspension
Front Suspension
Front axle: Parabolic leaf springs
Pusher axle: Pneumatic Lift
Tata Signa 3521.T Truck Rear Suspension
Rear Suspension
Semi elliptical leaf springs
Bell crank
Tata Signa 3521.T Truck Tyres
Tyres
295/90R20 (Tube)
12+1 tyres
Tata Signa 3521.T Truck Wheelbase
Wheelbase
5205 mm
5505 mm
5905 mm
6750 mm
Tata Signa 3521.T Truck Turning Circle Diameter
Turning Circle Diameter
19.9 m (5205 wb)
21.5 m (5505 wb)
22.38 m (5905 wb)
23.2 m (6750 wb)
Tata Signa 3521.T Truck Overall Length
Overall Length
9290 mm (5205 wb)
9890 mm (5505 wb)
Tata Signa 3521.T Truck Overall Width
Overall Width
2440 mm
Tata Signa 3521.T Truck Overall Height
Overall Height
2745 mm
Tata Signa 3521.T Truck Front Overhang
Front Overhang
1515 mm
Tata Signa 3521.T Truck Rear Overhang
Rear Overhang
2570 mm (5205 wb)
2870 mm (5505 wb)
2505 mm (5905 wb)
3145 mm (6750 wb)
Tata Signa 3521.T Truck Front Track
Front Track
1964 mm
Tata Signa 3521.T Truck Rear Track
Rear Track
1817 mm
Tata Signa 3521.T Truck Chassis Depth
Chassis Depth
285 mm
Tata Signa 3521.T Truck Chassis Flange width
Chassis Flange width
65 mm
Tata Signa 3521.T Truck Chassis Thickness
Chassis Thickness
8.5 mm
7 mm (68 wb)

Tata Signa 3521.T Truck Specification Highlights

Check all the Tata Signa 3521.T specifications on TrucksBuses in the table above The main driveline of this Tata truck includes a 5005 cc 4 cylinder engine that produces a maximum power of 197 HP and a torque of 850 Nm It gets mated to 6 speed (6F+1R), G950 gearbox A gross weight of 35000 kg and multiple configurations allows the owner to carry multiple kinds of goods as per requirement There are multiple features in this Tata truck for enhancing driver comfort Other Tata Signa 3521.T truck specifications like chassis, tyre, axle, turning circle dia, engine cc, gradeability are available here in the tables above.
