Tata Ace Gold Petrol Cab specifications

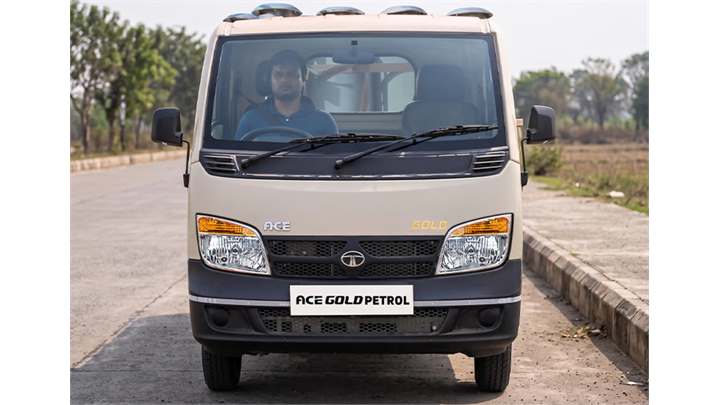

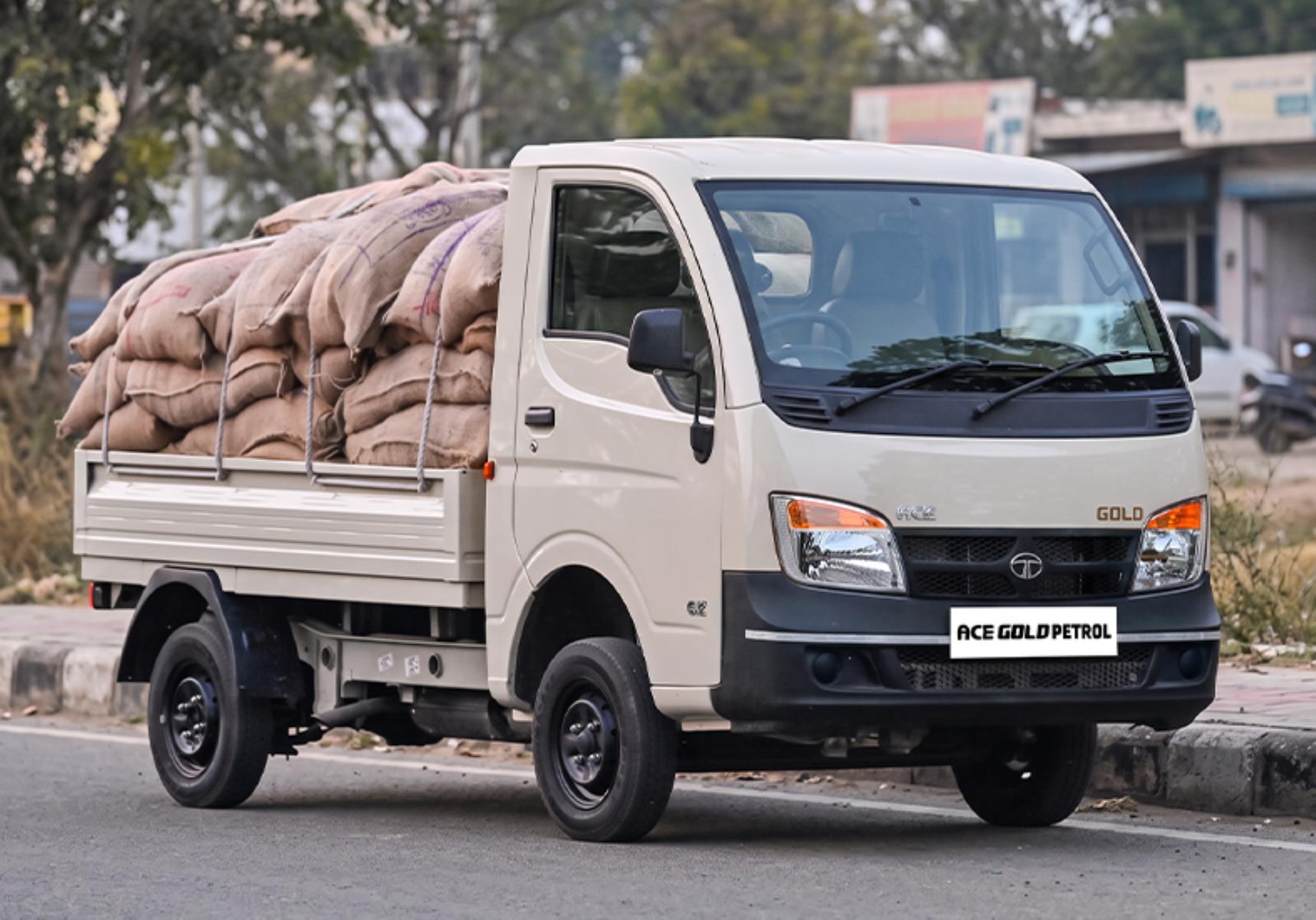

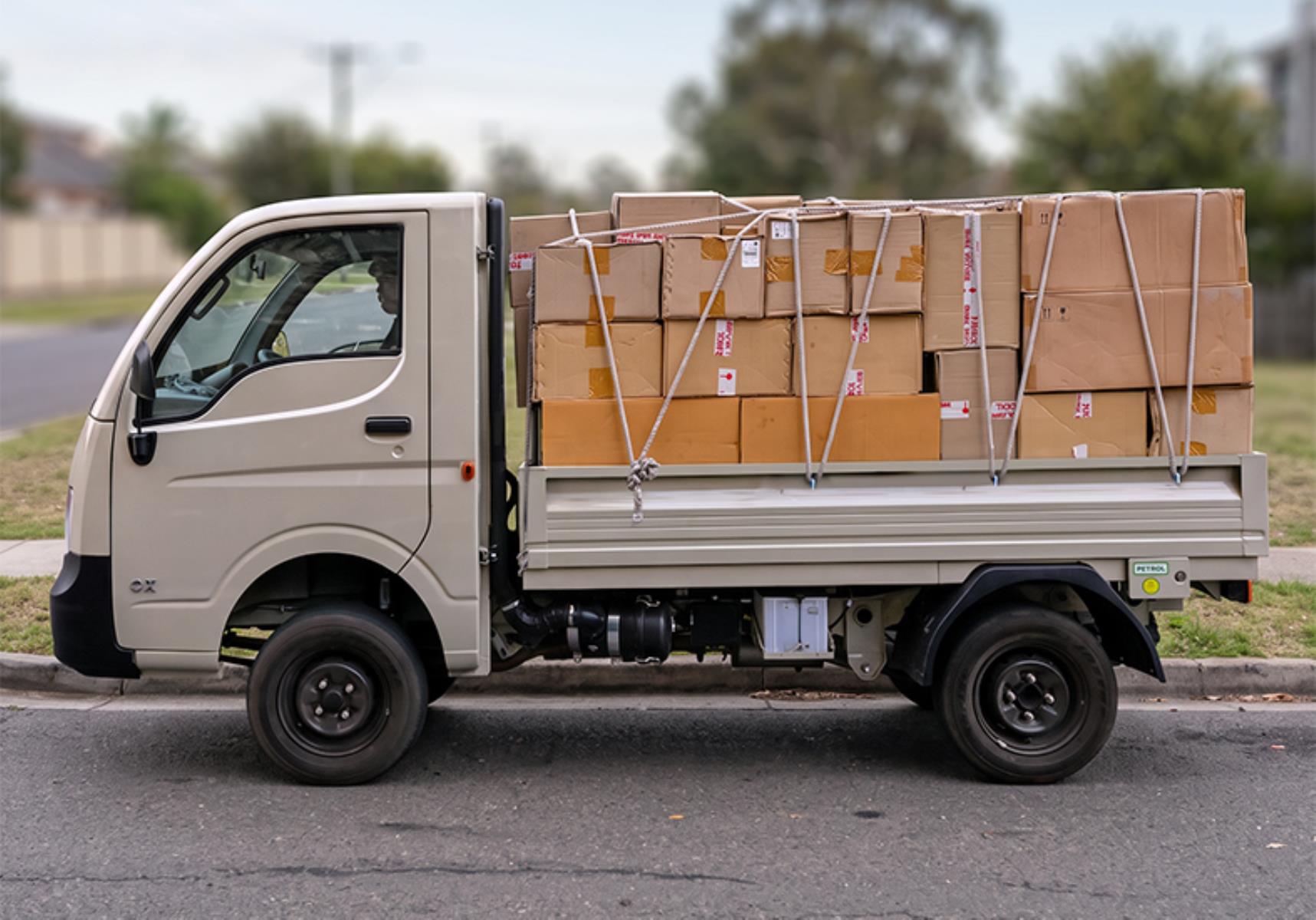

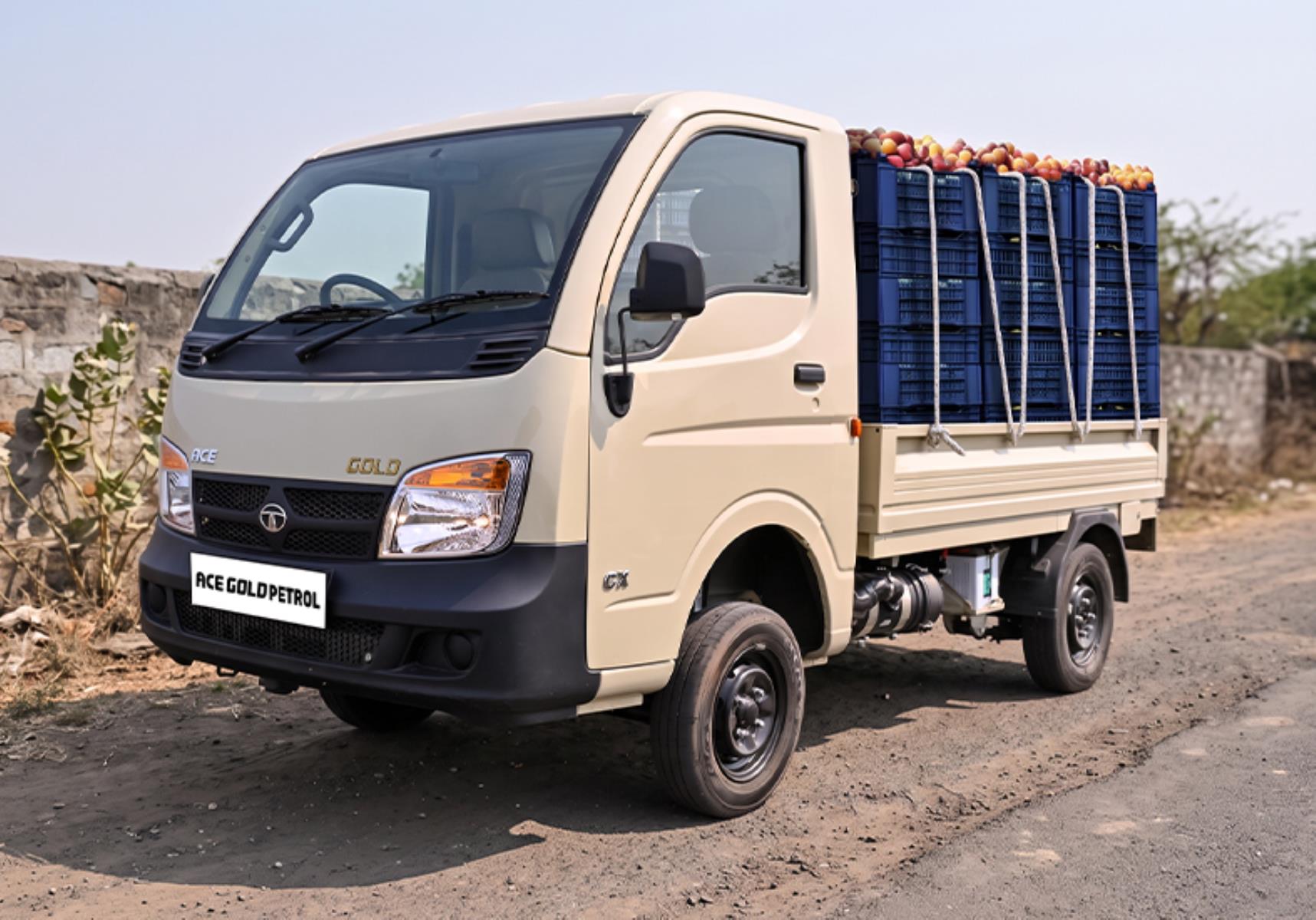

Tata Ace Gold Petrol Cab Mini Truck Images

Rate This Vehicle

From ₹ 4.94 Lakh* Onwards
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on Tata Ace Gold Petrol Cab Mini Truck for this month

Tata Ace Gold Petrol Cab - 4 Tyre Highlights

Power

GVW

1615 Kg

Fuel

Petrol

Engine

694 cc

Cylinders

Key Specifications of Tata Ace Gold Petrol Cab Mini Truck

Engine
Configuration

Tata Ace Gold Petrol Cab Mini Truck Engine
Engine
275 Gasoline MPFI; 4 Stroke Water cooled
Tata Ace Gold Petrol Cab Mini Truck Engine Displacement
Engine Displacement
694 cc
Tata Ace Gold Petrol Cab Mini Truck Engine Cylinders
Engine Cylinders
2
Tata Ace Gold Petrol Cab Mini Truck Power
Power
30 HP@4000 rpm
Tata Ace Gold Petrol Cab Mini Truck Torque
Torque
55 Nm
Tata Ace Gold Petrol Cab Mini Truck Clutch
Clutch
Single plate dry clutch
Tata Ace Gold Petrol Cab Mini Truck Transmission
Transmission
5 speed (5F+1R)
Tata Ace Gold Petrol Cab Mini Truck Gearbox
Gearbox
GBS 65 Synchromesh
Tata Ace Gold Petrol Cab Mini Truck Gradeability
Gradeability
30%
Tata Ace Gold Petrol Cab Mini Truck Max Speed
Max Speed
70 Kmph
Tata Ace Gold Petrol Cab Mini Truck Emission Norms Compliance
Emission Norms Compliance
BS6
Tata Ace Gold Petrol Cab Mini Truck Fuel Type
Fuel Type
Petrol
Tata Ace Gold Petrol Cab Mini Truck Fuel Tank Capacity
Fuel Tank Capacity
26 Litres

Tata Ace Gold Petrol Cab Mini Truck GVW
GVW
1615 Kg
Tata Ace Gold Petrol Cab Mini Truck Payload
Payload
750 Kg
Tata Ace Gold Petrol Cab Mini Truck Vehicle Configuration
Vehicle Configuration
Day Cabin with chassis
Tata Ace Gold Petrol Cab Mini Truck Seating Capacity
Seating Capacity
D+1
Tata Ace Gold Petrol Cab Mini Truck Axle Configuration
Axle Configuration
4x2
Tata Ace Gold Petrol Cab Mini Truck Front Suspension
Front Suspension
Rigid axle with parabolic leaf spring
Tata Ace Gold Petrol Cab Mini Truck Rear Suspension
Rear Suspension
Semi elliptical leaf spring
Tata Ace Gold Petrol Cab Mini Truck Anti Roll Bar
Anti Roll Bar
No
Tata Ace Gold Petrol Cab Mini Truck Tyres
Tyres
145 R12 LT- 8PR
Tata Ace Gold Petrol Cab Mini Truck Wheelbase
Wheelbase
2100 mm
Tata Ace Gold Petrol Cab Mini Truck Turning Circle Diameter
Turning Circle Diameter
8.6 m
Tata Ace Gold Petrol Cab Mini Truck Ground Clearance
Ground Clearance
160 mm
Tata Ace Gold Petrol Cab Mini Truck Overall Length
Overall Length
3800 mm
Tata Ace Gold Petrol Cab Mini Truck Overall Width
Overall Width
1500 mm
Tata Ace Gold Petrol Cab Mini Truck Overall Height
Overall Height
1840 mm
Tata Ace Gold Petrol Cab Mini Truck Front Track
Front Track
1300 mm
Tata Ace Gold Petrol Cab Mini Truck Rear Track
Rear Track
1320 mm

Tata Ace Gold Petrol Cab Mini Truck Specification Highlights

When it comes to Tata Ace Gold Petrol Cab specifications, we can break it up into engine performance-related parameters and configuration parameters. The Tata Ace Gold Petrol Cab comes equipped with 275 Gasoline MPFI; 4 Stroke water-cooled engine of 694 cc displacement. It comes with a 5-speed (5F+1R) gearbox to control its power transmission. This Tata Ace Gold Petrol Cab has a fuel tank capacity of 26 litres and can travel miles without refuelling. With a wheelbase of 2100 mm and an optimum 3800 mm overall vehicle length, the Tata Ace Gold Petrol Cab offers a superior body size. This Tata small commercial vehicle comes fitted with tyres of the size 145 r12 lt- 8pr offering a superior 160 mm ground clearance.
