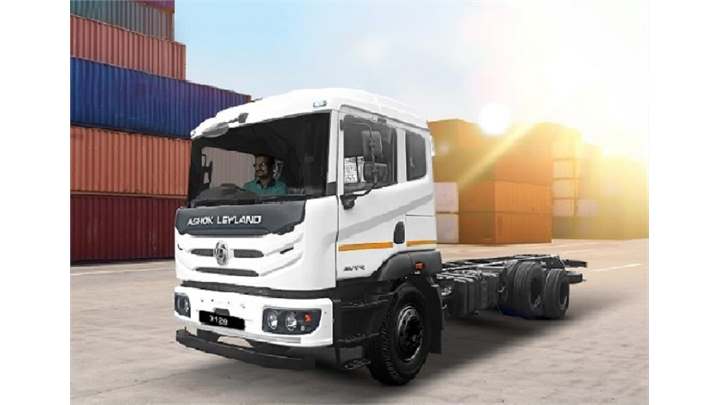

Ashok Leyland 3120 6x2 DTLA Truck GVW
GVW 31000 Kg
Ashok Leyland 3120 6x2 DTLA Truck Vehicle Configuration
Vehicle Configuration Cowl with Chassis
Cabin and chassis
Ashok Leyland 3120 6x2 DTLA Truck Loading Span
Loading Span 24 ft
27 ft
29 ft
31 ft
32 ft
Ashok Leyland 3120 6x2 DTLA Truck Cabin Type
Cabin Type Sleeper cabin
Ashok Leyland 3120 6x2 DTLA Truck Cabin Tilt mechanism
Cabin Tilt mechanism Hydraulically tiltable
Ashok Leyland 3120 6x2 DTLA Truck Chassis Frame
Chassis Frame Ladder type
Ashok Leyland 3120 6x2 DTLA Truck Axle Configuration
Axle Configuration 6x2
Ashok Leyland 3120 6x2 DTLA Truck Front Axle
Front Axle Forged I Beam, Reverse Elliot Type
Ashok Leyland 3120 6x2 DTLA Truck Rear Axle
Rear Axle Fully floating, Single speed
Unitized wheel bearings (optional)
Ashok Leyland 3120 6x2 DTLA Truck Front Suspension
Front Suspension Semi elliptical leaf springs
Parabolic leaf spring (Optional)
Ashok Leyland 3120 6x2 DTLA Truck Rear Suspension
Rear Suspension Semi elliptical leaf springs
Slipper ended suspension (optional)
Ashok Leyland 3120 6x2 DTLA Truck Tyres
Tyres 295/90R20
10+1 tyres
Ashok Leyland 3120 6x2 DTLA Truck Wheelbase
Wheelbase 4930 mm
5230 mm
5680 mm
5980 mm
Ashok Leyland 3120 6x2 DTLA Truck Turning Circle Diameter
Turning Circle Diameter 20.2 m (4930 wb)
22 m (5230 wb)
22.9 m (5680 wb)
24 m (5980 wb)
Ashok Leyland 3120 6x2 DTLA Truck Overall Length
Overall Length 9710 mm (4930 wb)
10360 mm (5230 wb)
10560 mm (5680 wb)
11960 mm (5980 wb)
Ashok Leyland 3120 6x2 DTLA Truck Overall Width
Overall Width 2570 mm
Ashok Leyland 3120 6x2 DTLA Truck Overall Height
Overall Height 2987 mm (M cabin)
3177 mm (N cabin)
Ashok Leyland 3120 6x2 DTLA Truck Front Track
Front Track 2084 mm
Ashok Leyland 3120 6x2 DTLA Truck Rear Track
Rear Track 1876 mm
Ashok Leyland 3120 6x2 DTLA Truck Chassis Depth
Chassis Depth 275 mm
Ashok Leyland 3120 6x2 DTLA Truck Chassis Flange width
Chassis Flange width 75 mm
Ashok Leyland 3120 6x2 DTLA Truck Chassis Thickness
Chassis Thickness 8 mm
